SPECsfs97.v2 Result

Network Appliance, Inc. :NetApp F210
SPECsfs97.v2 =1300 Ops/Sec (Overall Response Time = 3.27 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
981.9
1292.2
2602.3
3892.4
5202.7
6463.2
7783.6
9173.5
10053.9
10354.2
11774.7
12535.5
12766.3
12956.8
12976.9
13006.6

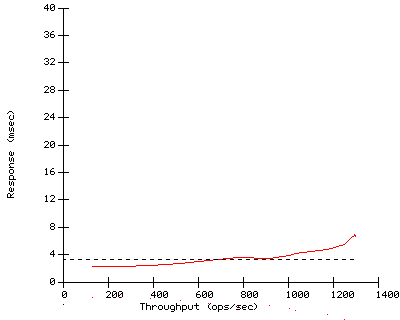

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available May 1997
Software AvailableDecember 1997
Date TestedNovember 1997
SFS License Number33
Licensee LocationsSanta Clara, CA

CPU, Memory and Power
Model Name NetApp F210
Processor 75Mhz Pentium
# of Processors 1
Primary Cache 8KBI+8KBD on chip
Secondary Cache 256KB(I+D) off chip
Other Cache n/a
UPS N/A
Other Hardware N/A
Memory Size 256 MB
NVRAM Size 8MB
NVRAM Type NVRAM SIMMs on PCI card
NVRAM Description6-month battery-backed shelf-life

Server Software
OS Name and VersionNetApp OS version 4.3 beta
Other Software N/A
File System WAFL
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes see notes
Fileset Size 13.5 GB

Network Subsystem
Network Type 100baseTX, full-duplex
Network Controller Desc. on motherboard
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type UDP

Switch Type Bay Networks 350T, all ports full-duplex
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 1
Number of Disks 14
Number of Filesystems 1
File System Creation Opsdefault
File System Config default

Disk Controller Dual-Channel Fast/Wide SCSI
# of Controller Type 1
Number of Disks 14 (2 X621 7-disk shelves)
Disk Type 4-GB Seagate Barracuda
File Systems on Disks F1
Special Config Notes N/A

Load Generator (LG) Configuration
Number of Load Generators 3
Number of Processes per LG3
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Sun Microsystems Ultra 1/170
Number and Type Processors1 167-MHz UltraSPARC
Memory Size 128MB
Operating System Solaris 2 version 2.5.1
Compiler gcc 2.6.3
Compiler Options see SPEC-supplied wrapper & makefile
Network Type 100baseT

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1
2LG1N1F1
3LG1N1F1


Other Notes


Wed Jan 28 10:21:12 1998
