SPECsfs97.v3 Result

Network Appliance, Inc. :	NetApp F820c Failover Cluster (UDP, 56x36GB FCAL, 2xGbE)
SPECsfs97.v3 =	14186 Ops/Sec (Overall Response Time = 1.55 msec)

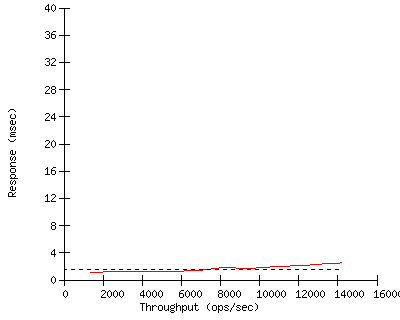

Performance

Throughput (ops/sec)	Response (msec)
1338	1.1
2687	1.2
4128	1.2
5425	1.3
6894	1.4
8163	1.8
9498	1.7
10934	2.0
12238	2.2
13546	2.4
13789	2.5
14053	2.5
14186	2.6

Configuration

Server Configuration and Availability
Vendor	Network Appliance, Inc.
Hardware Available	December 2000
Software Available	December 2000
Date Tested	February 2001
SFS License Number	33
Licensee Locations	Sunnyvale, CA

CPU, Memory and Power

Model Name NetApp F820c Failover Cluster (UDP, 56x36GB FCAL, 2xGbE)

Processor 733-MHz Intel Pentium III Coppermine

# of Processors 2 (1 per node)

Primary Cache 16 KB I + 16 KB D

Secondary Cache 256 KB on-die

Other Cache N/A

UPS none

Other Hardware X1901B cluster interconnect (see notes)

Memory Size 2048 MB (1024 MB per node)

NVRAM Size 256 MB (128 MB per node)

NVRAM Type DIMMs on PCI cards

NVRAM Description 15-day battery-backed shelf-life

Server Software

OS Name and Version Data ONTAP 6.0.1R1

Other Software Cluster Option

File System WAFL

NFS version 3

Server Tuning

Buffer Cache Size default

# NFS Processes N/A

Fileset Size 138.3 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	X1025B PCI adapter card
Number Networks	1 (N1)
Number Network Controllers	2 (1 per node)
Protocol Type	UDP

Switch Type Extreme Summit4

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 4

Number of Disks 56

Number of Filesystems 2

File System Creation Ops default

File System Config 3 RAID-groups of 9 disks each

Disk Controller X2040B FC-AL adapter card (128 KB RAM standard)

# of Controller Type 4

Number of Disks 7,7,7,7/7,7,7,7

Disk Type X231A 36GB FC-AL

File Systems on Disks F1/F2

Special Config Notes 2 primary controllers, 2 secondaries (see notes)

Load Generator (LG) Configuration
Number of Load Generators	8
Number of Processes per LG	4
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Intel ISP1100 Internet Server Platform

Number and Type Processors 1x700-MHz Pentium III

Memory Size 512 MB

Operating System Linux 2.2.14-5.0 (Red Hat 6.2)

Compiler egcs-2.91.66

Compiler Options -g -DNO_T_TYPES -DUSE_INTTYPES

Network Type integrated Intel Pro/100+ 100BASE-T

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/../8 LG1 N1 F1,F2 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/../8	LG1	N1	F1,F2	N/A

Other Notes

NetApp's embedded operating system processes NFS requests from the network layer without any NFS daemons, and uses non-volatile memory to improve performance.
The tested system was a failover cluster comprised of two nodes joined by a cluster interconnect.
The cluster option was licensed and enabled.
Each node was the owner of one filesystem, but the disks were dual-attached so that, in the event of a fault, they could be controlled by the other node via a secondary loop.
The F1 filesystem was built on the primary disk controller of the first node. The F2 filesystem was built on the primary disk controller of the second node.
Each filesystem was composed of three RAID-4 groups; each RAID-group was composed of 8 data disks and 1 parity disk. Two spare disks were present.
Server tunings:
options minra 1 -- minimize file read-ahead
date 0801 -- set clock to 8:01am for reproducibility
NetApp is a registered trademark and "Data ONTAP", "Network Appliance", and WAFL are trademarks of Network Appliance, Inc. in the United States and other countries.
All other trademarks belong to their respective owners and should be treated as such.

Tue Feb 20 15:16:52 2001

First published at SPEC.org on 20-Feb-2001
