SPECsfs97.v3 Result

EMC Corporation :	EMC CLARiiON IP4700, Cluster (UDP, GbE)
SPECsfs97.v3 =	11451 Ops/Sec (Overall Response Time = 3.15 msec)

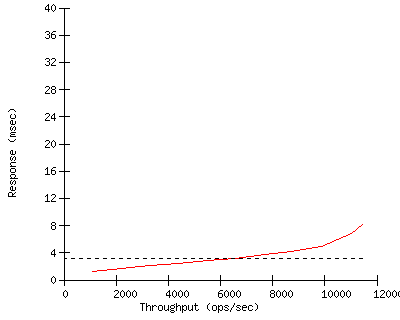

Performance

Throughput (ops/sec)	Response (msec)
1098	1.2
2197	1.7
3281	2.1
4374	2.5
5505	2.8
6584	3.2
7695	3.7
8716	4.2
9869	4.9
11014	6.8
11451	8.1

Configuration

Server Configuration and Availability
Vendor	EMC Corporation
Hardware Available	February 2001
Software Available	February 2001
Date Tested	November 2000
SFS License Number	00047
Licensee Locations	Westboro, MA

CPU, Memory and Power

Model Name EMC CLARiiON IP4700, Cluster (UDP, GbE)

Processor 733 MHz Intel

# of Processors 2 (1 per SP)

Primary Cache 16KBI+16KBD on chip

Secondary Cache 256KB

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 1.5 GB (750 MB per SP)

NVRAM Size 500 MB (250 MB per SP mirrored Write Cache)

NVRAM Type ECC Protected RIMMs

NVRAM Description Battery backup with storage on RAID-3 disk group

Server Software

OS Name and Version StackOS HA 1.1

Other Software N/A

File System HTFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes N/A

Fileset Size 117.0 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	Alteon ACEnic PCI Rev C
Number Networks	1 (N1)
Number Network Controllers	2 (1 per SP)
Protocol Type	UDP

Switch Type 3COM Super Stack II Switch 9300

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 2 (1 per SP)

Number of Disks 100

Number of Filesystems 18 (A1-A9,B1-B9)

File System Creation Ops default

File System Config default

Disk Controller IP4700 RAID Processor

# of Controller Type 1

Number of Disks 55

Disk Type Seagate ST336704 36GB 10000rpm

File Systems on Disks A1-A9 (45 disks)

Special Config Notes See Other Notes

Disk Controller IP4700 RAID Processor

# of Controller Type 1

Number of Disks 55

Disk Type Seagate ST336704 36GB 10000rpm

File Systems on Disks B1-B9 (45 disks)

Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators	5
Number of Processes per LG	18
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Sun Enterprise 450

Number and Type Processors 4 400MHz UltraSPARC

Memory Size 4 GB

Operating System Solaris 7

Compiler default binaries

Compiler Options N/A

Network Type Sun FastEthernet PCI (100BASE-T)

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1-5 LG1 N1 A1-A9, B1-B9 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1-5	LG1	N1	A1-A9, B1-B9	N/A

Other Notes

Disks were bound in 5 disk RAID-0 groups.
Each RAID group contained 1 of the File Systems under test.
An additional 9 disk RAID-5 group with 1 hot spare disk was accessible by both disk controllers, but not used in the test. The storage backup for the NVRAM also resides on these 9 disks in a special area.
The IP4700 Storage Processors are referred to as SPs (SPA & SPB).
Each SP controls half of the RAID Groups/filesystems (SPA: A1-A9, SPB: B1-B9). However, each SP can see the RAID Groups owned by its peer SP in order to facilitate failover. Failover is automatic should an SP fail.
Each SP has 1 Gb network port. Both network ports reside on the same subnet. This facilitates network port failover. Failover is automatic should a network port or SP fail.
Checksum offloading was enabled on the Alteon ACEnic adapters.

Wed Dec 13 11:56:03 2000

First published at SPEC.org on 12-Dec-2000

LG Type	LG1
LG Model	Sun Enterprise 450
Number and Type Processors	4 400MHz UltraSPARC
Memory Size	4 GB
Operating System	Solaris 7
Compiler	default binaries
Compiler Options	N/A
Network Type	Sun FastEthernet PCI (100BASE-T)
