SPECsfs97.v2 Result

Network Appliance, Inc. :	NetApp F840c Failover Cluster (UDP, 76x18GB FCAL, 2xGbE)
SPECsfs97.v2 =	25973 Ops/Sec (Overall Response Time = 1.55 msec)

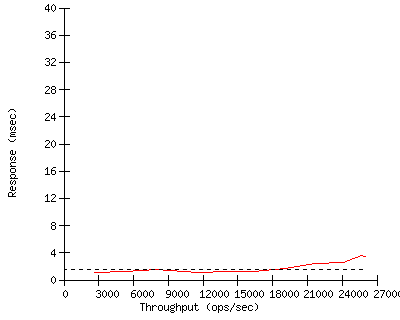

Performance

Throughput (ops/sec)	Response (msec)
2644	1.1
5302	1.2
7964	1.5
11561	1.1
14176	1.3
16340	1.3
19139	1.7
21603	2.4
24096	2.6
25659	3.6
25973	3.5

Configuration

Server Configuration and Availability
Vendor	Network Appliance, Inc.
Hardware Available	August 2000
Software Available	October 2000
Date Tested	August 2000
SFS License Number	33
Licensee Locations	Sunnyvale, CA

CPU, Memory and Power

Model Name NetApp F840c Failover Cluster (UDP, 76x18GB FCAL, 2xGbE)

Processor 733-MHz Intel Pentium III Coppermine

# of Processors 2 (1 per node)

Primary Cache 16 KB I + 16 KB D

Secondary Cache 256 KB on-die

Other Cache n/a

UPS none

Other Hardware X1900B cluster interconnect (see notes)

Memory Size 6144 MB (3072 MB per node)

NVRAM Size 256 MB (128 MB per node)

NVRAM Type DIMMs on PCI cards

NVRAM Description 15-day battery-backed shelf-life

Server Software

OS Name and Version Data ONTAP 5.3.7

Other Software Cluster Option

File System WAFL

NFS version 2

Server Tuning

Buffer Cache Size default

# NFS Processes n/a

Fileset Size 258.2 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	X1025B PCI adapter card
Number Networks	1 (N1)
Number Network Controllers	2 (1 per node)
Protocol Type	UDP

Switch Type Foundry Networks NetIron

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 8

Number of Disks 76 (twelve 7-bay JBOD shelves with 8 empty bays)

Number of Filesystems 2

File System Creation Ops default (checksum_blocks=on)

File System Config 2 RAID-groups; 18 disks per group

Disk Controller X2040B FC-AL adapter card (128 KB RAM standard)

# of Controller Type 8

Number of Disks 76

Disk Type X221 18GB FC-AL

File Systems on Disks F1,F2

Special Config Notes 4 primary controllers, 4 secondaries (see notes)

Load Generator (LG) Configuration
Number of Load Generators	10
Number of Processes per LG	8
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Intel ISP1100 Internet Server Platform

Number and Type Processors 1x700-MHz Pentium III

Memory Size 512 MB

Operating System Linux 2.2.5-14-5.0 (Red Hat 6.2)

Compiler egcs-2.91.66

Compiler Options -DNO_T_TYPES -DUSE_INTTYPES

Network Type integrated Intel Pro/100+ 100BASE-T

Testbed Configuration

LG # LG Type Network Target File Systems Notes

10 LG1 N1 F1,F2 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
10	LG1	N1	F1,F2	N/A

Other Notes

NetApp's embedded operating system processes NFS requests from the network layer without any NFS daemons, and uses non-volatile memory to improve performance.
Each filesystem was composed of two RAID-groups; each RAID-group was composed of 17 data disks and 1 parity disk. Four spare disks were present.
The F1 filesystem was striped across both primary disk controllers on the first node. The F2 filesystem was striped across both primary disk controllers on the second node.
Replaced "." with ".__" in svc.c line 399 of benchmark source, for portability.
Server tunings:
options nosnap 1 -- disable periodic Snapshot creation, for reproducibility
options autosupport.enable 0 -- disable autosupport e-mails, for SUT isolation
options raid.scrub.enable 0 -- disable periodic RAID scrubs, for reproducibility
options minra 1 -- minimize file read-ahead
The tested system was a failover cluster comprised of two nodes joined by a cluster interconnect.
Each node was the owner of one filesystem, but the disks were dual-attached so that, in the event of a fault, they could be controlled by the other node using a secondary loop.
Each RAID-group was on a distinct pair of FCAL loops: one primary and one secondary.
The cluster option was licensed an enabled.
NetApp is a registered trademark and "Data ONTAP", "Network Appliance", Snapshot, and WAFL are trademarks of Network Appliance, Inc. in the United States and other countries.
All other trademarks belong to their respective owners and should be treated as such.

Mon Sep 25 11:40:58 2000

First published at SPEC.org on 20-Sep-2000

LG Type	LG1
LG Model	Intel ISP1100 Internet Server Platform
Number and Type Processors	1x700-MHz Pentium III
Memory Size	512 MB
Operating System	Linux 2.2.5-14-5.0 (Red Hat 6.2)
Compiler	egcs-2.91.66
Compiler Options	-DNO_T_TYPES -DUSE_INTTYPES
Network Type	integrated Intel Pro/100+ 100BASE-T
