SPECsfs97.v2 Result

IBM Corporation :	RS/6000 Model 44P-170
SPECsfs97.v2 =	5550 Ops/Sec (Overall Response Time = 4.78 msec)

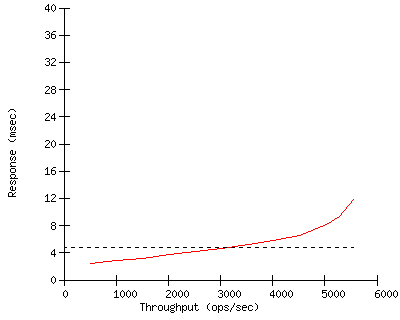

Performance

Throughput (ops/sec)	Response (msec)
500	2.4
1004	2.9
1510	3.2
2014	3.7
2515	4.2
3013	4.7
3530	5.2
4019	5.8
4518	6.5
5029	8.1
5285	9.4
5550	11.9

Configuration

Server Configuration and Availability
Vendor	IBM Corporation
Hardware Available	February 2000
Software Available	February 2000
Date Tested	January 2000
SFS License Number	11
Licensee Locations	Austin, Texas

CPU, Memory and Power

Model Name RS/6000 Model 44P-170

Processor 400MHz POWER3-II

# of Processors 1

Primary Cache 32KBI+64KBD on chip

Secondary Cache 4MB(I+D) off chip

Other Cache None

UPS N/A

Other Hardware N/A

Memory Size 1 GB

NVRAM Size N/A

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version AIX 4.3.3 plus APAR IY06844

Other Software N/A

File System JFS

NFS version 2

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 84

Fileset Size 53.2 GB

Network Subsystem
Network Type	Jumbo Frame Gigabit
Network Controller Desc.	Gigabit Ethernet-SX PCI Adapter
Number Networks	1 (N1)
Number Network Controllers	1
Protocol Type	UDP

Switch Type 1 Alteon ACEswitch 180 Ethernet Switch

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 2

Number of Disks 49

Number of Filesystems 42 (F1-F42)

File System Creation Ops default

File System Config See Other Notes

Disk Controller Wide/Ultra-2 SCSI I/O Controller

# of Controller Type 1

Number of Disks 1

Disk Type 9.1GB 7200rpm 16-bit SCSI (P/N 59H6816)

File Systems on Disks OS, page space

Special Config Notes N/A

Disk Controller IBM SSA 160 SerialRAID Adapter

# of Controller Type 1

Number of Disks 48

Disk Type 18.2GB 10000rpm SSA (P/N 34L6459)

File Systems on Disks F1-F42

Special Config Notes SSA adapters/disks configured in JBOD mode

Load Generator (LG) Configuration
Number of Load Generators	2
Number of Processes per LG	42
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model RS/6000 Model 43P-260

Number and Type Processors 2 200MHz POWER3

Memory Size 512MB

Operating System AIX 4.3.2

Compiler CSet++ 3.1.3

Compiler Options '-DSETPGRP_SYSV' and 'EXTRA_LINTFLAGS= -Nn6000 -Nd4000'

Network Type Gigabit Ethernet-SX PCI Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 N1 F1-F42 N/A

2 LG1 N1 F1-F42 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	N1	F1-F42	N/A
2	LG1	N1	F1-F42	N/A

Other Notes

There are 48 disks on the SSA disk controller used for 42 test filesystems.
8 disks per logical disk volume (6 logical disk volumes total): 1 disk
contains filesystem logs, and each of the other 7 contain filesystem data.
Using jumbo frames (9000-byte MTU) over Gigabit Ethernet.
Server tuning: Gigabit Ethernet adapter jumbo_frames=yes; vmtune -P 100,
vmtune -r 0 -R 0, nfs_server_base_priority=80, nfs_server_clread=0,
nfs_max_threads=84, nfs_socketsize=800000
Client tuning: Gigabit Ethernet adapter jumbo_frames=yes
APAR IY06844 required on AIX 4.3.3 (9/99 release) for hardware support.

Tue Feb 8 15:19:21 2000

First published at SPEC.org on 08-Feb-2000
