SPEC Seal of Reviewal SPECmail2001 Result
Copyright © 1999-2001 Standard Performance Evaluation Corporation
Intrastore 2001 - Redhat Linux 7.2 SPECmail2001 msgs/min = 2,500
SPEC license # 2018 Tested by:
Syntegra		 Test date:
Apr-2002		 Hardware Avail:
Aug-2001		 Software Avail:
Feb-2002

2,500 SPECmail2001 messages per minute is equivalent to 500,000 SPECmail2001_users.

Detail Summary | General Notes

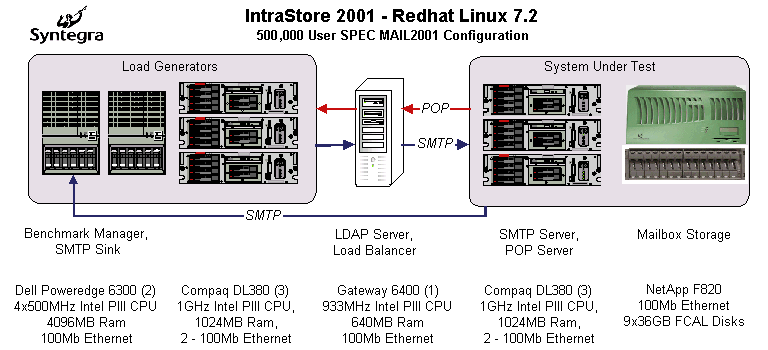

System configurations: SMTP Server + POP Server | Load Generator | Load Balancer + LDAP Server | Mail Sink + Benchmark Manager + Load Generator | Configuration diagram


Summary Results
Function Response
time limit
(seconds)		 Required
Percentage
Compliant		 Percentage Compliant
80% 100% 120%
SMTP Connect 5 >95% 99.98% 99.97% 99.96%
SMTP Data 5 >95% 100.00% 100.00% 100.00%
POP Connect 5 >95% 99.98% 99.98% 99.96%
POP Status 5 >95% 100.00% 100.00% 21.86%
POP Retrieve 5 >95% 100.00% 100.00% 19.91%
POP Delete 5 >95% 100.00% 100.00% 22.46%
Delivery Time 60 >95% 99.06% 99.15% 97.22%
Error Rate NA <1% 0.00% 0.00% 0.56%

SMTP Server + POP Server (3 systems)
Software
Software: Intrastore 2001 Operating System: Redhat Linux 7.2 (kernel 2.4.18)
Availability: Mar-2001 File System: EXT3
Hardware
Vendor: Compaq CPU: Pentium III
Model Name: DL380 CPU MHz: 1000
Availability: Jun-2001 CPUs Enabled: 1 core, 1 chip, 1 core/chip
Disk Subsystem: 2 x 18GB SCSI Primary Cache: 16KBI + 16KBD on chip
Memory (MB): 1024 Secondary Cache: 256KB
Network: Compaq NC3163 10/100 (2) Other Cache: N/A
# of Systems: 3 Other: Disks in RAID 1 config
Notes / Tuning Information
Second network card has dedicated route to NetApp

RAID-1 provided by integrated Compaq SmartArray controller

MSL is 30 seconds
TIMEWAIT is 60 seconds

SMTPserver options: -Ca -rt 900 -Cr 200 -CD -na -I SMTP-out -D syntegra.com -Sc 1000 -S
imsd options: -Vd -L /var/adm/imsd.log -tpool 50 -tmax 125

Load Generator (3 systems)
Software
JVM: Java HotSpot(TM) Client VM (build 1.4.0-b92, mixed mode) (no JIT) Operating System: Redhat Linux 7.2 (kernel 2.4.18)
Availability: Feb-2002 File System: EXT3
Hardware
Vendor: Compaq CPU: Pentium III
Model Name: DL380 CPU MHz: 1000
Availability: Jul-2001 CPUs Enabled: 1 core, 1 chip, 1 core/chip
Disk Subsystem: 2 x 18GB SCSI Primary Cache: 16KBI + 16KBD on chip
Memory (MB): 1024 Secondary Cache: 256KB
Network: Compaq NC3163 10/100 (2) Other Cache: N/A
# of Systems: 3 Other: Disks in RAID 1 config
Notes / Tuning Information


















Load Balancer + LDAP Server (1 system)







Software



 Software:
Aphelion 2001
Operating System:
Redhat Linux 7.2 (kernel 2.4.18)




Availability:
Mar-2001
File System:
EXT3











Hardware



Vendor:
Gateway
CPU:
Pentium III




Model Name:
6400
CPU MHz:
933




Availability:
Aug-2001
CPUs Enabled:
1 core, 1 chip, 1 core/chip




Disk Subsystem:
1 x 9GB SCSI
Primary Cache:
16KBI + 16KBD on chip




Memory (MB):
640
Secondary Cache:
256KB




Network:
Intel 10/100
Other Cache:
N/A




# of Systems:
1
Other:
N/A












Notes / Tuning Information






Load balancing was provided by the Linux Virtual Server Project found at www.linuxvirtualserver.org
SMTP and POP connections were load-balanced using a least-connection scheduling algorithm
Direct routing was used to route the load balanced connections between servers
The kernel was patched with ipvs-1.0.1 patch



















Mail Sink + Benchmark Manager + Load Generator (2 systems)







Software



JVM:
Java HotSpot(TM) Client VM (build 1.4.0-b92, mixed mode) (no JIT)
Operating System:
Redhat Linux 7.2 (kernel 2.4.18)




Availability:
Feb-2002
File System:
EXT3











Hardware



Vendor:
Dell
CPU:
Pentium III




Model Name:
Poweredge 6300
CPU MHz:
500




Availability:
Aug-1999
CPUs Enabled:
4 cores, 4 chips, 1 core/chip




Disk Subsystem:
1 x 9GB SCSI
Primary Cache:
16KBI + 16KBD on chip




Memory (MB):
1024
Secondary Cache:
512Kb




Network:
3Com 905c 100Mb
Other Cache:
N/A




# of Systems:
2
Other:
N/A












Notes / Tuning Information
























General Notes / Tuning Information





A Network Appliance F820 with 9 36GB drives in a single raid group
was used to store the mailboxes via NFS.
It was mounted with the NFS options: vers=3,tcp,noatime,wsize=32768,rsize=32768

Aphelion 2001 was used for the LDAP server.

Linux tuning paremeters:
echo 4096 >> /proc/sys/net/core/netdev_max_backlog
echo 2000000 >> /proc/sys/net/ipv4/tcp_max_tw_buckets
echo 0 >> /proc/sys/net/ipv4/tcp_window_scaling
echo 0 >> /proc/sys/net/ipv4/tcp_timestamps
echo 0 >> /proc/sys/net/ipv4/tcp_sack
echo 0 >> /proc/sys/net/ipv4/ip_forward

echo 1048576 >> /proc/sys/net/core/wmem_default
echo 1048576 >> /proc/sys/net/core/wmem_max
echo 1048576 >> /proc/sys/net/core/rmem_default
echo 1048576 >> /proc/sys/net/core/rmem_max

A 3Com 3300 switch (24 port 10/100Mb) was used for LAN connectivity.

Description of imsd options used:
-Vd  disable DNS lookup for clients
-L   name of an alternate debug log
-tpool minimum number of available processing threads (default = 16)
-tmax  maximum number of processing threads allowed (default = 16384)

Description of SMTPserver options used:
-Ca  host:service name of imsd administrative service
-rt  read timeout in seconds
-Cr  recipient number threshold causing queueing at low priority
-CD  enable automatic creation of mailbox directories
-na  Do not send AUTH
-I   name of the SMTP input queue (default is SMTP-in)
-D   limit delivery/relaying to allowed deliver/relay domains
-Sc  per client session threshold
-S   total session threshold
-ar  avoid reverse host address lookup









For questions about this result, please contact the tester.

For other inquiries, please contact
webmaster@spec.org

Copyright © 1999-2001 Standard Performance Evaluation Corporation



First published at SPEC.org on 22-May-2002


Benchmark run on Wed Apr 17 18:12:47 CDT 2002 by SPECmail2001 v1.01

Report generated on Mon Apr 25 17:25:12 EDT 2005 by SPECmail2001 v1.05 HTML Formatter
