SPECjbb

SPECjbb2000		SPECjbb2000 = 170127 ops/s
IBM Corporation IBM eServer p5 570
IBM Corporation J2RE 1.4.2 (32-bit) IBM AIX build cadev-20040528a

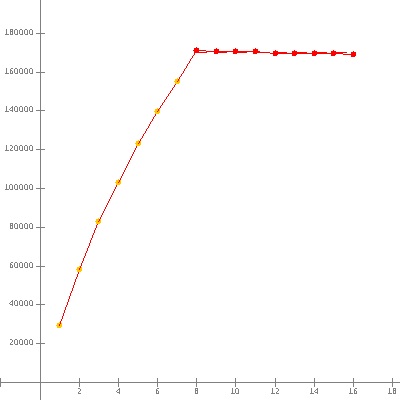

Warehouses	Ops/s	Incl. in metric
1	29285
2	58003
3	83029
4	102986
5	122975
6	139683
7	155431
8	171302	*
9	170873	*
10	170636	*
11	170607	*
12	169913	*
13	169572	*
14	169491	*
15	169603	*
16	169144	*
SPECjbb2000	(from 8 to 16)	170127 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: May 31, 2004

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer p5 570

Processor POWER5

MHz 1900

# of Procs 4 cores, 2 chips, 2 cores/chip (SMT On)

Memory (MB) 65536

Primary cache 64KBI+32KBD

Secondary cache 1920KB unified on-chip

Other cache 36MB unified off-chip/DCM, 2 DCMs/SUT

Filesystem JFS

Disks 1 x 36GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.4.2 (32-bit) IBM AIX build cadev-20040528a

JVM Command Line java -Xlp -Xcompactexplicitgc -Xgcpolicy:subpool -ms3072m -mx3072m spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 3072

JVM Maximum Heap Memory (MB) 3072

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /tmp/java/cadev-20040528a/jre/lib/core.jar:
/tmp/java/cadev-20040528a/jre/lib/graphics.jar:
/tmp/java/cadev-20040528a/jre/lib/security.jar:
/tmp/java/cadev-20040528a/jre/lib/server.jar:
/tmp/java/cadev-20040528a/jre/lib/xml.jar:
/tmp/java/cadev-20040528a/jre/lib/charsets.jar:
/tmp/java/cadev-20040528a/jre/classes:
/tmp/java/cadev-20040528a/jre/lib/ibmorbapi.jar:
/tmp/java/cadev-20040528a/jre/lib/ibmorb.jar:
/tmp/java/cadev-20040528a/jre/lib/ibmjsseprovider.jar:
/tmp/java/cadev-20040528a/jre/lib/ibmjssefips.jar:
/tmp/java/cadev-20040528a/jre/lib/ibmcertpathprovider.jar:
/tmp/java/cadev-20040528a/jre/lib/ibmjcefw.jar:
/tmp/java/cadev-20040528a/jre/lib/ibmjgssprovider.jar:
/tmp/java/cadev-20040528a/jre/lib/ibmpkcs.jar:
/tmp/java/cadev-20040528a/jre/lib/ibmjaaslm.jar

OS Version AIX 5L V5.3

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date May 31, 2004

H/w available Aug-2004

JVM available Jul-2004

OS available Aug-2004

Other s/w available

Tuning

Operating system tunings
vmo -o lgpg_regions=192 -o lgpg_size=16777216
vmo -o v_pinshm=1
smttune -s -A -1
setsched -S rr -P 40 -p $$
schedo -o timeslice=300
SPINLOOPTIME=1500

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	29285	3072	33.6	<0.01%	<0.01	new_order	1527998	67.5	<0.01
						payment	1527998	25.4	.047
						order_status	152800	2.25	<0.01
						delivery	152799	7.51	<0.01
						stock_level	152799	12.5	.047
2	58003	3072	55.4	.194%	<0.01	new_order	3026248	135	.090
						payment	3026252	51.3	.085
						order_status	302627	4.43	<0.01
						delivery	302625	15.1	<0.01
						stock_level	302624	24.8	.090
3	83029	3072	75.9	6.37%	<0.01	new_order	4331960	203	.069
						payment	4331961	74.5	.067
						order_status	433197	6.71	<0.01
						delivery	433196	23.9	<0.01
						stock_level	433196	37.6	.068
4	102986	3072	99.3	5.79%	<0.01	new_order	5373212	272	.077
						payment	5373211	98.9	.076
						order_status	537321	8.97	<0.01
						delivery	537321	31.8	<0.01
						stock_level	537320	50.4	.076
5	122975	3072	120	16.8%	<0.01	new_order	6416080	338	.066
						payment	6416082	124	.065
						order_status	641608	11.3	.063
						delivery	641609	40.1	.064
						stock_level	641607	63.4	.065
6	139683	3072	143	14.0%	<0.01	new_order	7287929	406	.075
						payment	7287925	149	.071
						order_status	728792	13.4	<0.01
						delivery	728794	48.8	<0.01
						stock_level	728796	75.8	.076
7	155431	3072	160	12.3%	<0.01	new_order	8109457	475	.078
						payment	8109466	173	.078
						order_status	810948	15.5	<0.01
						delivery	810945	57.4	.077
						stock_level	810944	88.5	.077
8	171302	3072	180	1.23%	1.86	new_order	9104111	551	.086
						payment	9104111	202	.086
						order_status	910413	18.7	.080
						delivery	910414	66.4	<0.01
						stock_level	910412	103	.086
9	170873	3072	199	25.8%	1.25	new_order	9026751	622	2.01
						payment	9026753	230	2.00
						order_status	902675	19.9	1.54
						delivery	902675	69.8	2.01
						stock_level	902677	113	2.01
10	170636	3072	218	31.3%	1.45	new_order	9031604	673	2.11
						payment	9031609	250	2.01
						order_status	903161	20.6	1.82
						delivery	903161	86.5	2.01
						stock_level	903158	141	2.11
11	170607	3072	236	38.3%	1.66	new_order	9048999	774	2.09
						payment	9049001	270	2.99
						order_status	904897	24.2	2.00
						delivery	904898	84.5	2.00
						stock_level	904902	145	2.09
12	169913	3072	253	30.9%	1.28	new_order	8978811	822	2.08
						payment	8978801	289	2.01
						order_status	897881	28.5	2.01
						delivery	897877	102	2.01
						stock_level	897879	167	2.08
13	169572	3072	271	32.1%	1.11	new_order	8945679	878	2.07
						payment	8945684	331	2.09
						order_status	894570	28.4	2.00
						delivery	894566	105	4.00
						stock_level	894568	191	2.07
14	169491	3072	287	34.4%	.508	new_order	8887866	917	2.10
						payment	8887867	392	3.14
						order_status	888785	26.9	2.00
						delivery	888784	98.1	2.01
						stock_level	888783	194	2.09
15	169603	3072	305	35.2%	.133	new_order	8860565	1007	2.05
						payment	8860569	377	2.90
						order_status	886057	25.4	2.00
						delivery	886054	98.8	2.04
						stock_level	886056	231	2.13
16	169144	3072	325	32.7%	1.67	new_order	8972009	1081	2.03
						payment	8972003	436	2.73
						order_status	897202	29.6	2.02
						delivery	897200	121	2.03
						stock_level	897200	224	2.01
