SPECjbb

SPECjbb2000		SPECjbb2000 = 231346 ops/s
IBM Corporation IBM eServer pSeries 680
IBM Corporation J2RE 1.3.1 IBM AIX 5L for PowerPC (64 bit JVM) plus APAR IY 26019

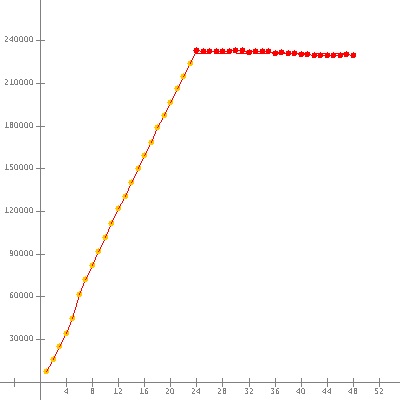

Warehouses	Ops/s	Incl. in metric
1	7956
2	16227
3	25309
4	34300
5	45138
6	61692
7	71915
8	81771
9	91950
10	101813
11	111742
12	121836
13	130782
14	140710
15	150319
16	159490
17	168783
18	178759
19	187735
20	196779
21	206121
22	214780
23	224069
24	233241	*
25	232125	*
26	232100	*
27	232687	*
28	232705	*
29	232648	*
30	232757	*
31	232771	*
32	231785	*
33	232531	*
34	232461	*
35	232488	*
36	230771	*
37	231861	*
38	230795	*
39	230856	*
40	230288	*
41	229967	*
42	229707	*
43	229938	*
44	229917	*
45	229803	*
46	229786	*
47	230023	*
48	229643	*
SPECjbb2000	(from 24 to 48)	231346 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Dec 4, 2001

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer pSeries 680

Processor RS64 IV

MHz 600

# of Procs 24 cores, 24 chips, 1 core/chip

Memory (MB) 32768

Primary cache 128KBI+128KBD on chip

Secondary cache 16MB(I+D) off chip

Other cache

Filesystem JFS

Disks 1x18.2GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.3.1 IBM AIX 5L for PowerPC (64 bit JVM) plus APAR IY 26019

JVM Command Line java -ms20480m -mx20480m -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 20480

JVM Maximum Heap Memory (MB) 20480

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /java/caix641311-20011123a/jre/lib/rt.jar:
/java/caix641311-20011123a/jre/lib/i18n.jar:
/java/caix641311-20011123a/jre/classes

OS Version AIX 5L V5.1 plus APAR IY 22854

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Dec 4, 2001

H/w available Oct-2000

JVM available Mar-2002

OS available Dec-2001

Other s/w available

Tuning

Operating system tunings
SPINLOOPTIME=500
setsched -S rr -P 40 -p $$
schedtune -F 1 -t 400

Notes

IY 22854: Support for New Hardware
IY 26019: Performance Enhancements

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	7956	20484	83.7	<0.01%	<0.01	new_order	415126	69.1	<0.01
						payment	415129	22.2	<0.01
						order_status	41513	2.03	<0.01
						delivery	41512	6.23	<0.01
						stock_level	41513	17.0	<0.01
2	16227	20484	130	.111%	<0.01	new_order	846678	139	<0.01
						payment	846675	44.1	<0.01
						order_status	84669	4.16	<0.01
						delivery	84667	13.0	<0.01
						stock_level	84667	32.7	<0.01
3	25309	20484	178	.381%	.173	new_order	1322754	210	<0.01
						payment	1322750	66.8	<0.01
						order_status	132276	6.35	<0.01
						delivery	132275	20.1	<0.01
						stock_level	132275	47.3	<0.01
4	34300	20484	225	.720%	.022	new_order	1789974	279	<0.01
						payment	1789973	90.1	<0.01
						order_status	178996	8.76	<0.01
						delivery	179000	27.1	<0.01
						stock_level	178996	60.8	<0.01
5	45138	20484	132	1.83%	<0.01	new_order	2355018	350	.244
						payment	2355025	116	.240
						order_status	235502	11.3	<0.01
						delivery	235502	35.4	<0.01
						stock_level	235504	69.7	.243
6	61692	20484	158	4.41%	<0.01	new_order	3218989	411	.232
						payment	3218992	145	<0.01
						order_status	321897	14.8	<0.01
						delivery	321900	46.3	<0.01
						stock_level	321897	79.3	<0.01
7	71915	20484	181	3.84%	<0.01	new_order	3752192	478	.237
						payment	3752191	171	.239
						order_status	375218	17.5	<0.01
						delivery	375218	53.4	<0.01
						stock_level	375219	93.1	.236
8	81771	20484	202	4.02%	<0.01	new_order	4266554	544	.244
						payment	4266546	196	<0.01
						order_status	426654	20.0	<0.01
						delivery	426654	61.9	<0.01
						stock_level	426657	107	.245
9	91950	20484	225	3.47%	<0.01	new_order	4797541	613	.254
						payment	4797521	220	.254
						order_status	479754	22.6	<0.01
						delivery	479752	69.1	<0.01
						stock_level	479751	119	.254
10	101813	20484	246	4.15%	<0.01	new_order	5312380	680	.262
						payment	5312377	245	.261
						order_status	531235	24.9	<0.01
						delivery	531238	77.3	<0.01
						stock_level	531236	133	.262
11	111742	20484	275	4.76%	<0.01	new_order	5830506	749	.269
						payment	5830503	270	.268
						order_status	583047	27.3	<0.01
						delivery	583049	84.8	<0.01
						stock_level	583049	146	.269
12	121836	20484	295	4.42%	<0.01	new_order	6356812	815	.271
						payment	6356812	297	.270
						order_status	635681	29.8	<0.01
						delivery	635677	92.2	<0.01
						stock_level	635680	158	.270
13	130782	20484	316	4.39%	<0.01	new_order	6823863	882	.287
						payment	6823860	323	.286
						order_status	682386	32.7	<0.01
						delivery	682390	100	.271
						stock_level	682386	172	.288
14	140710	20484	343	4.11%	<0.01	new_order	7341898	952	.294
						payment	7341891	347	.293
						order_status	734190	35.2	<0.01
						delivery	734191	107	<0.01
						stock_level	734189	184	.292
15	150319	20484	366	3.95%	<0.01	new_order	7843402	1015	.298
						payment	7843388	373	.298
						order_status	784336	37.8	.285
						delivery	784339	114	<0.01
						stock_level	784338	202	.299
16	159490	20484	387	3.77%	<0.01	new_order	8321678	1083	.304
						payment	8321695	397	.304
						order_status	832168	39.9	.290
						delivery	832173	122	.289
						stock_level	832173	215	.305
17	168783	20484	412	3.84%	<0.01	new_order	8806773	1152	.312
						payment	8806789	422	.311
						order_status	880679	42.4	<0.01
						delivery	880680	130	.312
						stock_level	880679	226	.312
18	178759	20484	433	4.56%	<0.01	new_order	9326892	1220	.323
						payment	9326887	449	.322
						order_status	932686	45.1	.315
						delivery	932688	138	.323
						stock_level	932685	239	.323
19	187735	20484	458	4.05%	<0.01	new_order	9795184	1288	.328
						payment	9795165	472	.327
						order_status	979515	47.4	<0.01
						delivery	979513	147	<0.01
						stock_level	979514	252	.328
20	196779	20484	483	4.19%	<0.01	new_order	10267415	1354	.333
						payment	10267421	499	.332
						order_status	1026742	49.9	<0.01
						delivery	1026745	154	.317
						stock_level	1026741	267	.333
21	206121	20484	506	4.34%	<0.01	new_order	10755156	1424	.347
						payment	10755137	523	.347
						order_status	1075516	52.4	.319
						delivery	1075515	160	.319
						stock_level	1075511	278	.347
22	214780	20484	524	4.29%	<0.01	new_order	11206170	1488	.350
						payment	11206184	549	.349
						order_status	1120618	54.7	<0.01
						delivery	1120614	168	.340
						stock_level	1120620	294	.350
23	224069	20484	547	4.41%	<0.01	new_order	11690673	1557	.355
						payment	11690668	574	.354
						order_status	1169075	57.7	<0.01
						delivery	1169064	176	<0.01
						stock_level	1169064	305	.355
24	233241	20484	572	4.15%	.350	new_order	12211709	1628	.359
						payment	12211708	600	.359
						order_status	1221171	59.6	<0.01
						delivery	1221163	185	.359
						stock_level	1221171	325	.359
25	232125	20484	592	5.31%	.261	new_order	12142456	1696	2.01
						payment	12142461	623	2.01
						order_status	1214248	62.6	.379
						delivery	1214248	190	2.01
						stock_level	1214247	338	.890
26	232100	20484	616	6.44%	.878	new_order	12215847	1784	2.61
						payment	12215838	644	2.11
						order_status	1221584	65.5	1.24
						delivery	1221581	192	.878
						stock_level	1221585	362	2.61
27	232687	20484	637	6.74%	.313	new_order	12178236	1837	3.25
						payment	12178224	677	2.68
						order_status	1217822	68.4	2.10
						delivery	1217825	202	1.53
						stock_level	1217818	367	1.86
28	232705	20484	653	5.47%	.796	new_order	12237767	1915	2.23
						payment	12237762	704	2.23
						order_status	1223776	73.4	1.50
						delivery	1223781	208	1.50
						stock_level	1223775	379	1.96
29	232648	20484	676	6.35%	.594	new_order	12210298	1974	2.75
						payment	12210287	726	2.75
						order_status	1221026	68.1	1.81
						delivery	1221031	214	2.42
						stock_level	1221025	406	2.75
30	232757	20484	697	7.62%	.627	new_order	12219908	2020	2.88
						payment	12219922	761	1.86
						order_status	1221994	77.7	2.24
						delivery	1221992	239	2.72
						stock_level	1221997	410	2.24
31	232771	20484	718	12.4%	.218	new_order	12171028	2136	3.79
						payment	12170978	739	3.79
						order_status	1217092	79.4	2.81
						delivery	1217102	228	2.79
						stock_level	1217097	432	2.80
32	231785	20484	738	6.88%	.844	new_order	12195219	2198	2.80
						payment	12195240	784	2.79
						order_status	1219531	88.6	2.77
						delivery	1219525	237	2.59
						stock_level	1219529	448	2.80
33	232531	20484	748	11.0%	1.06	new_order	12260953	2226	2.28
						payment	12260940	835	2.27
						order_status	1226094	77.1	1.73
						delivery	1226092	265	2.22
						stock_level	1226093	479	2.37
34	232461	20484	777	11.1%	1.34	new_order	12291045	2330	3.71
						payment	12291043	893	3.71
						order_status	1229105	73.2	2.25
						delivery	1229109	248	2.93
						stock_level	1229108	453	3.63
35	232488	20484	800	7.79%	.570	new_order	12198926	2386	3.80
						payment	12198950	887	3.98
						order_status	1219886	74.8	2.01
						delivery	1219895	253	3.26
						stock_level	1219891	489	2.96
36	230771	20484	816	12.3%	2.07	new_order	12289157	2465	4.00
						payment	12289166	916	3.99
						order_status	1228915	77.9	2.20
						delivery	1228917	305	4.00
						stock_level	1228918	499	4.00
37	231861	20484	836	8.65%	.945	new_order	12211431	2515	3.49
						payment	12211438	941	3.49
						order_status	1221142	75.4	2.59
						delivery	1221144	293	2.87
						stock_level	1221140	517	3.12
38	230795	20484	851	12.7%	1.61	new_order	12234954	2559	3.75
						payment	12234977	969	3.76
						order_status	1223500	98.3	2.72
						delivery	1223502	266	3.60
						stock_level	1223494	573	4.11
39	230856	20484	871	19.5%	1.58	new_order	12234963	2587	3.99
						payment	12234940	999	3.92
						order_status	1223498	99.6	3.33
						delivery	1223494	315	5.02
						stock_level	1223495	595	4.39
40	230288	20484	903	16.0%	1.40	new_order	12183340	2715	4.05
						payment	12183330	1058	3.51
						order_status	1218339	100	3.03
						delivery	1218333	272	3.12
						stock_level	1218341	586	4.82
41	229967	20484	933	17.4%	1.61	new_order	12191220	2771	4.42
						payment	12191235	1068	4.89
						order_status	1219123	101	2.93
						delivery	1219121	257	3.31
						stock_level	1219126	639	5.25
42	229707	20484	939	26.3%	.588	new_order	12055218	2798	5.39
						payment	12055196	1107	4.00
						order_status	1205525	88.2	2.88
						delivery	1205518	264	4.00
						stock_level	1205517	653	4.00
43	229938	20484	957	20.4%	1.42	new_order	12167193	2940	5.14
						payment	12167213	1127	4.00
						order_status	1216724	97.4	2.92
						delivery	1216719	287	3.62
						stock_level	1216721	642	5.02
44	229917	20484	981	18.7%	.428	new_order	12047032	2866	4.65
						payment	12047028	1095	4.31
						order_status	1204705	102	4.00
						delivery	1204703	328	4.51
						stock_level	1204696	750	4.92
45	229803	20484	1006	22.2%	2.89	new_order	12336298	3051	6.20
						payment	12336291	1166	4.01
						order_status	1233631	113	3.57
						delivery	1233634	319	4.00
						stock_level	1233632	738	4.01
46	229786	20484	1028	22.6%	2.06	new_order	12235200	3020	4.75
						payment	12235215	1249	4.73
						order_status	1223518	91.9	3.20
						delivery	1223523	340	3.85
						stock_level	1223522	759	5.81
47	230023	20484	1046	22.9%	5.97	new_order	12718058	3242	5.75
						payment	12718060	1361	6.75
						order_status	1271801	117	4.00
						delivery	1271806	322	4.01
						stock_level	1271802	770	6.54
48	229643	20484	1053	23.3%	.249	new_order	12011255	3067	6.49
						payment	12011242	1255	6.36
						order_status	1201126	112	5.93
						delivery	1201123	323	4.01
						stock_level	1201123	826	4.01
