SPECjbb

SPECjbb2000		SPECjbb2000 = 51565 ops/s
IBM Corporation IBM eServer pSeries 680
IBM Corporation J2RE 1.3.0 IBM build (JIT enabled: jitc)

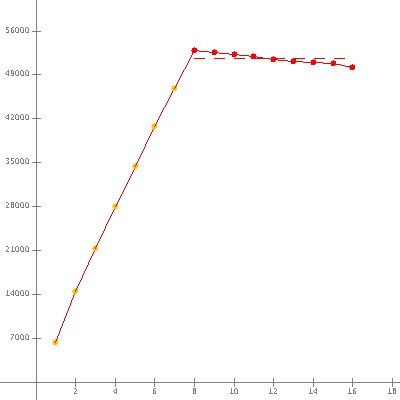

Warehouses	Ops/s	Incl. in metric
1	6403
2	14405
3	21276
4	28051
5	34459
6	40712
7	46886
8	52927	*
9	52524	*
10	52186	*
11	51878	*
12	51403	*
13	51198	*
14	50968	*
15	50779	*
16	50225	*
SPECjbb2000	(from 8 to 16)	51565 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: May 14, 2001

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer pSeries 680

Processor RS64 IV

MHz 600

# of Procs 8 cores, 8 chips, 1 core/chip

Memory (MB) 16384

Primary cache 128KB(I)+128KB(D) on chip

Secondary cache 16MB(I+D) off chip

Other cache None

Filesystem JFS

Disks 1 x 9.1GB SCSI

Other hardware None

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.3.0 IBM build (JIT enabled: jitc)

JVM Command Line java -ms2558m -mx2558m -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 2558

JVM Maximum Heap Memory (MB) 2558

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /bench/ca130-20010330/jre/lib/rt.jar:
/bench/ca130-20010330/jre/lib/i18n.jar:
/bench/ca130-20010330/jre/classes

OS Version AIX 4.3.3

System state normal

Other software None

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date May 14, 2001

H/w available Oct-2000

JVM available Jul-2001

OS available Apr-2001

Other s/w available None

Tuning

Operating system tunings
SPINLOOPTIME=2000
LDR_CNTRL=MAXDATA=0

Notes

"APAR IY16465 was applied to AIX 4.3.3 to enable new hardware support"

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	6403	2558	28.1	<0.01%	<0.01	new_order	334101	69.8	<0.01
						payment	334104	23.2	<0.01
						order_status	33410	2.24	<0.01
						delivery	33411	5.18	<0.01
						stock_level	33411	12.3	.488
2	14405	2558	46.7	3.21%	<0.01	new_order	751625	142	.520
						payment	751624	47.5	<0.01
						order_status	75162	4.61	<0.01
						delivery	75163	12.4	.521
						stock_level	75162	22.3	.525
3	21276	2558	64.3	2.68%	<0.01	new_order	1110143	213	.538
						payment	1110141	71.4	<0.01
						order_status	111015	6.94	<0.01
						delivery	111016	17.0	<0.01
						stock_level	111015	34.9	.539
4	28051	2558	82.7	2.63%	<0.01	new_order	1463664	286	.565
						payment	1463663	95.7	.565
						order_status	146366	9.13	<0.01
						delivery	146365	22.2	<0.01
						stock_level	146365	45.5	.565
5	34459	2558	99.9	2.77%	<0.01	new_order	1797932	357	.588
						payment	1797937	121	.588
						order_status	179794	11.4	<0.01
						delivery	179793	28.8	.586
						stock_level	179794	55.0	.596
6	40712	2558	121	2.80%	<0.01	new_order	2124260	427	.615
						payment	2124260	146	.615
						order_status	212427	13.6	<0.01
						delivery	212427	33.7	.014
						stock_level	212427	67.7	.618
7	46886	2558	137	2.87%	<0.01	new_order	2446415	502	.628
						payment	2446419	166	.627
						order_status	244642	16.6	.627
						delivery	244639	39.3	.609
						stock_level	244639	78.4	.636
8	52927	2558	157	2.35%	<0.01	new_order	2761652	577	.656
						payment	2761653	192	.656
						order_status	276165	17.6	<0.01
						delivery	276166	44.8	.635
						stock_level	276166	93.3	.661
9	52524	2558	172	9.43%	<0.01	new_order	2740593	648	.669
						payment	2740597	219	.666
						order_status	274059	20.7	.659
						delivery	274059	51.1	.638
						stock_level	274060	101	.803
10	52186	2558	189	5.77%	<0.01	new_order	2722939	716	.773
						payment	2722934	240	.679
						order_status	272297	23.8	.801
						delivery	272294	55.2	.212
						stock_level	272296	123	.683
11	51878	2558	206	8.16%	<0.01	new_order	2706709	782	.829
						payment	2706721	273	.781
						order_status	270670	24.5	.232
						delivery	270672	58.9	.679
						stock_level	270671	134	.761
12	51403	2558	222	6.38%	<0.01	new_order	2681975	849	.885
						payment	2681975	293	.871
						order_status	268196	26.5	.321
						delivery	268195	64.8	.709
						stock_level	268196	156	.811
13	51198	2558	237	7.50%	.010	new_order	2671481	915	.837
						payment	2671478	324	.782
						order_status	267149	29.9	.724
						delivery	267146	72.0	.770
						stock_level	267150	164	.852
14	50968	2558	255	2.80%	<0.01	new_order	2659296	996	.820
						payment	2659282	339	.778
						order_status	265927	31.3	.245
						delivery	265923	77.2	.861
						stock_level	265930	177	.781
15	50779	2558	271	4.01%	<0.01	new_order	2649496	1067	.884
						payment	2649494	369	.835
						order_status	264947	35.4	.752
						delivery	264952	83.7	.771
						stock_level	264953	181	.768
16	50225	2558	286	3.78%	.328	new_order	2628985	1137	.908
						payment	2629004	384	.832
						order_status	262902	38.0	.733
						delivery	262899	91.1	.759
						stock_level	262897	197	.842
