SPECjbb

SPECjbb2000		SPECjbb2000 = 71303 ops/s
IBM Corporation IBM eServer pSeries 680
IBM Corporation J2RE 1.3.0 IBM build (JIT enabled: jitc)

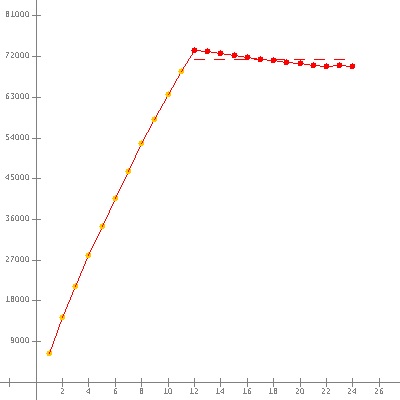

Warehouses	Ops/s	Incl. in metric
1	6354
2	14318
3	21169
4	27965
5	34379
6	40629
7	46723
8	52852
9	58186
10	63626
11	68780
12	73415	*
13	73101	*
14	72691	*
15	72202	*
16	71757	*
17	71434	*
18	71162	*
19	70757	*
20	70388	*
21	70116	*
22	69889	*
23	70157	*
24	69870	*
SPECjbb2000	(from 12 to 24)	71303 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: May 13, 2001

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer pSeries 680

Processor RS64 IV

MHz 600

# of Procs 12 cores, 12 chips, 1 core/chip

Memory (MB) 16384

Primary cache 128KB(I)+128KB(D) on chip

Secondary cache 16MB(I+D) off chip

Other cache None

Filesystem JFS

Disks 1 x 9.1GB SCSI

Other hardware None

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.3.0 IBM build (JIT enabled: jitc)

JVM Command Line java -ms2558m -mx2558m -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 2558

JVM Maximum Heap Memory (MB) 2558

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /bench/ca130-20010330/jre/lib/rt.jar:
/bench/ca130-20010330/jre/lib/i18n.jar:
/bench/ca130-20010330/jre/classes

OS Version AIX 4.3.3

System state normal

Other software None

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date May 13, 2001

H/w available Oct-2000

JVM available Jul-2001

OS available Apr-2001

Other s/w available None

Tuning

Operating system tunings
SPINLOOPTIME=2000
LDR_CNTRL=MAXDATA=0

Notes

"APAR IY16465 was applied to AIX 4.3.3 to enable new hardware support"

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	6354	2558	28.1	<0.01%	<0.01	new_order	331557	70.4	.477
						payment	331562	23.3	<0.01
						order_status	33155	2.19	<0.01
						delivery	33156	5.12	.011
						stock_level	33155	12.0	<0.01
2	14318	2558	47.4	1.97%	<0.01	new_order	747109	143	.515
						payment	747112	47.7	.011
						order_status	74713	4.49	<0.01
						delivery	74710	11.7	.011
						stock_level	74710	22.3	.507
3	21169	2558	65.0	1.96%	<0.01	new_order	1104541	214	.529
						payment	1104545	72.3	.529
						order_status	110455	7.02	<0.01
						delivery	110453	17.2	<0.01
						stock_level	110454	33.6	.528
4	27965	2558	82.6	2.31%	<0.01	new_order	1459145	286	.548
						payment	1459151	95.8	.547
						order_status	145914	9.21	<0.01
						delivery	145914	22.6	.012
						stock_level	145916	45.0	.548
5	34379	2558	101	2.48%	<0.01	new_order	1793849	355	.563
						payment	1793839	120	.557
						order_status	179384	11.5	<0.01
						delivery	179384	28.3	.556
						stock_level	179387	57.7	.571
6	40629	2558	122	2.92%	<0.01	new_order	2119931	431	.587
						payment	2119935	143	.587
						order_status	211993	13.8	<0.01
						delivery	211993	34.0	.579
						stock_level	211992	67.2	.590
7	46723	2558	138	2.34%	<0.01	new_order	2437937	501	.602
						payment	2437941	169	.596
						order_status	243797	16.0	<0.01
						delivery	243795	39.6	.601
						stock_level	243792	79.4	.596
8	52852	2558	158	2.62%	<0.01	new_order	2757665	576	.623
						payment	2757671	193	.622
						order_status	275767	17.7	<0.01
						delivery	275765	45.6	.616
						stock_level	275767	90.0	.632
9	58186	2558	175	1.74%	<0.01	new_order	3036056	653	.659
						payment	3036060	213	.648
						order_status	303607	20.4	.638
						delivery	303605	48.6	<0.01
						stock_level	303606	99.6	.656
10	63626	2558	192	2.60%	<0.01	new_order	3319912	722	.666
						payment	3319920	242	.663
						order_status	331992	21.7	<0.01
						delivery	331992	54.6	.633
						stock_level	331991	108	.663
11	68780	2558	210	2.73%	<0.01	new_order	3588599	804	.677
						payment	3588606	255	.675
						order_status	358859	23.3	<0.01
						delivery	358861	59.5	.661
						stock_level	358857	123	.677
12	73415	2558	228	3.07%	<0.01	new_order	3830644	878	.700
						payment	3830643	280	.700
						order_status	383065	25.9	.639
						delivery	383066	62.6	.660
						stock_level	383061	135	.700
13	73101	2558	246	5.59%	<0.01	new_order	3814272	946	.706
						payment	3814271	306	.701
						order_status	381425	28.7	.674
						delivery	381430	68.6	.702
						stock_level	381424	144	1.04
14	72691	2558	262	7.22%	<0.01	new_order	3792906	1020	1.11
						payment	3792904	329	.718
						order_status	379290	29.6	.210
						delivery	379292	76.7	.718
						stock_level	379289	157	.723
15	72202	2558	277	8.10%	<0.01	new_order	3767382	1090	.818
						payment	3767382	351	.738
						order_status	376740	32.3	.669
						delivery	376740	78.8	.687
						stock_level	376741	174	.779
16	71757	2558	296	7.14%	<0.01	new_order	3744139	1145	.847
						payment	3744130	389	.824
						order_status	374412	35.1	.710
						delivery	374415	87.5	.827
						stock_level	374410	190	.745
17	71434	2558	312	7.58%	<0.01	new_order	3727285	1214	.863
						payment	3727271	410	.832
						order_status	372731	37.1	.835
						delivery	372730	89.5	.766
						stock_level	372730	210	.826
18	71162	2558	327	7.00%	<0.01	new_order	3713089	1292	.864
						payment	3713081	424	.819
						order_status	371312	37.6	.786
						delivery	371307	96.6	.868
						stock_level	371305	226	.842
19	70757	2558	344	5.37%	<0.01	new_order	3692015	1352	.984
						payment	3692001	455	.847
						order_status	369196	41.1	.752
						delivery	369198	103	.773
						stock_level	369197	242	.982
20	70388	2558	358	5.70%	<0.01	new_order	3672727	1422	.897
						payment	3672729	485	.826
						order_status	367272	42.0	.767
						delivery	367275	107	.804
						stock_level	367272	252	.831
21	70116	2558	377	3.70%	<0.01	new_order	3658522	1486	1.01
						payment	3658520	516	.834
						order_status	365849	45.5	.795
						delivery	365849	113	.809
						stock_level	365849	263	.898
22	69889	2558	391	5.09%	<0.01	new_order	3646678	1558	.934
						payment	3646664	536	.824
						order_status	364670	47.0	.813
						delivery	364666	118	.829
						stock_level	364667	278	.839
23	70157	2558	408	6.08%	<0.01	new_order	3660549	1633	.931
						payment	3660552	568	.848
						order_status	366053	47.6	.813
						delivery	366058	122	.830
						stock_level	366054	301	.903
24	69870	2558	424	4.13%	<0.01	new_order	3645483	1718	1.03
						payment	3645474	588	.910
						order_status	364552	50.9	.817
						delivery	364549	129	.853
						stock_level	364548	301	.907
