SPECjAppServer®2004 Result Copyright © 2004 Standard Performance Evaluation Corporation |
Oracle WebLogic Server Standard Edition Release 10.3.3 on Dell PowerEdge R910 |
|
Submitter: Oracle Corporation |
SPEC license # 73 | Test date: Mar-2010 |

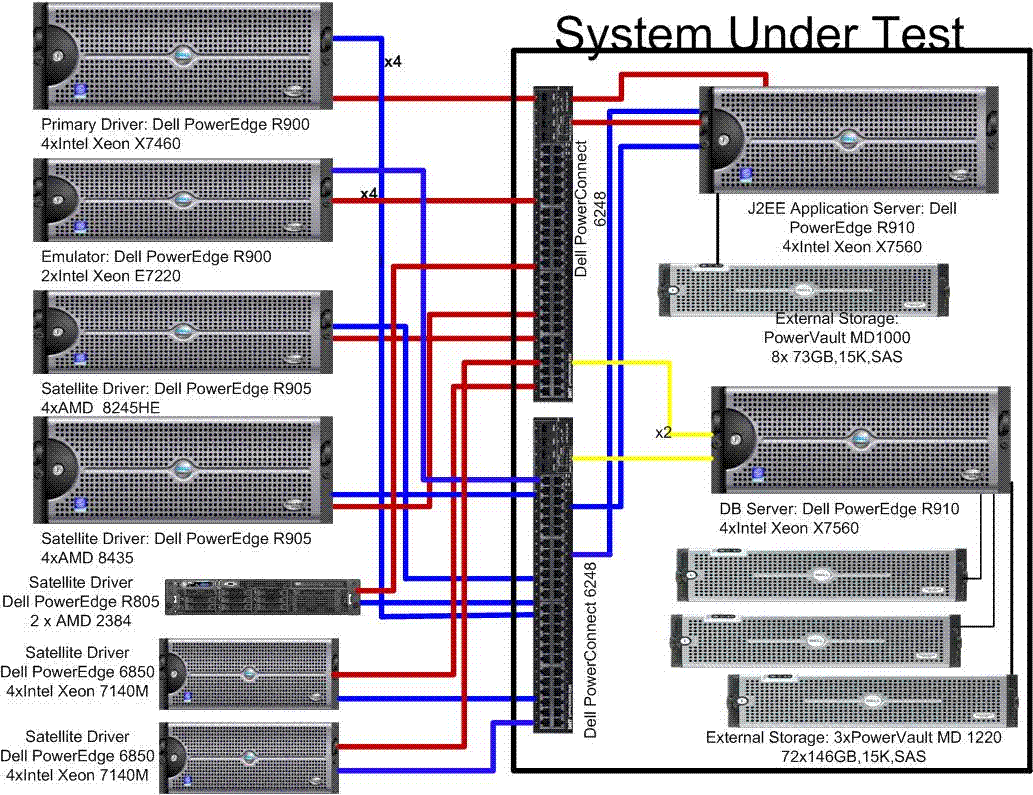

SUT Configuration | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||
|
Benchmark Settings | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Detailed Results | ||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
|
Oracle WebLogic Server Standard Edition Release 10.3.3 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Oracle JRockit(R) 6.0 JDK (R28.0.0) (Linux x86 64bit) | ||||||
---|---|---|---|---|---|---|
|
Java HotSpot(TM) 64-Bit Server VM on Linux, version 1.6.0_16 | ||||||
---|---|---|---|---|---|---|
|
Oracle JDBC Driver 11.2.0.1.0 (Thin) | ||||||
---|---|---|---|---|---|---|
|
Oracle Database Enterprise Edition Release 11.2.0.1.0 | ||||||
---|---|---|---|---|---|---|
|
J2EE Application Server | ||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
|
Emulator SW Config | ||||||||
---|---|---|---|---|---|---|---|---|
|
||||||||
|
Database SW Config | ||||||
---|---|---|---|---|---|---|
|
||||||
|
Driver SW Config Primary and Satellites | ||||||
---|---|---|---|---|---|---|
|
||||||
|
J2EE Application Server (SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Database Server HW (SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Primary Driver HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Satellite Driver #1 HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Satellite Driver #2 and #3 HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Satellite Driver #4 HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Satellite Driver #5 HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Emulator HW (non-SUT hardware) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||
|
Benchmark Modifications |
---|
Schema Modifications:
Tablespace sizes were increased to support the Injection rate. Table and index initrans were modified. The C_CUSTOMERINVENTORY, M_WORKORDER and O_ORDERLINE tables were horizontally partitioned. C_CUSTOMER, M_PARTS, M_BOM and M_INVENTORY were hash clustered. Table locks were disabled during the run for all the tables using ALTER TABLE DISABLE TABLE LOCK. Scripts to create the DB are included in the FDA. |
Load Program Modifications:
The load program was not modified. |
Benchmark Configuration Information |
---|
Isolation Requirement Info:
The following Beans were deployed in READ_COMMITTED mode as per the benchmark requirement: Mfg - AssemblyEnt, BomEnt, ComponentEnt, LargeOrderEnt, PartEnt Orders - ItemEnt Supplier - SupplierCompEnt, SupplierEnt All other beans were deployed using pessimistic locking mode such that all selects including finders are issued with a FOR UPDATE clause in select statement: Corp - CustomerEnt, CustomerInventoryEnt Mfg - InventoryEnt, WorkOrderEnt Orders - OrderEnt, OrderLineEnt Supplier - POEnt, POLineEnt, SComponentEnt Util - SequenceEnt The ItemEnt bean was cached for 20 minute intervals by setting the following in bea-orders.xml deployment descriptor: concurrency-strategy to ReadOnly read-timeout-seconds to 1200 |
Durability Requirement Info:
To ensure database durability, RAID 10 was used for the data files and redo logs. The application server used RAID 1 to provide durability for server logs and JMS persistence filestores. The RAID controller on the database and the application server machines were configured with Write-Back cache policy supported with battery backup unit on the controller. |
Storage Requirement Info:
A 80 min run at Injection Rate of 6630 increased storage by 12.1 GB. Extrapolating for 24 hrs we need 218 GB. The system is configured with over 5TB of durable storage. |
Argument Passing Semantics:
Oracle WebLogic Server Standard Edition uses pass-by-value as required by the EJB specification. |
Bill of Materials |
---|
Supplier Description SKU # Qty -------- ------------------------------------------- ---------------- --- Application Server Dell PowerEdge R910, 4x 2.5" HD 224-7569 1 Dell 4 Eight Core Intel(r) Xeon(r) X7560, 330-6757 1 8x256KB L2 24MB L3 Cache, 2.27GHz, Dell 128GB, 1066Mhz, Quad Ranked RDIMMS 317-3440 1 Dell PERC H700 Intergrated RAID controller 342-0371 1 Dell 73GB, SAS, 2.5-inch, 15K RPM Hard Drive 342-0426 2 Intel Intel Pro 1000PT Quad Port Gigabit NIC 430-2688 4 Dell PERC6/E RAID Controller 341-5851 1 Dell PowerVault MD1000 15-Bay Disk Enclosure 222-2299 1 Dell 73GB, SAS, 2.5-inch, 15K RPM Hard Drive 342-0426 8 Dell 3Yr GOLD ENTERPRISE SUPPORT: 7x24 HW/SW, 984-1519,984-1528 1 Escalation Mgmt 4hr 7x24 Onsite 310-3785,960-7532 960-7892,970-3620 Database Server Dell PowerEdge R910, 4x 2.5" HD 224-7569 1 Dell 4 Eight Core Intel(r) Xeon(r) X7560, 330-6757 1 8x256KB L2 24MB L3 Cache, 2.27GHz, Dell PERC H700 Intergrated RAID controller 342-0371 1 Dell 128GB 1066Mhz, Quad Ranked RDIMMS 317-3440 1 Dell 73GB, SAS, 2.5-inch, 15K RPM Hard Drive 342-0426 2 Intel Intel Pro 1000PT Quad Port Gigabit NIC 430-2688 1 Dell PowerVault MD1220 24-Bay Disk Enclosure 224-7093 3 Dell 146GB,6GBps,SAS,2.5-inch,15K 341-9889 72 Dell PERC H800 SAS RAID Controller 342-0368 3 Dell 3Yr GOLD ENTERPRISE SUPPORT: 7x24 HW/SW, 981-3170,981-3752 1 Escalation Mgmt 4hr 7x24 Onsite 981-3652,981-3692 Dell PowerConnect 6248 Managed Switch, 48 Port 222-6714 2 Gigabit Ethernet Switch with 4 SFP combo ports Dell 3Yr GOLD Support, 4Hr Onsite 983-3758,983-3837 1 S/W Support, TAM Service 960-1305,960-4492 960-9620 Oracle Oracle Enterprise Linux Basic Support for 3 years 2 Oracle Oracle Database 11g Enterprise Edition, Per Processor 16* Unlimited Users for 3 years Oracle Partitioning, Per Processor, Unlimited Users for 3 years 16* Oracle Oracle Premium Support for 3 years 2 Oracle Oracle WebLogic Server Standard Edition Release 10.3, 16* Per Processor for 3 years Oracle Oracle Premium Support for 3 years 1 (* 16 = 0.50 * 32) Explanation: For the purposes of counting the number of processors which require licensing, an Intel multicore chip with "n" cores shall be determined by multiplying "n" cores by a factor of 0.50). |
Other Benchmark Information |
---|
The xerces implementation version 2.8.1 from xml.apache.org was used as it comes packaged with Oracle Weblogic Server Standard Edition. Requests were directed to the Appserver instances using DNS round robin, with the database node acting as the DNS server. |
General Notes |
---|
On the database, incremental checkpointing ensured that no buffer will remain dirty (in the cache) for more than the allowed time. The only errors in the driver error logs are the application errors generated by this benchmark. |
For questions about this result, please contact the submitter: Oracle Corporation For other inquiries, please contact webmaster@spec.org
Copyright © 2004 Standard Performance Evaluation Corporation
First published at SPEC.org on 30-Mar-2010
