SPEC® OMPG2012 Result

Copyright 2012-2021 Standard Performance Evaluation Corporation

Intel

SPECompG_base2012 = 34.4

Intel Server System M70KLP (Intel Xeon
Platinum 8360Y, 2.40 GHz)

SPECompG_peak2012 = 42.1

OMP2012 license: 13 Test date: Apr-2021
Test sponsor: Intel Hardware Availability: Mar-2021
Tested by: Intel Software Availability: Mar-2021

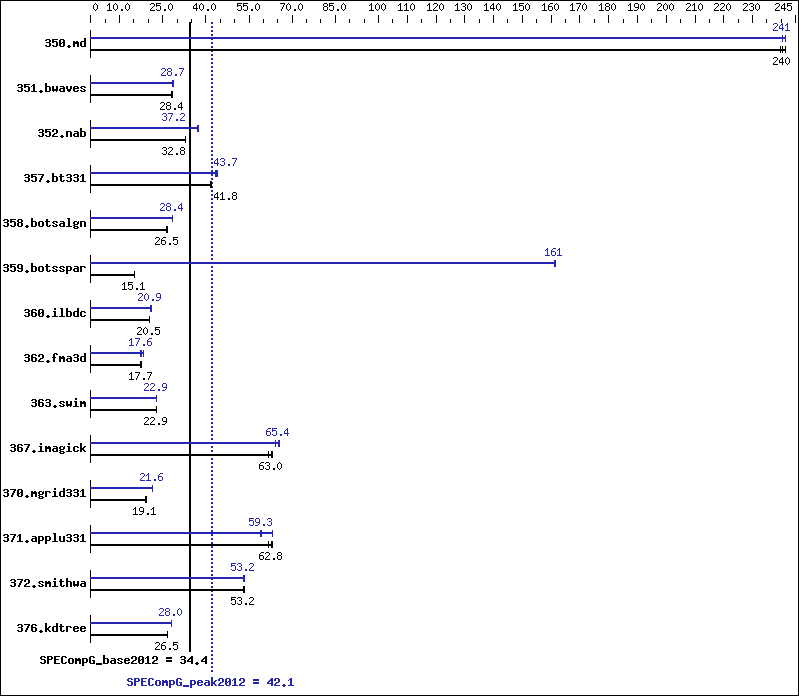

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8360Y
CPU Characteristics: Intel Turbo Boost Technology : Up to 3.50 Ghz
CPU MHz: 2400
CPU MHz Maximum: 3500
FPU: Integrated
CPU(s) enabled: 72 cores, 2 chips, 36 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1.25 MB I+D on chip per core
L3 Cache: 54 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx8 DDR4-3200Y-R)
Disk Subsystem: SSDSC2KG96 960GB
Other Hardware: --
Base Threads Run: 144
Minimum Peak Threads: 72
Maximum Peak Threads: 144
Software
Operating System: CentOS Linux release 8.3.2011 (Core)
Compiler: C/C++/Fortran: Version 2021.2.0.2883 of Intel
Composer XE for Linux
Auto Parallel: No
File System: Linux ext3
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 144 19.3  240    19.3  240    19.2  241    144 19.3  240    19.3  241    19.2  241
351.bwaves 144 161    28.1  159    28.5  159    28.4  72 157    28.8  158    28.7  159    28.6
352.nab 144 118    32.8  119    32.8  118    32.8  144 105    37.2  105    37.0  104    37.3
357.bt331 144 113    42.1  114    41.7  113    41.8  144 108    43.7  108    44.0  109    43.5
358.botsalgn 144 165    26.4  164    26.5  164    26.5  144 153    28.5  153    28.4  153    28.4
359.botsspar 144 349    15.0  348    15.1  348    15.1  72 32.6  161    32.5  161    32.6  161
360.ilbdc 144 173    20.5  174    20.5  174    20.4  144 170    20.9  170    21.0  170    20.9
362.fma3d 144 221    17.2  214    17.8  215    17.7  144 206    18.5  218    17.4  216    17.6
363.swim 144 198    22.9  198    22.9  197    23.0  72 198    22.9  198    22.9  198    22.8
367.imagick 144 112    63.0  114    61.7  111    63.2  72 107    65.6  109    64.3  108    65.4
370.mgrid331 144 231    19.1  230    19.2  231    19.1  72 205    21.6  205    21.6  205    21.5
371.applu331 144 96.1  63.0  96.5  62.8  98.0  61.8  144 102    59.3  95.8  63.3  103    58.9
372.smithwa 144 101    53.1  101    53.2  100    53.3  144 100    53.4  101    53.0  101    53.2
376.kdtree 144 169    26.6  170    26.5  170    26.5  144 160    28.0  161    28.0  160    28.1

Platform Notes

 Sysinfo program /global/panfs02/innl/aknyaze1/OMP2012/1.1/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on eij379 Mon Apr 19 00:38:29 2021

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8360Y CPU @ 2.40GHz
       2 "physical id"s (chips)
       144 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 36
       siblings  : 72
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35
    cache size : 55296 KB

 From /proc/meminfo
    MemTotal:       263785224 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 8.3.2011
    centos-release-upstream: Derived from Red Hat Enterprise Linux 8.3
    os-release:
       NAME="CentOS Linux"
       VERSION="8"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="8"
       PLATFORM_ID="platform:el8"
       PRETTY_NAME="CentOS Linux 8"
       ANSI_COLOR="0;31"
    redhat-release: CentOS Linux release 8.3.2011
    system-release: CentOS Linux release 8.3.2011
    system-release-cpe: cpe:/o:centos:centos:8

 uname -a:
    Linux eij379 4.18.0-240.22.1.el8_3.crt1.x86_64 #1 SMP Thu Apr 8 10:38:43 MDT
    2021 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Apr 15 17:10

 SPEC is set to: /global/panfs02/innl/aknyaze1/OMP2012/1.1
    Filesystem                Type   Size  Used Avail Use% Mounted on
    panfs://36.101.212.1/innl panfs  269T  210T   59T  79% /global/panfs02/innl
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,verbose

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,verbose

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 System settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled

 ========================================================================
 General OMP Library Settings
   KMP_LIBRARY=turnaround
   KMP_STACKSIZE=292M
   KMP_BLOCKTIME=infinite
   OMP_DYNAMIC=FALSE
   OMP_NESTED=FALSE
   OMP_SCHEDULE=static

 Spectre and Meltdown
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
 is mitigated in the system as tested and documented.
 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 367.imagick:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 370.mgrid331:peak:
   ENV_KMP_AFFINITY=compact,1,verbose

 ========================================================================
 370.mgrid331:peak:
 Compiler: Fortran: Version 19.0.3.199 of Intel Composer XE for Linux

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=0   -ipo

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=0   -ipo

Fortran benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=0   -ipo   -align all

Peak Compiler Invocation

C benchmarks (except as noted below):

 icx
367.imagick:  icc
372.smithwa:  icc

C++ benchmarks:

 icpx

Fortran benchmarks (except as noted below):

 ifort
370.mgrid331:  ifx
371.applu331:  /opt/intel/compiler/2019u3/bin/ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fno-alias   -ipo
358.botsalgn:  Same as 352.nab
359.botsspar:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fno-alias
367.imagick:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo
372.smithwa:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0   -ipo

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fno-alias   -ipo

Fortran benchmarks:

350.md:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0   -ipo   -align all
351.bwaves:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=2   -ipo   -align all
357.bt331:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=1   -ipo   -align all
360.ilbdc:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=4   -ipo   -align all
362.fma3d:  Same as 350.md
363.swim:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -fno-alias   -qopt-malloc-options=3   -qopt-prefetch=0   -ipo   -align all
370.mgrid331:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fno-alias   -ipo   -align all
371.applu331:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=0   -align all

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.20210507.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.20210507.xml.
