SPEC® OMPG2012 Result

Copyright 2012-2019 Standard Performance Evaluation Corporation

Huawei

SPECompG_base2012 = 45.9

Huawei 2488H V5 (Intel Xeon Platinum 8280, 2.7
GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 27 Test date: Feb-2019
Test sponsor: Huawei Hardware Availability: Apr-2019
Tested by: Huawei Software Availability: Feb-2019

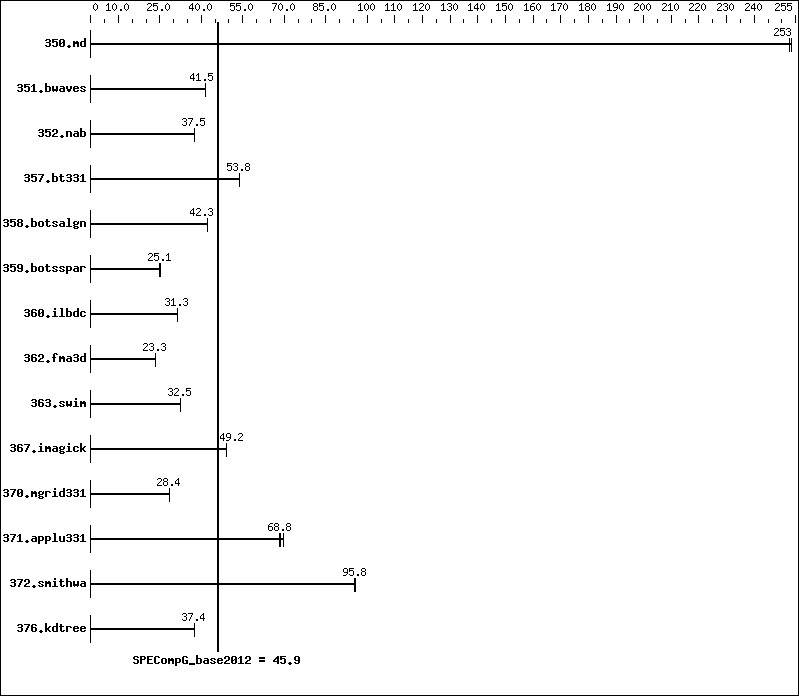

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8280
CPU Characteristics: Intel Turbo Boost Technology up to 4.00 GHz
CPU MHz: 2700
CPU MHz Maximum: 4000
FPU: Integrated
CPU(s) enabled: 112 cores, 4 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 2 to 4 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 1536 GB (48 x 32 GB 2Rx4 PC4-2933Y-R)
Disk Subsystem: 1x900 GB 10 K RPM SAS HDD,RAID 0
Other Hardware: None
Base Threads Run: 224
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: SUSE Linux Enterprise Server 12 SP4
4.12.14-94.41-default
Compiler: C/C++: Version 19.0.1.144 of Intel C++ Studio XE
for Linux;
Fortran: Version 19.0.1.144 of Intel Fortran
Auto Parallel: No
File System: btrfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 224 18.3  253    18.3  253    18.3  254
351.bwaves 224 109    41.5  109    41.5  109    41.5
352.nab 224 104    37.5  104    37.5  104    37.6
357.bt331 224 88.1  53.8  88.0  53.8  88.3  53.7
358.botsalgn 224 103    42.3  103    42.3  103    42.3
359.botsspar 224 208    25.3  209    25.1  211    24.9
360.ilbdc 224 114    31.3  114    31.3  114    31.3
362.fma3d 224 163    23.3  163    23.3  163    23.4
363.swim 224 139    32.5  139    32.6  139    32.5
367.imagick 224 143    49.2  143    49.2  143    49.3
370.mgrid331 224 156    28.4  156    28.4  156    28.4
371.applu331 224 88.1  68.8  88.6  68.4  86.8  69.8
372.smithwa 224 56.1  95.6  55.9  95.9  55.9  95.8
376.kdtree 224 120    37.4  120    37.4  120    37.4

Platform Notes

 Sysinfo program /home/omp/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on linux-7ven Wed Feb 27 16:47:16 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel Xeon Platinum 8280 CPU @ 2.70GHz
       4 "physical id"s (chips)
       224 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 2: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       1583460908 kB
    HugePages_Total:   262144
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 12 SP4

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 4
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP4"
       VERSION_ID="12.4"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP4"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp4"

 uname -a:
    Linux linux-7ven 4.12.14-94.41-default #1 SMP Wed Oct 31 12:25:04 UTC 2018
    (3090901) x86_64 x86_64 x86_64 GNU/Linux

 run-level 5 Feb 27 16:04

 SPEC is set to: /home/omp
    Filesystem     Type   Size  Used Avail Use% Mounted on
    /dev/sda4      btrfs  696G   27G  668G   4% /home

 Additional information from dmidecode:
   BIOS INSYDE Corp. 6.36 02/15/2019
   Memory:
    48x Samsung M393A4K40CB2-CVF 32 GB 2933 MHz 2 rank

 (End of data from sysinfo program)

General Notes

 ========================================================================
 Power profile set with:
 cpupower -c all frequency-set -g performance

 System settings notes:
 Intel Turbo Boost Technology (Turbo)  : Enabled
 Memory RAS Configuration set to Maximum Performance

 ========================================================================
 General Notes and Enviroment variables
   ENV_KMP_BLOCKTIME=infinite
   ENV_KMP_DETERMINISTIC_REDUCTION=1
   ENV_OMP_DYNAMIC=FALSE
   ENV_KMP_LIBRARY=turnaround
   ENV_KMP_SCHEDULE=static,balanced
   ENV_KMP_STACKSIZE=256M
   ENV_OMP_NESTED=FALSE
   ENV_OMP_NUM_THREADS=224

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=granularity=fine,proclist=[0-27,112-139,28-55,140-167,56-83,168-195,84-111,196-223],explicit

BIOS settings:
 XPT Prefetch Set to Enabled
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
 is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -ipo    -xCORE-AVX512   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -ansi-alias

C++ benchmarks:

 -O3   -qopenmp   -ipo    -xCORE-AVX512   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -ansi-alias

Fortran benchmarks:

 -O3   -qopenmp   -ipo    -xCORE-AVX512   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align all

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Huawei_Intel-ic17.0-linux64.html,
http://www.spec.org/omp2012/flags/Huawei-Platform-Settings-SKL-V1.7.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/Huawei_Intel-ic17.0-linux64.xml,
http://www.spec.org/omp2012/flags/Huawei-Platform-Settings-SKL-V1.7.xml.
