Huawei |
SPECompG_base2012 = 12.6 |
|
Huawei 2288H V5 (Intel Xeon Platinum 8280, 2.7 |
SPECompG_peak2012 = Not Run |
| OMP2012 license: | 27 | Test date: | Mar-2019 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | Jul-2017 |
| Tested by: | Huawei | Software Availability: | Mar-2019 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Platinum 8280 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 4.00 GHz |
| CPU MHz: | 2700 |
| CPU MHz Maximum: | 4000 |
| FPU: | Integrated |
| CPU(s) enabled: | 28 cores, 1 chip, 28 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 Chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 38.5 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 192 GB (12 x 16 GB 2Rx8 PC4-2933Y-R) |
| Disk Subsystem: | 1 X 480 GB SSD SAS |
| Other Hardware: | None |
| Base Threads Run: | 56 |
| Minimum Peak Threads: | -- |
| Maximum Peak Threads: | -- |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 12 SP4 (x86_64) 4.12.14-94.41-default |
| Compiler: | C/C++/Fortran: Version 19.0.3.199 of Intel Composer for Linux Build 20190206 |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | run level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

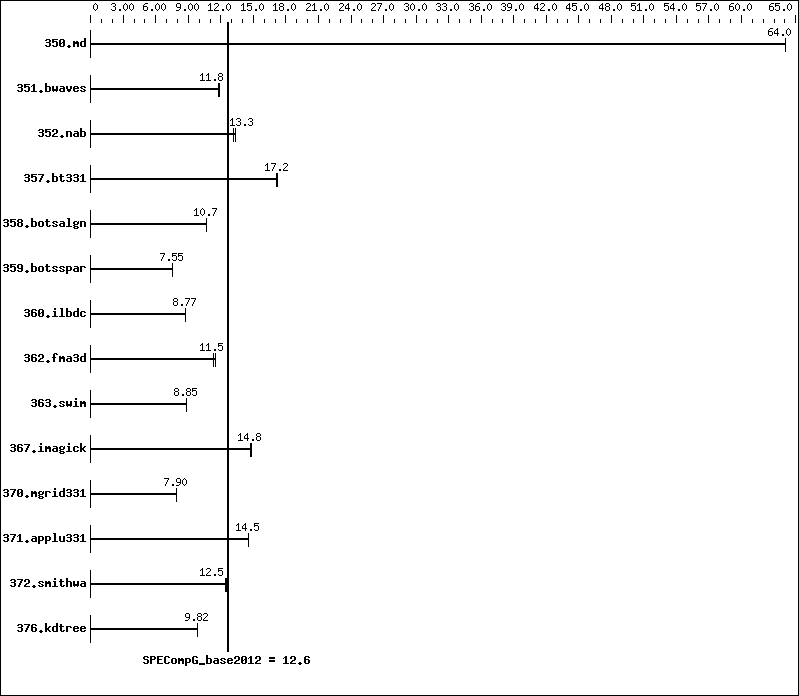

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 350.md | 56 | 72.3 | 64.0 | 72.3 | 64.0 | 72.3 | 64.1 | |||||||
| 351.bwaves | 56 | 383 | 11.8 | 383 | 11.8 | 383 | 11.8 | |||||||
| 352.nab | 56 | 292 | 13.3 | 297 | 13.1 | 292 | 13.3 | |||||||
| 357.bt331 | 56 | 277 | 17.1 | 275 | 17.2 | 276 | 17.2 | |||||||
| 358.botsalgn | 56 | 407 | 10.7 | 407 | 10.7 | 407 | 10.7 | |||||||
| 359.botsspar | 56 | 696 | 7.55 | 693 | 7.57 | 696 | 7.54 | |||||||
| 360.ilbdc | 56 | 406 | 8.77 | 406 | 8.77 | 406 | 8.77 | |||||||
| 362.fma3d | 56 | 335 | 11.3 | 332 | 11.5 | 331 | 11.5 | |||||||
| 363.swim | 56 | 512 | 8.85 | 512 | 8.85 | 511 | 8.86 | |||||||
| 367.imagick | 56 | 475 | 14.8 | 478 | 14.7 | 477 | 14.8 | |||||||
| 370.mgrid331 | 56 | 559 | 7.90 | 559 | 7.90 | 559 | 7.90 | |||||||
| 371.applu331 | 56 | 417 | 14.5 | 417 | 14.5 | 417 | 14.5 | |||||||
| 372.smithwa | 56 | 430 | 12.5 | 430 | 12.5 | 430 | 12.5 | |||||||
| 376.kdtree | 56 | 458 | 9.82 | 458 | 9.82 | 458 | 9.81 | |||||||
Platform Notes
Sysinfo program /omp2012/Docs/sysinfo $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647 running on linux-fxye Tue Nov 20 20:06:28 2018 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/omp2012/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Platinum 8280 CPU @ 2.70GHz 1 "physical id"s (chips) 56 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 28 siblings : 56 physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 cache size : 39424 KB From /proc/meminfo MemTotal: 196260704 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 12 SP4 From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 12 (x86_64) VERSION = 12 PATCHLEVEL = 4 # This file is deprecated and will be removed in a future service pack or release. # Please check /etc/os-release for details about this release. os-release: NAME="SLES" VERSION="12-SP4" VERSION_ID="12.4" PRETTY_NAME="SUSE Linux Enterprise Server 12 SP4" ID="sles" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:12:sp4" uname -a: Linux linux-fxye 4.12.14-94.41-default #1 SMP Wed Oct 31 12:25:04 UTC 2018 (3090901) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Nov 20 19:48 SPEC is set to: /omp2012 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 xfs 425G 81G 345G 19% / Additional information from dmidecode: BIOS INSYDE Corp. 6.36 02/15/2019 Memory: 12x NO DIMM NO DIMM 12x Samsung M393A2K43CB2-CVF 16 GB 2933 MHz 2 rank (End of data from sysinfo program)
General Notes
======================================================================== BIOS settings notes: Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled BIOS settings notes: Intel HyperThreading Technology set to Enabled CPU performance set to Enterprise Power Performance Tuning set to OS Sub Numa Clustering (SNC) set to Disabled IMC Interleaving set to Auto General OMP Library Settings ENV_KMP_LIBRARY=turnaround ENV_OMP_SCHEDULE=static ENV_KMP_BLOCKTIME=200 ENV_KMP_STACKSIZE=512M ENV_OMP_DYNAMIC=FALSE ENV_OMP_NESTED=FALSE ======================================================================== General base OMP Library Settings ENV_KMP_AFFINITY=compact,1 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Base Portability Flags
| 350.md: | -FR |
| 357.bt331: | -mcmodel=medium |
| 363.swim: | -mcmodel=medium |
| 367.imagick: | -std=c99 |
