SPEC® OMPG2012 Result

Dell (Test Sponsor: University of Delaware)	SPECompG_base2012 = 7.35
Dell M630 Blade (Intel Xeon E5-2680 v3)	SPECompG_peak2012 = Not Run

OMP2012 license:	056A	Test date:	Sep-2018
Test sponsor:	University of Delaware	Hardware Availability:	Jun-2018
Tested by:	University of Delaware	Software Availability:	Jun-2018

Hardware
CPU Name:	Dual Intel Xeon E5-2680 v3
CPU Characteristics:	Intel Turbo Boost Technology off, Hyper-Threading on
CPU MHz:	2500
CPU MHz Maximum:	3300
FPU:	Integrated
CPU(s) enabled:	24 cores, 2 chips, 12 cores/chip, 2 threads/core
CPU(s) orderable:	1-2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	30 MB I+D on chip per chip
Other Cache:	None
Memory:	128 GB (16 x 8 GB 2Rx4 PC4-2133P-R)
Disk Subsystem:	400GB (SATA Mix Use MLC 6Gbps 2.5in Hot-plug Drive,13G (400-AEIX) dual SSDs, RAID-1)
Other Hardware:	None
Base Threads Run:	44
Minimum Peak Threads:	--
Maximum Peak Threads:	--

Software
Operating System:	CentOS Linux release 7.5.1804 (Core) 3.10.0-862.11.6.el7.x86_64
Compiler:	C/C++/Fortran: Version 18.0.3.222 of Intel Parallel Studio XE for Linux Build 20180410
Auto Parallel:	No
File System:	XFS
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
Other Software:	None

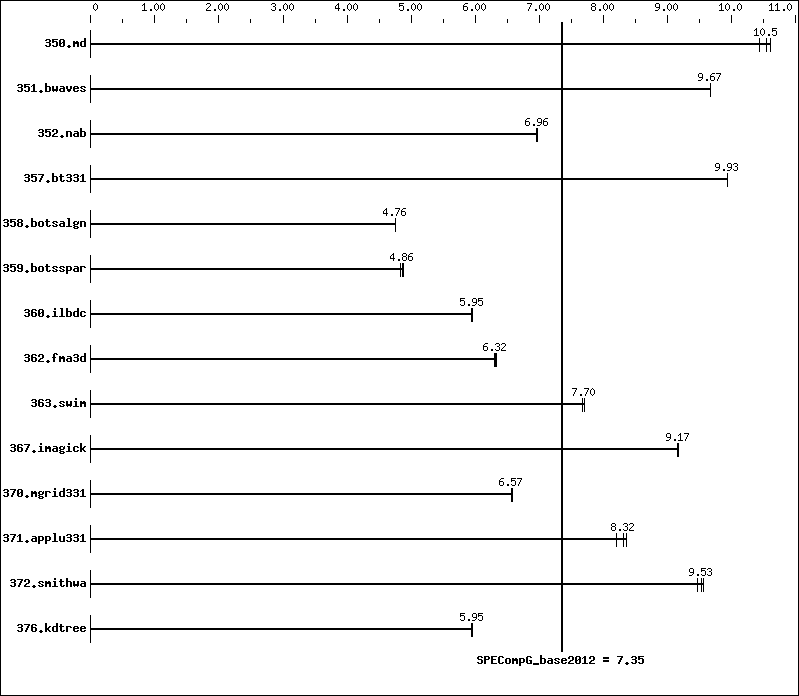

Results Table

Benchmark	Base							Peak
Benchmark	Threads	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Threads	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md	44	444	10.4	437	10.6	439	10.5
351.bwaves	44	469	9.67	468	9.67	469	9.67
352.nab	44	558	6.98	560	6.95	559	6.96
357.bt331	44	477	9.93	477	9.93	477	9.93
358.botsalgn	44	914	4.76	914	4.76	914	4.76
359.botsspar	44	1077	4.87	1080	4.86	1085	4.84
360.ilbdc	44	598	5.95	598	5.95	598	5.95
362.fma3d	44	604	6.29	600	6.33	601	6.32
363.swim	44	588	7.71	588	7.70	590	7.67
367.imagick	44	768	9.15	766	9.18	766	9.17
370.mgrid331	44	671	6.59	673	6.57	674	6.56
371.applu331	44	728	8.32	739	8.20	725	8.36
372.smithwa	44	563	9.53	566	9.46	561	9.56
376.kdtree	44	756	5.95	756	5.95	758	5.94

Platform Notes

 Sysinfo program /home/huberth/SPEC_OMP2012v1.1/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on r01c2b04 Thu Sep 13 19:18:58 2018

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2680 v3 @ 2.50GHz
       2 "physical id"s (chips)
       48 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 12
       siblings  : 24
       physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13
       physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13
    cache size : 30720 KB

 From /proc/meminfo
    MemTotal:       131612388 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    CentOS Linux release 7.5.1804 (Core)

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.5.1804 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.5 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.5.1804 (Core)
    system-release: CentOS Linux release 7.5.1804 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux r01c2b04 3.10.0-862.11.6.el7.x86_64 #1 SMP Tue Aug 14 21:49:04 UTC 2018
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Sep 13 18:53

 SPEC is set to: /home/huberth/SPEC_OMP2012v1.1
    Filesystem                       Type  Size  Used Avail Use% Mounted on
    /dev/mapper/centos_r01c2b04-root xfs   926G   43G  884G   5% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes


Environment Variables:
    KMP_STACKSIZE=1G
    ulimit -s unlimited

    KMP_AFFINITY=compact
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
