SPEC® OMPG2012 Result

Copyright 2012-2018 Standard Performance Evaluation Corporation

Lenovo Global Technology

SPECompG_base2012 = 40.6

ThinkSystem SR950

SPECompG_peak2012 = Not Run

OMP2012 license: 28 Test date: Jul-2018
Test sponsor: Lenovo Global Technology Hardware Availability: Aug-2017
Tested by: Lenovo Global Technology Software Availability: Aug-2018

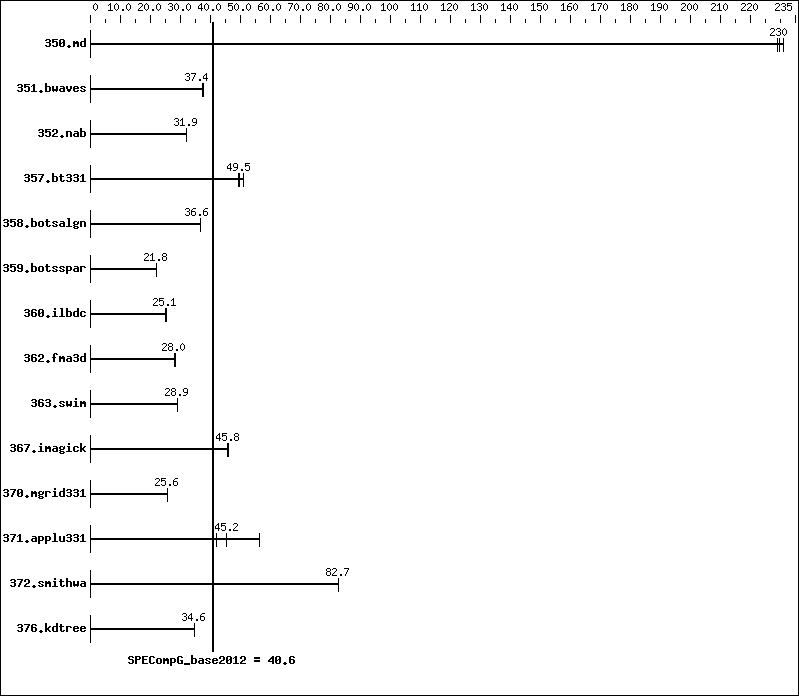

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: Intel Turbo Boost Technology up to 3.80 GHz
CPU MHz: 2500
CPU MHz Maximum: 3800
FPU: Integrated
CPU(s) enabled: 112 cores, 4 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 2,3,4,6,8 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory: 768 GB (48 x 16 GB 2Rx8 PC4-2666V)
Disk Subsystem: 0.96TB NVMe SSD
Other Hardware: None
Base Threads Run: 224
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: Red Hat Enterprise Linux Server release 7.5,
Kernel 3.10.0-862.3.2.el7.x86_64
Compiler: C/C++/Fortran: Version 18.0.3.222 of Intel
Composer XE for Linux Build 20180516
Auto Parallel: No
File System: ext3
System State: Default
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 224 20.2  230    20.0  231    20.2  229
351.bwaves 224 122    37.3  121    37.4  121    37.5
352.nab 224 122    31.8  122    31.9  122    32.0
357.bt331 224 95.7  49.5  96.0  49.4  93.1  50.9
358.botsalgn 224 119    36.6  119    36.7  119    36.6
359.botsspar 224 240    21.9  241    21.8  241    21.8
360.ilbdc 224 142    25.1  142    25.0  141    25.2
362.fma3d 224 136    28.0  136    28.0  135    28.2
363.swim 224 157    28.9  157    28.9  156    29.0
367.imagick 224 153    45.9  154    45.6  154    45.8
370.mgrid331 224 173    25.6  172    25.7  174    25.5
371.applu331 224 134    45.2  108    56.1  144    42.0
372.smithwa 224 64.8  82.7  64.8  82.7  64.9  82.6
376.kdtree 224 130    34.6  130    34.6  130    34.7

Operating System Notes

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
is mitigated in the system as tested and documented.
ulimit -s unlimited

Platform Notes

 Sysinfo program /home/omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on localhost.localdomain Tue Jul 24 20:09:25 2018

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8180 CPU @ 2.50GHz
       4 "physical id"s (chips)
       224 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 2: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       791969344 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.5 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VARIANT="Server"
       VARIANT_ID="server"
       VERSION_ID="7.5"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.5 (Maipo)"
    redhat-release: Red Hat Enterprise Linux Server release 7.5 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.5 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.5:ga:server

 uname -a:
    Linux localhost.localdomain 3.10.0-862.el7.x86_64 #1 SMP Wed Mar 21 18:14:51
    EDT 2018 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jul 24 13:40

 SPEC is set to: /home/omp2012
    Filesystem            Type  Size  Used Avail Use% Mounted on
    /dev/mapper/rhel-home xfs   839G   16G  823G   2% /home

 Additional information from dmidecode:
   BIOS Lenovo -[PSE113P-1.30]- 06/14/2018
   Memory:
    48x NO DIMM NO DIMM
    48x Samsung M393A2K43BB1-CTD 16 GB 2666 MHz 2 rank

 (End of data from sysinfo program)

General Notes

 =========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

 =========================================================================
 General OMP Library Settings
   KMP_LIBRARY=turnaround
   KMP_STACKSIZE=16G
   KMP_BLOCKTIME=infinite
   OMP_DYNAMIC=FALSE
   OMP_NESTED=FALSE
   OMP_SCHEDULE=static

 =========================================================================
 BIOS setting notes:
 Operating Mode set to Maximum Performance Mode
 =========================================================================

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O2   -qopenmp   -ipo    -xHOST   -ansi-alias

C++ benchmarks:

 -O2   -qopenmp   -ipo    -xHOST   -ansi-alias

Fortran benchmarks:

 -O2   -qopenmp   -ipo    -xHOST   -align array64byte

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Lenovo-Platform-Flags-V1.2-SKL-C.html,
http://www.spec.org/omp2012/flags/lenovo.20180912.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/Lenovo-Platform-Flags-V1.2-SKL-C.xml,
http://www.spec.org/omp2012/flags/lenovo.20180912.xml.
