Lenovo Global Technology |
SPECompG_base2012 = 32.9 |
|
ThinkSystem SR950 |
SPECompG_peak2012 = Not Run |
| OMP2012 license: | 28 | Test date: | Aug-2018 |
|---|---|---|---|
| Test sponsor: | Lenovo Global Technology | Hardware Availability: | Aug-2017 |
| Tested by: | Lenovo Global Technology | Software Availability: | Aug-2018 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Platinum 8180 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.80 GHz |
| CPU MHz: | 2500 |
| CPU MHz Maximum: | 3800 |
| FPU: | Integrated |
| CPU(s) enabled: | 84 cores, 3 chips, 28 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,3,4,6,8 Chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 39424 KB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 576 GB (36 x 16 GB 2Rx8 PC4-2666V) |
| Disk Subsystem: | 0.96TB NVMe SSD |
| Other Hardware: | None |
| Base Threads Run: | 168 |
| Minimum Peak Threads: | -- |
| Maximum Peak Threads: | -- |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 7.5, Kernel 3.10.0-862.3.2.el7.x86_64 |
| Compiler: | C/C++/Fortran: Version 18.0.3.222 of Intel Composer XE for Linux Build 20180516 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

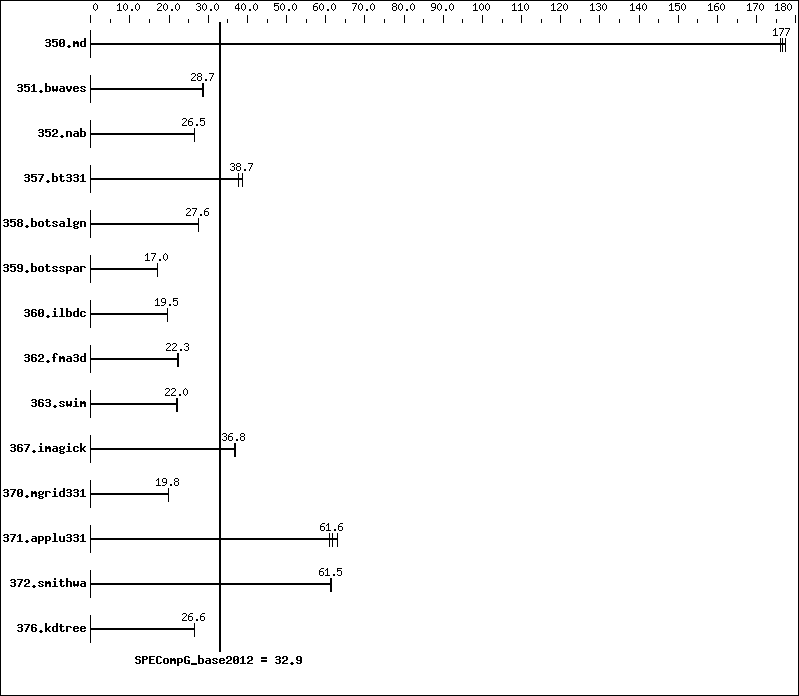

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 350.md | 168 | 26.3 | 176 | 26.1 | 177 | 26.2 | 177 | |||||||
| 351.bwaves | 168 | 158 | 28.7 | 158 | 28.6 | 158 | 28.7 | |||||||
| 352.nab | 168 | 147 | 26.5 | 147 | 26.5 | 147 | 26.5 | |||||||
| 357.bt331 | 168 | 122 | 38.7 | 125 | 37.8 | 122 | 38.8 | |||||||
| 358.botsalgn | 168 | 157 | 27.6 | 158 | 27.6 | 158 | 27.6 | |||||||
| 359.botsspar | 168 | 308 | 17.0 | 310 | 17.0 | 309 | 17.0 | |||||||
| 360.ilbdc | 168 | 182 | 19.5 | 182 | 19.5 | 182 | 19.5 | |||||||
| 362.fma3d | 168 | 170 | 22.4 | 170 | 22.3 | 171 | 22.3 | |||||||
| 363.swim | 168 | 205 | 22.1 | 205 | 22.0 | 206 | 22.0 | |||||||
| 367.imagick | 168 | 190 | 36.9 | 191 | 36.7 | 191 | 36.8 | |||||||
| 370.mgrid331 | 168 | 223 | 19.8 | 223 | 19.8 | 223 | 19.8 | |||||||
| 371.applu331 | 168 | 98.3 | 61.6 | 96.2 | 63.0 | 99.2 | 61.1 | |||||||
| 372.smithwa | 168 | 87.2 | 61.5 | 87.7 | 61.1 | 87.1 | 61.5 | |||||||
| 376.kdtree | 168 | 169 | 26.6 | 169 | 26.6 | 170 | 26.5 | |||||||
Operating System Notes
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented. ulimit -s unlimited
Platform Notes
Sysinfo program /home/omp2012/Docs/sysinfo $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647 running on localhost.localdomain Thu Aug 23 14:02:58 2018 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/omp2012/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Platinum 8180 CPU @ 2.50GHz 3 "physical id"s (chips) 168 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 28 siblings : 56 physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 cache size : 39424 KB From /proc/meminfo MemTotal: 593801136 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Server" VERSION="7.5 (Maipo)" ID="rhel" ID_LIKE="fedora" VARIANT="Server" VARIANT_ID="server" VERSION_ID="7.5" PRETTY_NAME="Red Hat Enterprise Linux Server 7.5 (Maipo)" redhat-release: Red Hat Enterprise Linux Server release 7.5 (Maipo) system-release: Red Hat Enterprise Linux Server release 7.5 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.5:ga:server uname -a: Linux localhost.localdomain 3.10.0-862.3.2.el7.x86_64 #1 SMP Tue May 15 18:22:15 EDT 2018 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 21 10:44 SPEC is set to: /home/omp2012 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/rhel-home xfs 839G 17G 822G 2% /home Additional information from dmidecode: BIOS Lenovo -[PSE113P-1.30]- 06/14/2018 Memory: 60x NO DIMM NO DIMM 36x Samsung M393A2K43BB1-CTD 16 GB 2666 MHz 2 rank (End of data from sysinfo program)
General Notes
========================================================================= General base OMP Library Settings ENV_KMP_AFFINITY=compact,1 ========================================================================= General OMP Library Settings KMP_LIBRARY=turnaround KMP_STACKSIZE=16G KMP_BLOCKTIME=infinite OMP_DYNAMIC=FALSE OMP_NESTED=FALSE OMP_SCHEDULE=static ========================================================================= BIOS setting notes: Operating Mode set to Maximum Performance Mode =========================================================================
Base Portability Flags
| 350.md: | -FR |
| 357.bt331: | -mcmodel=medium |
| 363.swim: | -mcmodel=medium |
| 367.imagick: | -std=c99 |
