SPEC® OMPG2012 Result

Copyright 2012-2017 Standard Performance Evaluation Corporation

Cray (Test Sponsor: Indiana University)

SPECompG_base2012 = 5.60

Cray XC30 (Intel Xeon E5-2697 v2)

SPECompG_peak2012 = Not Run

OMP2012 license: 3440A Test date: Jun-2017
Test sponsor: Indiana University Hardware Availability: Apr-2013
Tested by: Indiana University Software Availability: Mar-2017

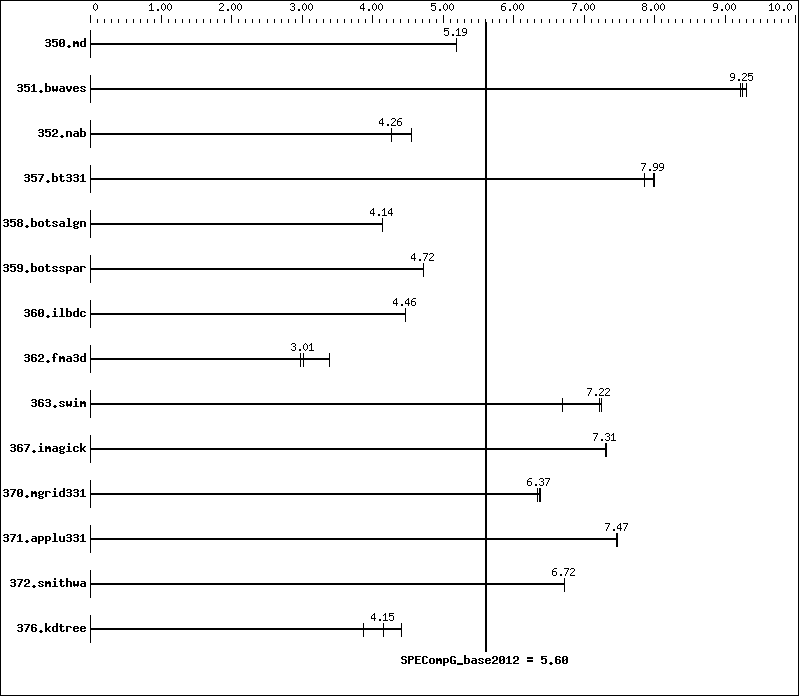

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2697 v2
CPU Characteristics: Intel Turbo Boost Technology off,
Hyper-Threading on
CPU MHz: 2700
CPU MHz Maximum: 2700
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip, 2 threads/core
CPU(s) orderable: 1-2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (8 x 8 GB 2Rx4 PC3-14900R-13, ECC)
Disk Subsystem: None
Other Hardware: None
Base Threads Run: 24
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: SUSE Linux Enterprise Server 11 SP3 (x86_64),
Cray Linux Environment 5.2
3.0.101-0.46.1_1.0502.8871-cray_ari_c
Compiler: C/C++/Fortran: Version 17.5 of PGI
Premier Edition
Auto Parallel: No
File System: Lustre 2.5 (DDN SFA12K) over QDR InfiniBand
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 24 892   5.19  893   5.18  893   5.19
351.bwaves 24 487   9.30  490   9.25  491   9.22
352.nab 24 856   4.55  913   4.26  913   4.26
357.bt331 24 593   7.99  594   7.99  604   7.85
358.botsalgn 24 1050   4.14  1050   4.14  1050   4.14
359.botsspar 24 1113   4.72  1113   4.72  1113   4.72
360.ilbdc 24 798   4.46  798   4.46  798   4.46
362.fma3d 24 1122   3.39  1261   3.01  1277   2.98
363.swim 24 626   7.24  677   6.69  628   7.22
367.imagick 24 962   7.31  963   7.30  961   7.32
370.mgrid331 24 694   6.37  697   6.34  692   6.38
371.applu331 24 811   7.47  811   7.47  812   7.46
372.smithwa 24 797   6.73  798   6.72  797   6.72
376.kdtree 24 1164   3.87  1083   4.15  1022   4.40

Platform Notes

 Sysinfo program
 /N/dc2/projects/hpc/lijunj/spec/omp2012-1.1-run/bigred2plus3/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on nid00536 Mon Jul 17 20:53:10 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2697 v2 @ 2.70GHz
       2 "physical id"s (chips)
       48 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 12
       siblings  : 24
       physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13
       physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13
    cache size : 30720 KB

 From /proc/meminfo
    MemTotal:       66072376 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 11 (x86_64)

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 11 (x86_64)
       VERSION = 11
       PATCHLEVEL = 3

 uname -a:
    Linux nid00536 3.0.101-0.46.1_1.0502.8871-cray_ari_c #1 SMP Mon Jun 26
    15:18:40 UTC 2017 x86_64 x86_64 x86_64 GNU/Linux


 SPEC is set to: /N/dc2/projects/hpc/lijunj/spec/omp2012-1.1-run/bigred2plus3
    Filesystem                             Type    Size  Used Avail Use% Mounted
    on
    10.10.0.171@o2ib:10.10.0.172@o2ib:/dc2 lustre  5.3P  5.0P  253T  96% /N/dc2

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes


Environment Variables:
    OMP_STACKSIZE=1G
    ulimit -s unlimited

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgc++

Fortran benchmarks:

 pgf90

Base Portability Flags

350.md:  -Mfree
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium

Base Optimization Flags

C benchmarks:

 -fast   -Mfprelaxed   -mp   -Mipa=fast   -Mipa=inline

C++ benchmarks:

 -fast   -Mfprelaxed   -mp   -Mipa=fast   -Mipa=inline

Fortran benchmarks:

 -fast   -Mfprelaxed   -mp   -Mipa=fast   -Mipa=inline

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/pgi17_linux_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/pgi17_linux_flags.xml.
