SPEC® OMPG2012 Result

Copyright 2012-2017 Standard Performance Evaluation Corporation

Cisco Systems

SPECompG_base2012 = 37.2

Cisco UCS C480 M5 (Intel Xeon Platinum 8180,
2.50
GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 9019 Test date: Jun-2017
Test sponsor: Cisco Systems Hardware Availability: Aug-2017
Tested by: Cisco Systems Software Availability: May-2017

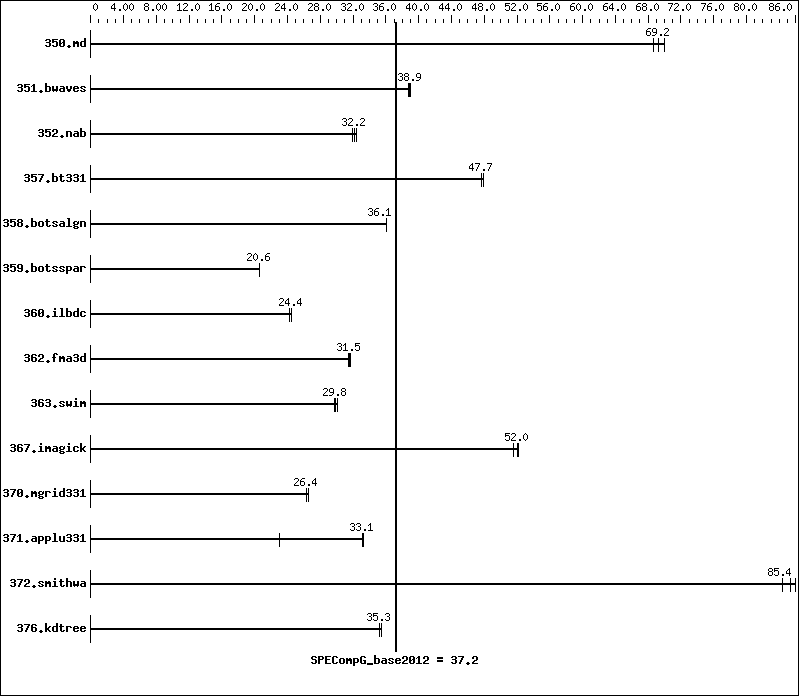

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: Intel Turbo Boost Technology up to 3.80 GHz
CPU MHz: 2500
CPU MHz Maximum: 3800
FPU: Integrated
CPU(s) enabled: 112 cores, 4 chips, 28 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
Other Cache: None
Memory: 768 GB (48 x 16 GB 2Rx4 PC4-2666V-R)
Disk Subsystem: 1 X 400 GB SSD SAS
Other Hardware: None
Base Threads Run: 224
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: SUSE Linux Enterprise Server 12 SP2 (x86_64)
Kernel 4.4.21-69-default
Compiler: C/C++/Fortran: Version 17.0.4.196 of Intel
Composer
for Linux Build 20170411
Auto Parallel: No
File System: xfs
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 224 66.1  70.0  67.5  68.6  66.9  69.2
351.bwaves 224 116    38.9  116    39.0  117    38.8
352.nab 224 120    32.4  121    32.2  122    32.0
357.bt331 224 99.3  47.7  99.5  47.6  99.0  47.9
358.botsalgn 224 121    36.1  121    36.0  120    36.1
359.botsspar 224 255    20.6  254    20.6  255    20.6
360.ilbdc 224 147    24.3  145    24.5  146    24.4
362.fma3d 224 121    31.4  121    31.5  120    31.7
363.swim 224 152    29.8  152    29.8  150    30.1
367.imagick 224 135    52.0  135    52.1  136    51.6
370.mgrid331 224 168    26.4  168    26.3  166    26.6
371.applu331 224 182    33.3  183    33.1  263    23.0
372.smithwa 224 62.8  85.4  63.5  84.4  62.4  86.0
376.kdtree 224 128    35.3  127    35.4  128    35.3

Platform Notes

 Sysinfo program /opt/omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on linux-wjnw Wed Jun 14 18:26:08 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8180 CPU @ 2.50GHz
       4 "physical id"s (chips)
       224 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 28
       siblings  : 56
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 2: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
       physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24
       25 26 27 28 29 30
    cache size : 39424 KB

 From /proc/meminfo
    MemTotal:       791192456 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 12 (x86_64)
       VERSION = 12
       PATCHLEVEL = 2
       # This file is deprecated and will be removed in a future service pack or
       release.
       # Please check /etc/os-release for details about this release.
    os-release:
       NAME="SLES"
       VERSION="12-SP2"
       VERSION_ID="12.2"
       PRETTY_NAME="SUSE Linux Enterprise Server 12 SP2"
       ID="sles"
       ANSI_COLOR="0;32"
       CPE_NAME="cpe:/o:suse:sles:12:sp2"

 uname -a:
    Linux linux-wjnw 4.4.21-69-default #1 SMP Tue Oct 25 10:58:20 UTC 2016
    (9464f67) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jun 14 03:53

 SPEC is set to: /opt/omp2012
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda2      xfs   321G   40G  282G  13% /

 Additional information from dmidecode:
   BIOS Cisco Systems, Inc. C480M5.3.1.0.248.0518171057 05/18/2017
   Memory:
    48x   16 GB
    48x 0xCE00 M393A2G40EB2-CTD 16 GB 2666 MHz 2 rank

 (End of data from sysinfo program)

General Notes

 ========================================================================
 BIOS settings notes:
   Transparent Huge Pages enabled with:
   echo always > /sys/kernel/mm/transparent_hugepage/enabled
 BIOS settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled
   CPU performance set to Enterprise
   Power Performance Tuning set to OS
   SNC set to Disabled
   IMC Interleaving set to Auto
 General OMP Library Settings
   ENV_KMP_LIBRARY=turnaround
   ENV_OMP_SCHEDULE=static
   ENV_KMP_BLOCKTIME=200
   ENV_KMP_STACKSIZE=8192M
   ENV_OMP_DYNAMIC=FALSE
   ENV_OMP_NESTED=FALSE

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1
 ========================================================================

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

C++ benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

Fortran benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -align array64byte

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20140219.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20140219.xml.
