SPEC® OMPG2012 Result

Colfax International (Test Sponsor: Indiana University)	SPECompG_base2012 = 7.12
Intel Xeon Phi 7210, 1.30GHz, SMT on, Turbo off, MCDRAM Cache	SPECompG_peak2012 = Not Run

OMP2012 license:	3440A	Test date:	Oct-2016
Test sponsor:	Indiana University	Hardware Availability:	Aug-2016
Tested by:	Indiana University	Software Availability:	Apr-2016

Hardware
CPU Name:	Intel Xeon Phi 7210
CPU Characteristics:	Intel Turbo Boost Technology off, Simultaneous Multithreading (SMT) on
CPU MHz:	1300
CPU MHz Maximum:	1500
FPU:	Integrated
CPU(s) enabled:	64 cores, 1 chip, 64 cores/chip, 4 threads/core
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per two cores
L3 Cache:	None
Other Cache:	None
Memory:	96 GB (6 x 16 GB 2Rx8 PC4-2400T-REB-11, ECC)
Disk Subsystem:	Intel S3510 SSD 800GB, SATA3
Other Hardware:	None
Base Threads Run:	64
Minimum Peak Threads:	--
Maximum Peak Threads:	--

Software
Operating System:	CentOS Linux release 7.2.1511 3.10.0-327.13.1.el7.xppsl_1.3.3.151.x86_64
Compiler:	C/C++/Fortran: Version 16.0.3.210 of Intel Composer XE 2016 for Linux Build 20160415
Auto Parallel:	No
File System:	ext4
System State:	Runlevel 3 (multi-user with networking)
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
Other Software:	None

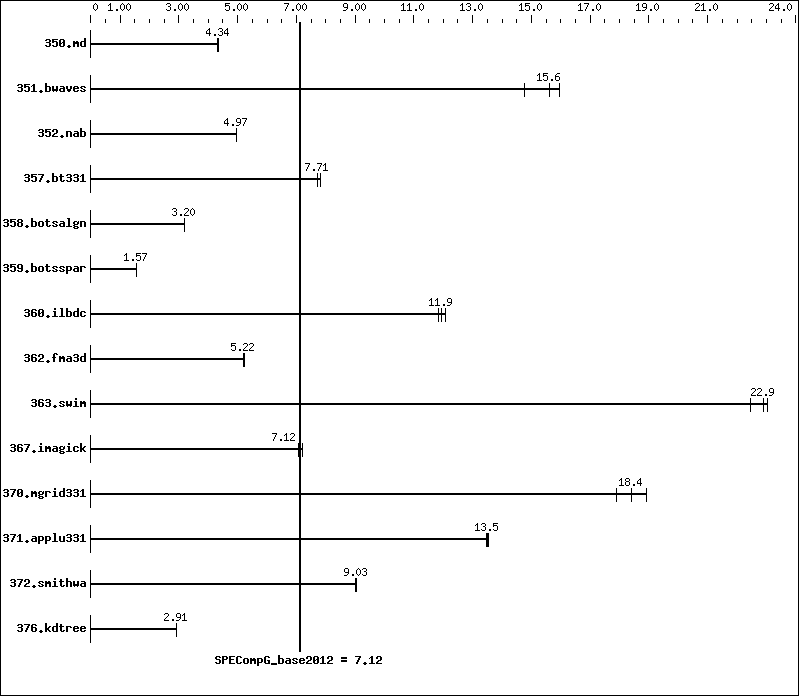

Results Table

Benchmark	Base							Peak
Benchmark	Threads	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Threads	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md	64	1069	4.33	1067	4.34	1068	4.34
351.bwaves	64	307	14.8	284	15.9	290	15.6
352.nab	64	782	4.97	783	4.97	782	4.97
357.bt331	64	607	7.81	615	7.71	615	7.70
358.botsalgn	64	1360	3.20	1360	3.20	1360	3.20
359.botsspar	64	3345	1.57	3347	1.57	3352	1.57
360.ilbdc	64	295	12.1	299	11.9	301	11.8
362.fma3d	64	728	5.22	727	5.23	729	5.21
363.swim	64	202	22.5	196	23.1	198	22.9
367.imagick	64	976	7.20	994	7.07	988	7.12
370.mgrid331	64	234	18.9	240	18.4	247	17.9
371.applu331	64	447	13.6	449	13.5	450	13.5
372.smithwa	64	594	9.03	593	9.04	595	9.01
376.kdtree	64	1545	2.91	1544	2.91	1542	2.92

Platform Notes

 Sysinfo program /home/lijunj/SPEC/omp2012-1.1-run/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on knl1.uits.indiana.edu Wed Oct  5 13:47:22 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon Phi(TM) CPU 7210 @ 1.30GHz
       1 "physical id"s (chips)
       256 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 64
       siblings  : 256
       physical 0: cores 0 1 2 3 6 7 10 11 12 13 14 15 18 19 20 21 22 23 24 25 26
       27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
       52 53 56 57 58 59 60 61 62 63 64 65 68 69 70 71 72 73
    cache size : 1024 KB

 From /proc/meminfo
    MemTotal:       98679320 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    CentOS Linux release 7.2.1511 (Core)

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.2.1511 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.2 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.2.1511 (Core)
    system-release: CentOS Linux release 7.2.1511 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux knl1.uits.indiana.edu 3.10.0-327.13.1.el7.xppsl_1.3.3.151.x86_64 #1 SMP
    Fri Jun 10 15:04:35 UTC 2016 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Oct 5 12:52

 SPEC is set to: /home/lijunj/SPEC/omp2012-1.1-run
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda3      ext4  713G   77G  601G  12% /

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes


 BIOS settings:
   Intel Simultaneous Multithreading (SMT): on
   Intel Turbo Boost Technology (Turbo): off
   Cluster Mode: quadrant
   Memory Mode: cache
