SPEC® OMPG2012 Result

Copyright 2012-2016 Standard Performance Evaluation Corporation

Hewlett Packard Enterprise (Test Sponsor: HPE)

SPECompG_base2012 = 37.5

Integrity MC990 X
(2.20 GHz, Intel Xeon E7-8890 v4)

SPECompG_peak2012 = 41.8
OMP2012 license: 1 Test date: Jul-2016
Test sponsor: HPE Hardware Availability: Jun-2016
Tested by: HPE Software Availability: May-2016

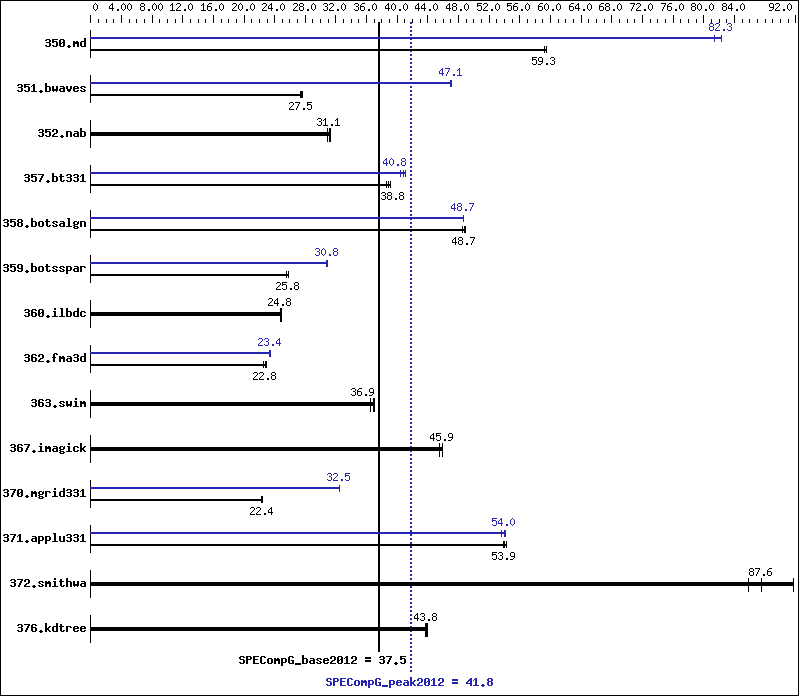

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8890 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.40 GHz
CPU MHz: 2200
CPU MHz Maximum: 3400
FPU: Integrated
CPU(s) enabled: 192 cores, 8 chips, 24 cores/chip, 2 threads/core
CPU(s) orderable: 1-8 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory: 2 TB (64 x 32 GB 2Rx4 PC4-2133P-R, running at
1600 MHz)
Disk Subsystem: 1 x 400 GB SAS MLC SSD, RAID 0
Other Hardware: None
Base Threads Run: 384
Minimum Peak Threads: 192
Maximum Peak Threads: 384
Software
Operating System: Red Hat Enterprise Linux Server release 7.2
Kernel 3.10.0-327.18.2.el7.x86_64
Compiler: C/C++: Version 16.0.3.210 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.3.210 of Intel Fortran
Auto Parallel: No
File System: ext3
System State: Default
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 384 78.1  59.3  77.9  59.4  78.2  59.2  384 56.3  82.3  56.3  82.3  56.9  81.4
351.bwaves 384 164    27.6  165    27.4  165    27.5  192 96.4  47.0  96.2  47.1  96.2  47.1
352.nab 384 124    31.3  125    31.1  126    30.9  384 124    31.3  125    31.1  126    30.9
357.bt331 384 121    39.1  122    38.8  123    38.6  384 117    40.4  116    41.0  116    40.8
358.botsalgn 384 89.7  48.5  89.0  48.9  89.3  48.7  384 89.4  48.7  89.4  48.7  89.4  48.6
359.botsspar 384 203    25.8  203    25.9  205    25.6  192 170    30.8  170    30.9  171    30.7
360.ilbdc 384 143    24.9  144    24.8  143    24.8  384 143    24.9  144    24.8  143    24.8
362.fma3d 384 167    22.8  168    22.6  166    22.9  384 163    23.3  162    23.5  162    23.4
363.swim 384 122    37.0  124    36.5  123    36.9  384 122    37.0  124    36.5  123    36.9
367.imagick 384 153    45.9  153    45.9  155    45.5  384 153    45.9  153    45.9  155    45.5
370.mgrid331 384 198    22.3  197    22.4  197    22.4  192 136    32.5  136    32.5  136    32.5
371.applu331 384 112    53.9  112    54.3  112    53.9  384 112    54.0  112    54.2  113    53.6
372.smithwa 384 58.4  91.7  61.2  87.6  62.4  85.8  384 58.4  91.7  61.2  87.6  62.4  85.8
376.kdtree 384 103    43.7  102    44.0  103    43.8  384 103    43.7  102    44.0  103    43.8

General Notes

 ========================================================================
 Power profile set with:
 cpupower -c all frequency-set -g performance

 System settings notes:
 Intel Turbo Boost Technology (Turbo)  : Enabled
 Memory RAS Configuration set to Maximum Performance

 ========================================================================
 General Notes and Enviroment variables
   ENV_KMP_AFFINITY=compact,1
   ENV_KMP_BLOCKTIME=infinite
   ENV_OMP_NESTED=FALSE
   ENV_KMP_DETERMINISTIC_REDUCTION=1
   ENV_OMP_DYNAMIC=FALSE
   ENV_KMP_LIBRARY=turnaround
   ENV_KMP_SCHEDULE=static,balanced
   ENV_KMP_STACKSIZE=256M
   ENV_OMP_NESTED=FALSE
   ENV_OMP_NUM_THREADS=384

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=static,1

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=guided

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 372.smithwa:peak:
   ENV_OMP_SCHEDULE=static,1

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99
370.mgrid331:  -mcmodel=medium

Base Optimization Flags

C benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

C++ benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

Fortran benchmarks:

350.md:  -O3   -openmp   -ipo    -xCORE-AVX2   -align array64byte   -fp-model strict
351.bwaves:  Same as 350.md
357.bt331:  Same as 350.md
360.ilbdc:  Same as 350.md
362.fma3d:  Same as 350.md
363.swim:  Same as 350.md
370.mgrid331:  -O3   -openmp   -ipo    -xCORE-AVX2   -fp-model strict
371.applu331:  Same as 350.md

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99
370.mgrid331:  -mcmodel=medium

Peak Optimization Flags

C benchmarks:

352.nab:  basepeak = yes
358.botsalgn:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -ansi-alias
359.botsspar:  Same as 358.botsalgn
367.imagick:  basepeak = yes
372.smithwa:  basepeak = yes

C++ benchmarks:

376.kdtree:  basepeak = yes

Fortran benchmarks:

350.md:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
351.bwaves:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
357.bt331:  Same as 351.bwaves
360.ilbdc:  basepeak = yes
362.fma3d:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -align array64byte
363.swim:  basepeak = yes
370.mgrid331:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=3   -fp-model strict
371.applu331:  -O3   -openmp   -ipo    -xCORE-AVX2   -align array64byte

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/HP-Platform-Flags-Intel-V1.2-Integrity-revD.20160804.html,
http://www.spec.org/omp2012/flags/hp-ic16.0.2-linux64.v1.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/HP-Platform-Flags-Intel-V1.2-Integrity-revD.20160804.xml,
http://www.spec.org/omp2012/flags/hp-ic16.0.2-linux64.v1.xml.

SPEC is a registered trademark of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2012-2016 Standard Performance Evaluation Corporation
Tested with SPEC OMP2012 v1.0.
Report generated on Thu Aug 4 10:51:34 2016 by SPEC OMP2012 HTML formatter v541.
Originally published on 4 August 2016.
