SPEC® OMPG2012 Result

Copyright 2012-2016 Standard Performance Evaluation Corporation

Cisco Systems

SPECompG_base2012 = 26.0

Cisco UCS C460 M4 (Intel Xeon E7-8890 v4, 2.20
GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 9019 Test date: May-2016
Test sponsor: Cisco Systems Hardware Availability: Jul-2016
Tested by: Cisco Systems Software Availability: Aug-2015

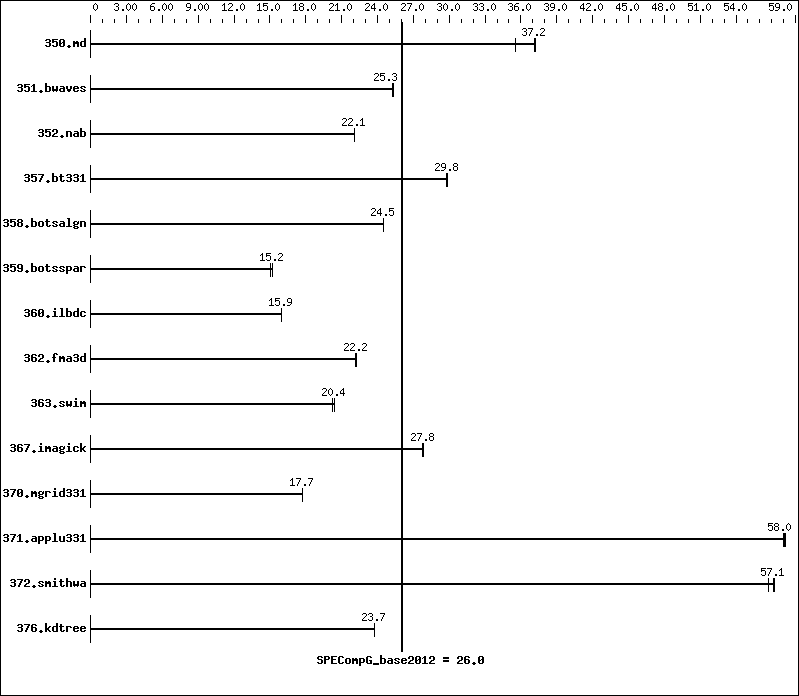

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8890 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.40 GHz
CPU MHz: 2200
CPU MHz Maximum: 3400
FPU: Integrated
CPU(s) enabled: 96 cores, 4 chips, 24 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory: 512 GB (32 x 16 GB 2Rx4 PC4-2400T-R,
running at 1600 MHz)
Disk Subsystem: 1 X 300 GB SAS, 15K RPM
Other Hardware: None
Base Threads Run: 192
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: Red Hat Enterprise Linux 6.7
(Santiago),
Kernel 2.6.32-573.el6.x86_64
Compiler: C/C++/Fortran: Version 16.0.0.109 of Intel
Composer
for Linux Build 20150815
Auto Parallel: No
File System: Linux ext3
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 192 124    37.2  130    35.6  125    37.2
351.bwaves 192 179    25.4  179    25.3  179    25.3
352.nab 192 176    22.1  176    22.1  176    22.1
357.bt331 192 159    29.8  159    29.8  159    29.8
358.botsalgn 192 177    24.5  177    24.5  177    24.5
359.botsspar 192 346    15.2  345    15.2  348    15.1
360.ilbdc 192 223    15.9  223    15.9  223    15.9
362.fma3d 192 171    22.2  172    22.1  171    22.2
363.swim 192 222    20.4  224    20.2  222    20.4
367.imagick 192 253    27.8  252    27.9  253    27.8
370.mgrid331 192 249    17.7  249    17.7  249    17.7
371.applu331 192 104    58.0  104    58.0  104    58.1
372.smithwa 192 93.6  57.2  93.8  57.1  94.5  56.7
376.kdtree 192 190    23.7  190    23.7  190    23.7

Platform Notes

 Sysinfo program /opt/omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on rhel67 Sat May  7 17:19:06 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7-8890 v4 @ 2.20GHz
       4 "physical id"s (chips)
       192 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 24
       siblings  : 48
       physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 2: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 3: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
    cache size : 61440 KB

 From /proc/meminfo
    MemTotal:       529124784 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.7 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.7 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.7 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux rhel67 2.6.32-573.el6.x86_64 #1 SMP Wed Jul 1 18:23:37 EDT 2015 x86_64
    x86_64 x86_64 GNU/Linux

 run-level 3 May 7 11:54

 SPEC is set to: /opt/omp2012
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sdb2      ext4  225G   64G  150G  30% /

 Additional information from dmidecode:
   BIOS Cisco Systems, Inc. C460M4.2.0.11.30.032820161452 03/28/2016
   Memory:
    32x   16 GB
    32x 0xCE00 M393A2G40EB1-CRC 16 GB 1600 MHz 2 rank
    64x NO DIMM NO DIMM

 (End of data from sysinfo program)

General Notes

 ========================================================================
   Transparent Huge Pages enabled with:
   echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 BIOS settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled
   CPU performance set to Enterprise
   Processor Power State set to C0/C1
   Power Technology set to Performance
   Memory RAS configuration set to Maximum Performance
   Energy Performance BIAS setting set to OS
   Memory Power Saving Mode set to Disabled
   QPI Snoop Mode set to Cluster-on-Die
 General OMP Library Settings
   ENV_KMP_LIBRARY=turnaround
   ENV_OMP_SCHEDULE=static
   ENV_KMP_BLOCKTIME=200
   ENV_KMP_STACKSIZE=702M
   ENV_OMP_DYNAMIC=FALSE
   ENV_OMP_NESTED=FALSE

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O2   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

C++ benchmarks:

 -O2   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

Fortran benchmarks:

 -O2   -openmp   -ipo    -xCORE-AVX2   -align array64byte

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20140219.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20140219.xml.
