SPEC® OMPG2012 Result

Copyright 2012-2016 Standard Performance Evaluation Corporation

Cisco Systems

SPECompG_base2012 = 13.4

Cisco UCS B260 M4 (Intel Xeon E7-8890 v4, 2.20
GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 9019 Test date: May-2016
Test sponsor: Cisco Systems Hardware Availability: Jul-2016
Tested by: Cisco Systems Software Availability: Aug-2015

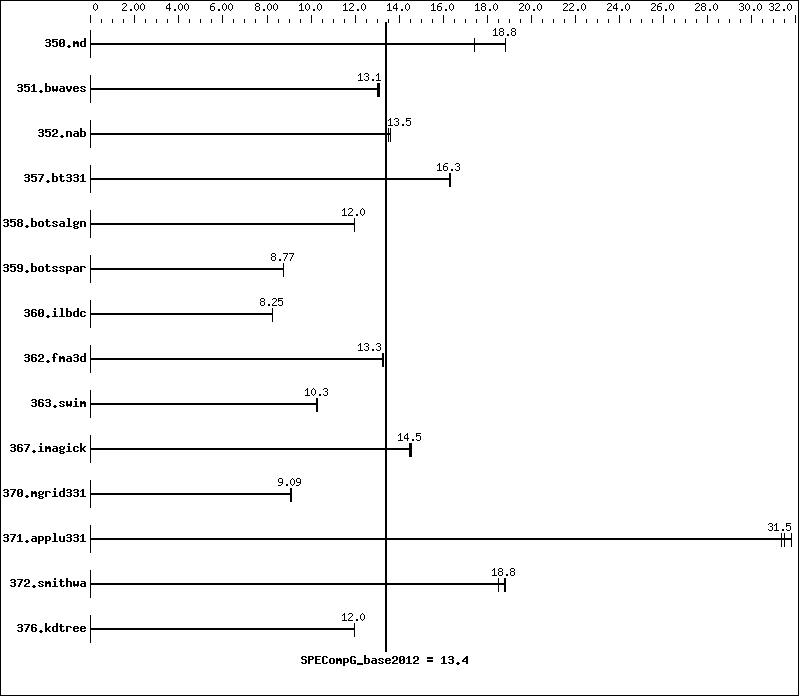

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8890 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.40 GHz
CPU MHz: 2200
CPU MHz Maximum: 3400
FPU: Integrated
CPU(s) enabled: 48 cores, 2 chips, 24 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC4-2400T-R,
running at 1600 MHz)
Disk Subsystem: 1 X 400 GB SSD SAS
Other Hardware: None
Base Threads Run: 96
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: Red Hat Enterprise Linux 6.7
(Santiago),
Kernel 2.6.32-573.el6.x86_64
Compiler: C/C++/Fortran: Version 16.0.0.109 of Intel
Composer
for Linux Build 20150815
Auto Parallel: No
File System: Linux ext3
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 96 246   18.8   246   18.8   266   17.4
351.bwaves 96 347   13.1   348   13.0   346   13.1
352.nab 96 287   13.5   286   13.6   287   13.5
357.bt331 96 291   16.3   290   16.3   291   16.3
358.botsalgn 96 364   12.0   364   12.0   364   12.0
359.botsspar 96 600   8.75  599   8.77  599   8.77
360.ilbdc 96 432   8.25  431   8.25  432   8.24
362.fma3d 96 287   13.3   286   13.3   286   13.3
363.swim 96 441   10.3   440   10.3   441   10.3
367.imagick 96 485   14.5   484   14.5   485   14.5
370.mgrid331 96 487   9.09  486   9.09  487   9.08
371.applu331 96 193   31.4   191   31.8   193   31.5
372.smithwa 96 286   18.8   290   18.5   285   18.8
376.kdtree 96 376   12.0   376   12.0   376   12.0

Platform Notes

 Sysinfo program /opt/omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on RHEL Thu May 05 21:08:56 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7-8890 v4 @ 2.20GHz
       2 "physical id"s (chips)
       96 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 24
       siblings  : 48
       physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
       physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 16 17 18 19 20 21 24 25 26
       27 28 29
    cache size : 61440 KB

 From /proc/meminfo
    MemTotal:       264225480 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.7 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.7 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.7 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux RHEL 2.6.32-573.el6.x86_64 #1 SMP Wed Jul 1 18:23:37 EDT 2015 x86_64
    x86_64 x86_64 GNU/Linux

 run-level 3 May 05 20:56

 SPEC is set to: /opt/omp2012
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda1      ext4  367G   28G  321G   8% /

 Additional information from dmidecode:
   BIOS Cisco Systems, Inc. EXM4.3.1.1.3.042620161123 04/26/2016
   Memory:
    16x   16 GB
    16x 0xCE00 M393A2G40EB1-CRC 16 GB 1600 MHz 2 rank
    32x NO DIMM NO DIMM

 (End of data from sysinfo program)

General Notes

 ========================================================================
   Transparent Huge Pages enabled with:
   echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 BIOS settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled
   CPU performance set to Enterprise
   Power Technology set to Performance
   Memory RAS configuration set to Maximum Performance
   Energy Performance BIAS setting set to OS
 General OMP Library Settings
   ENV_KMP_LIBRARY=turnaround
   ENV_OMP_SCHEDULE=static
   ENV_KMP_BLOCKTIME=200
   ENV_KMP_STACKSIZE=8192M
   ENV_OMP_DYNAMIC=FALSE
   ENV_OMP_NESTED=FALSE

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O2   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

C++ benchmarks:

 -O2   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

Fortran benchmarks:

 -O2   -openmp   -ipo    -xCORE-AVX2   -align array64byte

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20140219.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20140219.xml.
