SPEC® OMPG2012 Result

Copyright 2012-2016 Standard Performance Evaluation Corporation

Hewlett Packard Enterprise (Test Sponsor: HPE)

SPECompG_base2012 = 47.7

Integrity Superdome X
(288 core, 2.50 GHz, Intel Xeon E7-8890 v3)

SPECompG_peak2012 = 55.3

OMP2012 license: 1 Test date: Apr-2016
Test sponsor: HPE Hardware Availability: Oct-2015
Tested by: HPE Software Availability: Feb-2016

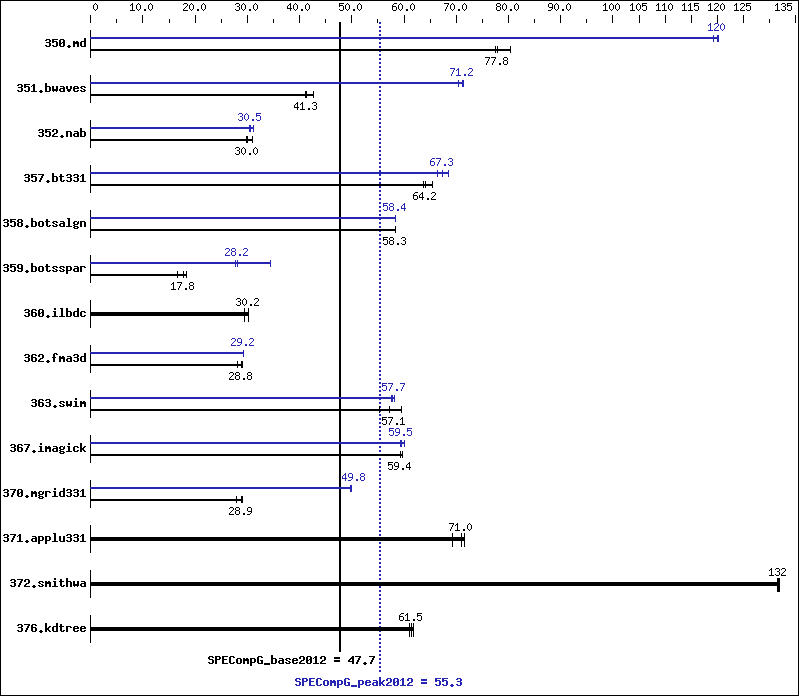

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8890 v3
CPU Characteristics: Intel Turbo Boost Technology up to 3.30 GHz
CPU MHz: 2500
CPU MHz Maximum: 3300
FPU: Integrated
CPU(s) enabled: 288 cores, 16 chips, 18 cores/chip, 2 threads/core
CPU(s) orderable: 2 to 16 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory: 12 TB (384 x 32 GB 2Rx4 PC4-2133P-L, running at
1600 MHz)
Disk Subsystem: 8 x C8S59A, 900 GB 10 K RPM SAS
Other Hardware: None
Base Threads Run: 576
Minimum Peak Threads: 288
Maximum Peak Threads: 576
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64) SP4
Kernel 3.0.101-63-default
Compiler: C/C++: Version 16.0.2.181 of Intel C++ Studio XE
for Linux;
Fortran: Version 16.0.2.181 of Intel Fortran
Auto Parallel: No
File System: ext3
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 576 59.8  77.4  57.6  80.4  59.5  77.8  576 38.5  120    38.8  119    38.6  120
351.bwaves 576 110    41.2  106    42.7  110    41.3  288 63.4  71.5  63.7  71.2  64.4  70.4
352.nab 576 130    30.0  125    31.0  130    29.9  576 124    31.2  128    30.5  128    30.5
357.bt331 576 73.9  64.2  72.4  65.5  74.3  63.8  576 70.4  67.3  69.2  68.5  71.4  66.4
358.botsalgn 576 74.5  58.4  74.6  58.3  74.6  58.3  576 74.6  58.3  74.5  58.4  74.5  58.4
359.botsspar 576 316    16.6  295    17.8  286    18.3  288 186    28.2  189    27.7  152    34.5
360.ilbdc 576 121    29.4  118    30.2  118    30.2  576 121    29.4  118    30.2  118    30.2
362.fma3d 576 132    28.8  131    29.0  136    28.0  576 130    29.2  130    29.2  130    29.2
363.swim 576 79.3  57.1  76.2  59.4  81.9  55.3  288 77.8  58.2  78.5  57.7  78.7  57.6
367.imagick 576 118    59.6  118    59.4  119    59.3  576 118    59.5  117    60.0  119    59.2
370.mgrid331 576 153    29.0  153    28.9  158    28.0  288 88.7  49.8  88.7  49.8  88.8  49.8
371.applu331 576 84.8  71.5  85.3  71.0  87.5  69.2  576 84.8  71.5  85.3  71.0  87.5  69.2
372.smithwa 576 40.6  132    40.8  131    40.7  132    576 40.6  132    40.8  131    40.7  132
376.kdtree 576 73.2  61.5  73.8  60.9  72.8  61.8  576 73.2  61.5  73.8  60.9  72.8  61.8

General Notes

 ========================================================================
 Power profile set with:
 cpupower -c all frequency-set -g performance

 System settings notes:
 Intel Turbo Boost Technology (Turbo)  : Enabled
 Memory RAS Configuration set to Maximum Performance

 ========================================================================
 General Notes and Enviroment variables
   ENV_KMP_AFFINITY=compact,1
   ENV_KMP_BLOCKTIME=infinite
   ENV_KMP_DETERMINISTIC_REDUCTION=1
   ENV_OMP_DYNAMIC=FALSE
   ENV_KMP_LIBRARY=turnaround
   ENV_KMP_SCHEDULE=static,balanced
   ENV_KMP_STACKSIZE=256M
   ENV_OMP_NESTED=FALSE
   ENV_OMP_NUM_THREADS=576

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=static,1

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=guided

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 372.smithwa:peak:
   ENV_OMP_SCHEDULE=static,1

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99
370.mgrid331:  -mcmodel=medium

Base Optimization Flags

C benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

C++ benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

Fortran benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -align array64byte   -fp-model strict

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99
370.mgrid331:  -mcmodel=medium

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -opt-calloc   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -ansi-alias
358.botsalgn:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -ansi-alias
359.botsspar:  Same as 358.botsalgn
367.imagick:  -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias
372.smithwa:  basepeak = yes

C++ benchmarks:

376.kdtree:  basepeak = yes

Fortran benchmarks:

350.md:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
351.bwaves:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
357.bt331:  Same as 351.bwaves
360.ilbdc:  basepeak = yes
362.fma3d:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -align array64byte
363.swim:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-streaming-stores always   -opt-malloc-options=3   -align array64byte
370.mgrid331:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=3   -fp-model strict
371.applu331:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/hp-ic16.0.2-linux64.v1.html,
http://www.spec.org/omp2012/flags/HP-Platform-Flags-Intel-V1.2-Integrity-revD.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/hp-ic16.0.2-linux64.v1.xml,
http://www.spec.org/omp2012/flags/HP-Platform-Flags-Intel-V1.2-Integrity-revD.xml.
