Intel |
SPECompG_base2012 = 9.40 |
Intel R2308WTTYS (Endeavour Node, Intel Xeon |
SPECompG_peak2012 = 10.3 |
OMP2012 license: | 13 | Test date: | Mar-2016 |
---|---|---|---|
Test sponsor: | Intel | Hardware Availability: | Mar-2016 |
Tested by: | Intel | Software Availability: | Feb-2016 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2697 v4 |
CPU Characteristics: | Intel Turbo Boost Technology Disabled |
CPU MHz: | 2300 |
CPU MHz Maximum: | 3600 |
FPU: | Integrated |
CPU(s) enabled: | 36 cores, 2 chips, 18 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 Chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 45 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (8 x 16 GB 2Rx4 PC4-2400U-R) |
Disk Subsystem: | Panasas ActiveStor 14 |
Other Hardware: | -- |
Base Threads Run: | 72 |
Minimum Peak Threads: | 36 |
Maximum Peak Threads: | 72 |
Software | |
---|---|
Operating System: | Oracle Linux Server release 6.7, Kernel 3.10.0-229.20.1.el6.x86_64.knl2 |
Compiler: | C/C++/Fortran: Version 14.0.4.211 of Intel Composer XE for Linux Build 20140805 C/C++/Fortran: Version 16.0.2.181 of Intel Composer XE for Linux Build 20160204 |
Auto Parallel: | No |
File System: | Linux ext3 |
System State: | Default |
Base Pointers: | 64-bit |
Peak Pointers: | 64-bit |
Other Software: | None |

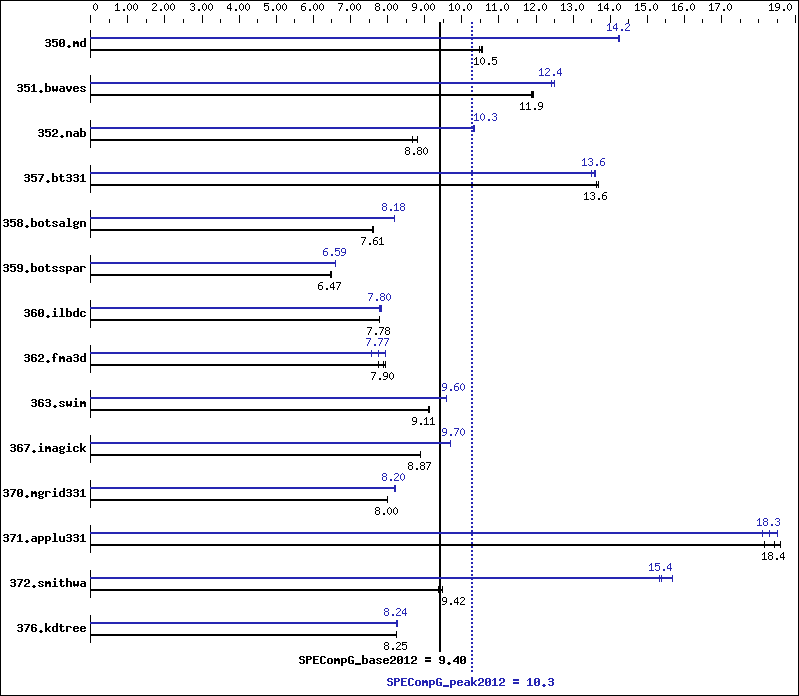

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
350.md | 72 | 438 | 10.6 | 442 | 10.5 | 440 | 10.5 | 72 | 325 | 14.2 | 325 | 14.2 | 325 | 14.2 |
351.bwaves | 72 | 380 | 11.9 | 380 | 11.9 | 382 | 11.9 | 36 | 365 | 12.4 | 365 | 12.4 | 363 | 12.5 |
352.nab | 72 | 442 | 8.80 | 449 | 8.67 | 442 | 8.80 | 72 | 377 | 10.3 | 377 | 10.3 | 376 | 10.3 |
357.bt331 | 72 | 346 | 13.7 | 348 | 13.6 | 347 | 13.6 | 72 | 349 | 13.6 | 348 | 13.6 | 351 | 13.5 |
358.botsalgn | 72 | 572 | 7.61 | 572 | 7.61 | 572 | 7.61 | 72 | 532 | 8.18 | 532 | 8.18 | 532 | 8.18 |
359.botsspar | 72 | 809 | 6.49 | 811 | 6.47 | 811 | 6.47 | 36 | 797 | 6.59 | 797 | 6.59 | 797 | 6.59 |
360.ilbdc | 72 | 458 | 7.78 | 457 | 7.78 | 457 | 7.78 | 72 | 456 | 7.80 | 458 | 7.77 | 455 | 7.82 |
362.fma3d | 72 | 481 | 7.90 | 478 | 7.95 | 490 | 7.76 | 72 | 478 | 7.95 | 502 | 7.58 | 489 | 7.77 |
363.swim | 72 | 497 | 9.12 | 497 | 9.11 | 498 | 9.11 | 36 | 472 | 9.60 | 472 | 9.59 | 472 | 9.60 |
367.imagick | 72 | 792 | 8.87 | 790 | 8.90 | 792 | 8.87 | 72 | 724 | 9.71 | 724 | 9.70 | 725 | 9.70 |
370.mgrid331 | 72 | 552 | 8.00 | 553 | 7.99 | 553 | 8.00 | 36 | 539 | 8.20 | 540 | 8.19 | 539 | 8.20 |
371.applu331 | 72 | 329 | 18.4 | 334 | 18.2 | 326 | 18.6 | 72 | 335 | 18.1 | 331 | 18.3 | 327 | 18.5 |
372.smithwa | 72 | 572 | 9.37 | 565 | 9.49 | 569 | 9.42 | 36 | 349 | 15.4 | 350 | 15.3 | 342 | 15.7 |
376.kdtree | 72 | 546 | 8.24 | 545 | 8.25 | 545 | 8.25 | 72 | 545 | 8.25 | 546 | 8.24 | 546 | 8.24 |
The config file option 'submit' was used.
Sysinfo program /panfs/projects/innl/aknyaze1/OMP2012/1.0/Docs/sysinfo $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647 running on ewb264 Sun Mar 13 01:50:41 2016 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/omp2012/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2697 v4 @ 2.30GHz 2 "physical id"s (chips) 72 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 18 siblings : 36 physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 cache size : 46080 KB From /proc/meminfo MemTotal: 131920288 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Oracle Linux Server release 6.7 From /etc/*release* /etc/*version* oracle-release: Oracle Linux Server release 6.7 os-release: NAME="Oracle Linux Server" VERSION="6.7" ID="ol" VERSION_ID="6.7" PRETTY_NAME="Oracle Linux Server 6.7" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:oracle:linux:6:7:server" HOME_URL="https://linux.oracle.com/" redhat-release: Red Hat Enterprise Linux Server release 6.7 (Santiago) system-release: Oracle Linux Server release 6.7 system-release-cpe: cpe:/o:oracle:linux:6:7:server uname -a: Linux ewb264 3.10.0-229.20.1.el6.x86_64.knl2 #2 SMP Tue Dec 8 22:27:38 MST 2015 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Mar 10 14:11 SPEC is set to: /panfs/projects/innl/aknyaze1/OMP2012/1.0 Filesystem Type Size Used Avail Use% Mounted on panfs://36.101.211.31/projects panfs 78T 63T 16T 81% /panfs/projects Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode' (End of data from sysinfo program)
======================================================================== General base OMP Library Settings ENV_KMP_AFFINITY=compact,0 ======================================================================== General peak OMP Library Settings ENV_KMP_AFFINITY=compact,0 ======================================================================== General OMP Library Settings KMP_LIBRARY=turnaround KMP_STACKSIZE=256M KMP_BLOCKTIME=infinite OMP_DYNAMIC=FALSE OMP_NESTED=FALSE OMP_SCHEDULE=static ======================================================================== Compiler selection proxy script spec{icc/ifort/icpc/run} was used: #!/bin/sh COMPBIN=${BASH_SOURCE[0]:-$0} COMPBIN=${COMPBIN##*/spec} version=$1 shift COMPILER_ROOT_PATHS="/opt/intel/compiler" for COMPILER_ROOT_PATH in $COMPILER_ROOT_PATHS ; do if [ -e "$COMPILER_ROOT_PATH/${version}/bin/compilervars.sh" ] ; then . $COMPILER_ROOT_PATH/${version}/bin/compilervars.sh intel64 break fi done exec $COMPBIN "$@" for specrun last line is exec "$@" Compiler for base and most peak: C/C++/Fortran: Version 14.0.4.211 of Intel Composer XE for Linux Build 20140805 Compiler for some peak components (where 2016u2 is specified): C/C++/Fortran: Version 16.0.2.181 of Intel Composer XE for Linux Build 20160204 ======================================================================== 351.bwaves:peak: ENV_KMP_AFFINITY=compact,1 ENV_OMP_SCHEDULE=static,1 ======================================================================== 359.botsspar:peak: ENV_KMP_AFFINITY=compact,1 ENV_OMP_SCHEDULE=guided ======================================================================== 363.swim:peak: ENV_KMP_AFFINITY=compact,1 ======================================================================== 370.mgrid331:peak: ENV_KMP_AFFINITY=compact,1 ======================================================================== 372.smithwa:peak: ENV_OMP_SCHEDULE=static,1
specicc 2013_sp1.4.211 |
specicpc 2013_sp1.4.211 |
specifort 2013_sp1.4.211 |
350.md: | -FR |
357.bt331: | -mcmodel=medium |
363.swim: | -mcmodel=medium |
367.imagick: | -std=c99 |
-O3 -openmp -ipo -xCORE-AVX2 -ansi-alias |
-O3 -openmp -ipo -xCORE-AVX2 -ansi-alias |
-O3 -openmp -ipo -xCORE-AVX2 -align array64byte |
specicc 2016u2 | |
359.botsspar: | specicc 2013_sp1.4.211 |
372.smithwa: | specicc 2013_sp1.4.211 |
specicpc 2013_sp1.4.211 |
specifort 2013_sp1.4.211 | |
350.md: | specifort 2016u2 |
371.applu331: | specifort 2016u2 |
350.md: | -FR |
357.bt331: | -mcmodel=medium |
363.swim: | -mcmodel=medium |
367.imagick: | -std=c99 |
352.nab: | -O3 -qopenmp -ipo -xCORE-AVX2 -fno-alias -opt-malloc-options=1 -opt-calloc -fp-model fast=2 -no-prec-div -no-prec-sqrt -ansi-alias |
358.botsalgn: | -O3 -qopenmp -ipo -xCORE-AVX2 -fno-alias -ansi-alias |
359.botsspar: | -O3 -openmp -ipo -xCORE-AVX2 -fno-alias -ansi-alias |
367.imagick: | -O3 -qopenmp -ipo -xCORE-AVX2 -ansi-alias |
372.smithwa: | -O3 -openmp -ipo -xCORE-AVX2 -fno-alias -opt-streaming-stores always -opt-malloc-options=1 -ansi-alias |
-O3 -openmp -ipo -xCORE-AVX2 -fno-alias -ansi-alias |
350.md: | -O3 -qopenmp -ipo -xCORE-AVX2 -fno-alias -opt-malloc-options=1 -fp-model fast=2 -no-prec-div -no-prec-sqrt -align array64byte |
351.bwaves: | -O3 -openmp -ipo -xCORE-AVX2 -fno-alias -fp-model fast=2 -no-prec-div -no-prec-sqrt -align array64byte |
357.bt331: | Same as 351.bwaves |
360.ilbdc: | -O3 -openmp -ipo -xCORE-AVX2 -fno-alias -align array64byte |
362.fma3d: | Same as 360.ilbdc |
363.swim: | -O3 -openmp -ipo -xCORE-AVX2 -fno-alias -opt-streaming-stores always -opt-malloc-options=3 -align array64byte |
370.mgrid331: | -O3 -openmp -ipo -xCORE-AVX2 -fno-alias -opt-malloc-options=3 -align array64byte |
371.applu331: | -O3 -qopenmp -ipo -xCORE-AVX2 -align array64byte |
