SPEC® OMPG2012 Result

Copyright 2012-2016 Standard Performance Evaluation Corporation

Intel

SPECompG_base2012 = 10.2

Intel R2308WTTYS (Endeavour Node, Intel Xeon
E5-2697 v4, 2.3GHz, DDR4-2400 MHz,SMT ON Turbo
ON)

SPECompG_peak2012 = 11.3

OMP2012 license: 13 Test date: Mar-2016
Test sponsor: Intel Hardware Availability: Mar-2016
Tested by: Intel Software Availability: Feb-2016

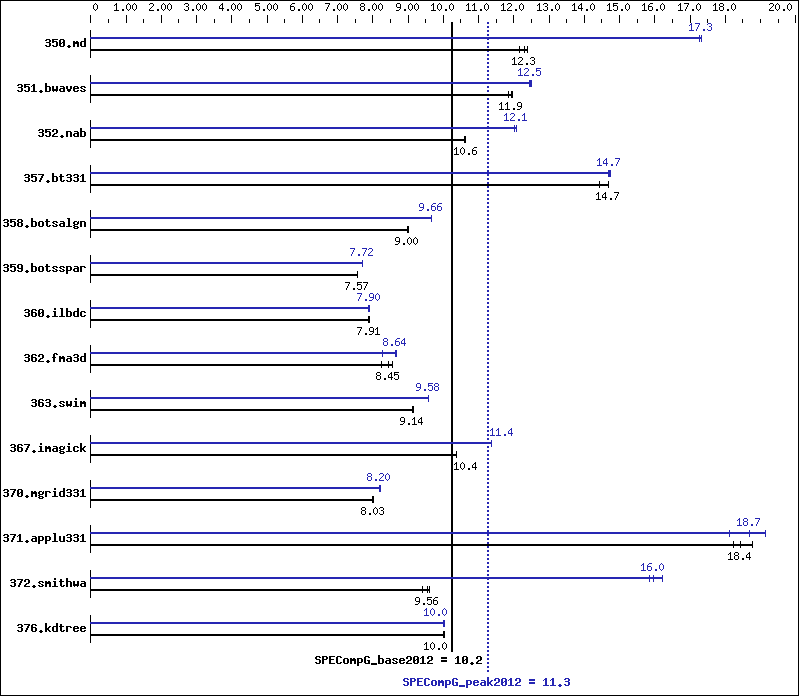

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2697 v4
CPU Characteristics: Intel Turbo Boost Technology up to 3.60 GHz
CPU MHz: 2300
CPU MHz Maximum: 3600
FPU: Integrated
CPU(s) enabled: 36 cores, 2 chips, 18 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (8 x 16 GB 2Rx4 PC4-2400U-R)
Disk Subsystem: Panasas ActiveStor 14
Other Hardware: --
Base Threads Run: 72
Minimum Peak Threads: 36
Maximum Peak Threads: 72
Software
Operating System: Oracle Linux Server release 6.7, Kernel
3.10.0-229.20.1.el6.x86_64.knl2
Compiler: C/C++/Fortran: Version 14.0.4.211 of Intel
Composer XE for Linux Build 20140805
C/C++/Fortran: Version 16.0.2.181 of Intel
Composer XE for Linux Build 20160204
Auto Parallel: No
File System: Linux ext3
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 72 374   12.4   376   12.3   380   12.2   72 268   17.3   267   17.3   267   17.3
351.bwaves 72 380   11.9   379   12.0   382   11.9   36 364   12.5   363   12.5   363   12.5
352.nab 72 367   10.6   366   10.6   367   10.6   72 322   12.1   323   12.0   322   12.1
357.bt331 72 323   14.7   328   14.4   323   14.7   72 323   14.7   322   14.7   321   14.7
358.botsalgn 72 484   9.00  484   9.00  483   9.00  72 450   9.66  450   9.66  450   9.66
359.botsspar 72 693   7.57  693   7.57  695   7.56  36 681   7.71  680   7.72  680   7.72
360.ilbdc 72 450   7.92  450   7.91  452   7.88  72 450   7.91  452   7.88  451   7.90
362.fma3d 72 449   8.45  445   8.55  461   8.23  72 438   8.67  440   8.64  459   8.29
363.swim 72 497   9.12  496   9.14  495   9.14  36 473   9.58  473   9.57  473   9.58
367.imagick 72 677   10.4   677   10.4   678   10.4   72 619   11.4   619   11.4   618   11.4
370.mgrid331 72 550   8.03  552   8.01  550   8.03  36 540   8.19  539   8.20  538   8.21
371.applu331 72 329   18.4   332   18.2   323   18.8   72 324   18.7   317   19.1   335   18.1
372.smithwa 72 569   9.43  560   9.56  558   9.61  36 331   16.2   338   15.8   336   16.0
376.kdtree 72 450   10.0   448   10.0   449   10.0   72 449   10.0   449   10.0   449   10.0

Submit Notes

The config file option 'submit' was used.

Platform Notes

 Sysinfo program /panfs/projects/innl/aknyaze1/OMP2012/1.0/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on ewb261 Sun Mar 13 01:46:38 2016

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2697 v4 @ 2.30GHz
       2 "physical id"s (chips)
       72 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 18
       siblings  : 36
       physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
    cache size : 46080 KB

 From /proc/meminfo
    MemTotal:       131920288 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Oracle Linux Server release 6.7

 From /etc/*release* /etc/*version*
    oracle-release: Oracle Linux Server release 6.7
    os-release:
       NAME="Oracle Linux Server"
       VERSION="6.7"
       ID="ol"
       VERSION_ID="6.7"
       PRETTY_NAME="Oracle Linux Server 6.7"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:oracle:linux:6:7:server"
       HOME_URL="https://linux.oracle.com/"
    redhat-release: Red Hat Enterprise Linux Server release 6.7 (Santiago)
    system-release: Oracle Linux Server release 6.7
    system-release-cpe: cpe:/o:oracle:linux:6:7:server

 uname -a:
    Linux ewb261 3.10.0-229.20.1.el6.x86_64.knl2 #2 SMP Tue Dec 8 22:27:38 MST
    2015 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Mar 10 14:13

 SPEC is set to: /panfs/projects/innl/aknyaze1/OMP2012/1.0
    Filesystem           Type   Size  Used Avail Use% Mounted on
    panfs://36.101.211.31/projects
                         panfs   78T   63T   16T  81% /panfs/projects

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,0

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,0

 ========================================================================
 General OMP Library Settings
   KMP_LIBRARY=turnaround
   KMP_STACKSIZE=256M
   KMP_BLOCKTIME=infinite
   OMP_DYNAMIC=FALSE
   OMP_NESTED=FALSE
   OMP_SCHEDULE=static
 ========================================================================
 Compiler selection proxy script spec{icc/ifort/icpc/run} was used:
 #!/bin/sh
 COMPBIN=${BASH_SOURCE[0]:-$0}
 COMPBIN=${COMPBIN##*/spec}
 version=$1
 shift

 COMPILER_ROOT_PATHS="/opt/intel/compiler"

 for COMPILER_ROOT_PATH in $COMPILER_ROOT_PATHS ; do
 if [ -e "$COMPILER_ROOT_PATH/${version}/bin/compilervars.sh" ] ; then
 . $COMPILER_ROOT_PATH/${version}/bin/compilervars.sh intel64
 break
 fi
 done

 exec $COMPBIN "$@"
 for specrun last line is
 exec "$@"
 Compiler for base and most peak: C/C++/Fortran: Version 14.0.4.211 of Intel Composer XE for Linux Build 20140805
 Compiler for some peak components (where 2016u2 is specified): C/C++/Fortran: Version 16.0.2.181 of Intel Composer XE for Linux Build 20160204
 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=static,1

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=guided

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 370.mgrid331:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 372.smithwa:peak:
   ENV_OMP_SCHEDULE=static,1

Base Compiler Invocation

C benchmarks:

 specicc 2013_sp1.4.211

C++ benchmarks:

 specicpc 2013_sp1.4.211

Fortran benchmarks:

 specifort 2013_sp1.4.211

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

C++ benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

Fortran benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -align array64byte

Peak Compiler Invocation

C benchmarks (except as noted below):

 specicc 2016u2
359.botsspar:  specicc 2013_sp1.4.211
372.smithwa:  specicc 2013_sp1.4.211

C++ benchmarks:

 specicpc 2013_sp1.4.211

Fortran benchmarks (except as noted below):

 specifort 2013_sp1.4.211
350.md:  specifort 2016u2
371.applu331:  specifort 2016u2

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -qopenmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -opt-calloc   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -ansi-alias
358.botsalgn:  -O3   -qopenmp   -ipo    -xCORE-AVX2   -fno-alias   -ansi-alias
359.botsspar:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -ansi-alias
367.imagick:  -O3   -qopenmp   -ipo    -xCORE-AVX2   -ansi-alias
372.smithwa:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-streaming-stores always   -opt-malloc-options=1   -ansi-alias

C++ benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -ansi-alias

Fortran benchmarks:

350.md:  -O3   -qopenmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
351.bwaves:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
357.bt331:  Same as 351.bwaves
360.ilbdc:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -align array64byte
362.fma3d:  Same as 360.ilbdc
363.swim:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-streaming-stores always   -opt-malloc-options=3   -align array64byte
370.mgrid331:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=3   -align array64byte
371.applu331:  -O3   -qopenmp   -ipo    -xCORE-AVX2   -align array64byte

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20160331.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20160331.xml.
