Cisco Systems |
SPECompG_base2012 = 20.8 |
|
Cisco UCS C460 M4 (Intel Xeon E7-8890 v3, 2.50 |
SPECompG_peak2012 = Not Run |
| OMP2012 license: | 9019 | Test date: | May-2015 |
|---|---|---|---|
| Test sponsor: | Cisco Systems | Hardware Availability: | May-2015 |
| Tested by: | Cisco Systems | Software Availability: | Jul-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8890 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.30 GHz |
| CPU MHz: | 2500 |
| CPU MHz Maximum: | 3300 |
| FPU: | Integrated |
| CPU(s) enabled: | 72 cores, 4 chips, 18 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2,3,4 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 45 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (64 x 16 2Rx4 PC4-2133P-R, running at 1600 MHz) |
| Disk Subsystem: | 1 X 1 TB SAS, 10K RPM |
| Other Hardware: | -- |
| Base Threads Run: | 144 |
| Minimum Peak Threads: | -- |
| Maximum Peak Threads: | -- |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP3 (x86_64) |
| Compiler: | C/C++/Fortran: Version 15.0.0.90 of Intel Composer XE for Linux Build 20140723 |
| Auto Parallel: | No |
| File System: | Linux ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | Kernel 3.0.76-0.11-default |

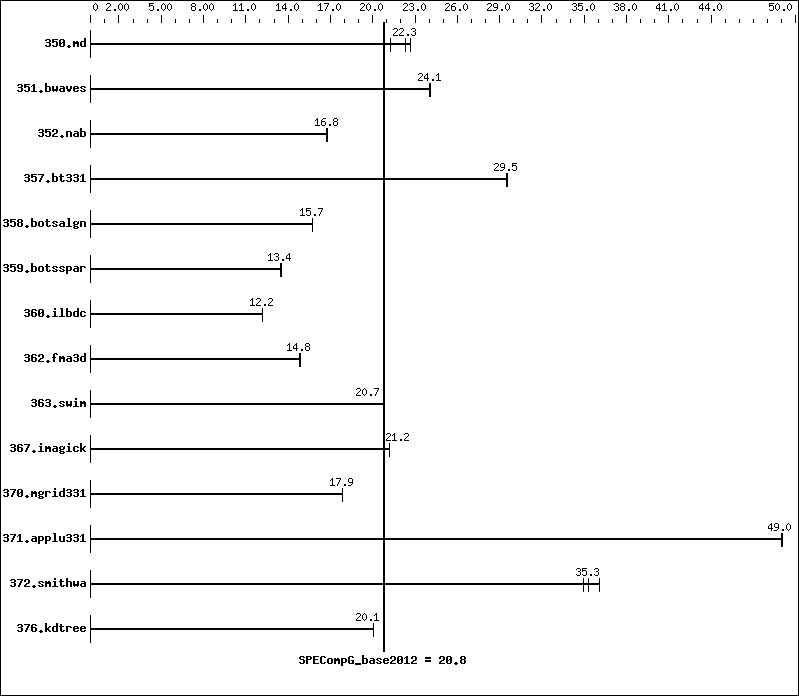

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 350.md | 144 | 218 | 21.3 | 207 | 22.3 | 204 | 22.7 | |||||||
| 351.bwaves | 144 | 188 | 24.1 | 188 | 24.1 | 188 | 24.1 | |||||||
| 352.nab | 144 | 233 | 16.7 | 232 | 16.8 | 232 | 16.8 | |||||||
| 357.bt331 | 144 | 161 | 29.5 | 161 | 29.5 | 161 | 29.5 | |||||||
| 358.botsalgn | 144 | 277 | 15.7 | 277 | 15.7 | 277 | 15.7 | |||||||
| 359.botsspar | 144 | 391 | 13.4 | 389 | 13.5 | 391 | 13.4 | |||||||
| 360.ilbdc | 144 | 293 | 12.2 | 293 | 12.2 | 293 | 12.1 | |||||||
| 362.fma3d | 144 | 257 | 14.8 | 257 | 14.8 | 256 | 14.9 | |||||||
| 363.swim | 144 | 218 | 20.7 | 218 | 20.8 | 218 | 20.7 | |||||||
| 367.imagick | 144 | 332 | 21.2 | 332 | 21.2 | 332 | 21.2 | |||||||
| 370.mgrid331 | 144 | 247 | 17.9 | 247 | 17.9 | 247 | 17.9 | |||||||
| 371.applu331 | 144 | 124 | 49.0 | 123 | 49.1 | 124 | 49.0 | |||||||
| 372.smithwa | 144 | 152 | 35.3 | 149 | 36.0 | 153 | 34.9 | |||||||
| 376.kdtree | 144 | 224 | 20.1 | 224 | 20.1 | 224 | 20.1 | |||||||
Platform Notes
Sysinfo program /opt/omp2012/Docs/sysinfo $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647 running on sles11sp3 Sun May 3 22:45:13 2015 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/omp2012/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-8890 v3 @ 2.50GHz 4 "physical id"s (chips) 144 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 18 siblings : 36 physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 physical 2: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 physical 3: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 cache size : 46080 KB From /proc/meminfo MemTotal: 1058693944 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux sles11sp3 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013 (ccab990) x86_64 x86_64 x86_64 GNU/Linux run-level 3 May 2 16:40 last=S SPEC is set to: /opt/omp2012 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext3 804G 43G 721G 6% / Additional information from dmidecode: BIOS Cisco Systems, Inc. C460M4.2.0.4.20.040420150215 04/04/2015 Memory: 64x 16 GB 64x 0xCE00 M393A2G40DB0-CPB 16 GB 1600 MHz 32x NO DIMM NO DIMM 1600 MHz (End of data from sysinfo program)
General Notes
======================================================================== BIOS settings notes: Intel Turbo Boost Technology (Turbo) : Enabled Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled CPU performance set to Enterprise Processor Power State set to C0/C1 Power Technology set to Performance Memory RAS configuration set to Maximum Performance Energy Performance BIAS setting set to Balanced Performance Memory Power Saving Mode set to Disabled General OMP Library Settings ENV_KMP_LIBRARY=turnaround ENV_OMP_SCHEDULE=static ENV_KMP_BLOCKTIME=infinite ENV_OMP_DYNAMIC=FALSE ENV_OMP_NESTED=FALSE ======================================================================== General base OMP Library Settings ENV_KMP_AFFINITY=compact,0 ======================================================================== General peak OMP Library Settings ENV_KMP_AFFINITY=compact,0 ======================================================================== Per benchmark peak OMP Library Settings ======================================================================== 351.bwaves:peak: ENV_KMP_AFFINITY=compact,1 ENV_OMP_SCHEDULE=static,1 ======================================================================== 362.fma3d:peak: ENV_KMP_AFFINITY=compact,1 ENV_OMP_SCHEDULE=guided ======================================================================== ENV_OMP_SCHEDULE=static,1 ======================================================================== 363.swim:peak: ENV_KMP_AFFINITY=compact,1 ======================================================================== 372.smithwa:peak: ENV_KMP_AFFINITY=compact,1
Base Portability Flags
| 350.md: | -FR |
| 357.bt331: | -mcmodel=medium |
| 363.swim: | -mcmodel=medium |
| 367.imagick: | -std=c99 |
