SPEC® OMPG2012 Result

Copyright 2012-2015 Standard Performance Evaluation Corporation

Intel

SPECompG_base2012 = 19.6

S4TR2KUQ (Intel Xeon E7-8890 v3)

SPECompG_peak2012 = 21.0
OMP2012 license: 13 Test date: May-2015
Test sponsor: Intel Hardware Availability: May-2015
Tested by: Intel Software Availability: Jan-2014

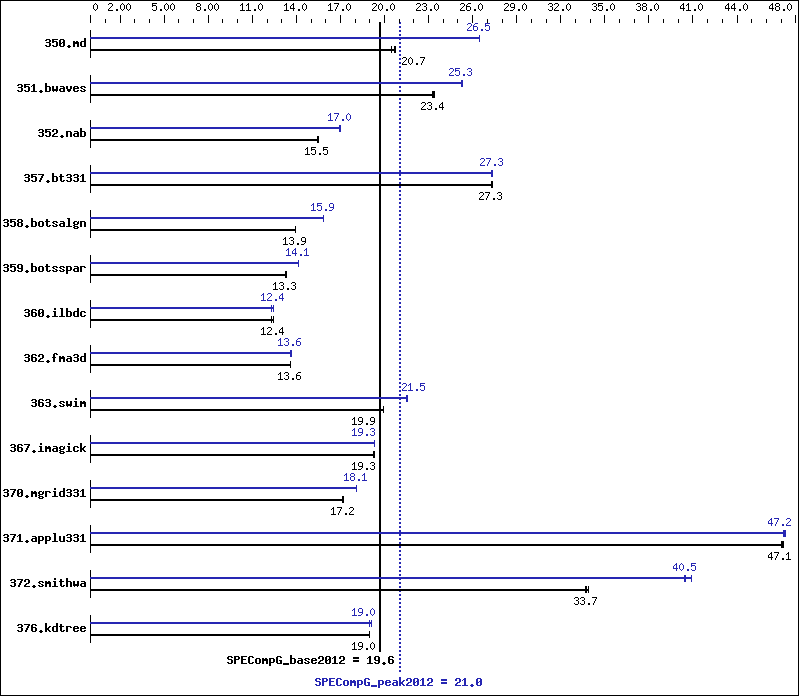

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8890 v3
CPU Characteristics:
CPU MHz: 2500
CPU MHz Maximum: 3300
FPU: Integrated
CPU(s) enabled: 72 cores, 4 chips, 18 cores/chip, 2 threads/core
CPU(s) orderable: 1-4 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory: 512 GB (32 x 16 GB 2Rx4 PC4-17000R-15, ECC)
Disk Subsystem: Panasas ActiveStor 14 connected via 1Gbps Ethernet
Other Hardware: --
Base Threads Run: 144
Minimum Peak Threads: 72
Maximum Peak Threads: 144
Software
Operating System: Red Hat Enterprise Linux Server release 6.5
Compiler: C/C++/Fortran: Version 14.0.2.144 of Intel
Composer XE for Linux Build 20140120
Auto Parallel: No
File System: Linux ext3
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 144 223   20.7  224   20.7  226   20.5  144 175   26.4  175   26.5  175   26.5
351.bwaves 144 195   23.3  194   23.4  194   23.4  72 179   25.3  179   25.3  179   25.2
352.nab 144 251   15.5  252   15.4  252   15.5  144 230   16.9  229   17.0  229   17.0
357.bt331 144 173   27.3  174   27.3  174   27.3  144 173   27.4  173   27.3  174   27.3
358.botsalgn 144 312   13.9  312   13.9  312   13.9  144 274   15.9  274   15.9  274   15.9
359.botsspar 144 393   13.3  396   13.3  396   13.2  72 371   14.1  371   14.2  371   14.1
360.ilbdc 144 287   12.4  286   12.4  289   12.3  144 290   12.3  286   12.4  286   12.4
362.fma3d 144 279   13.6  279   13.6  279   13.6  144 279   13.6  280   13.6  278   13.7
363.swim 144 227   20.0  228   19.9  227   19.9  72 210   21.5  211   21.5  210   21.5
367.imagick 144 364   19.3  365   19.3  364   19.3  144 364   19.3  364   19.3  364   19.3
370.mgrid331 144 257   17.2  258   17.1  257   17.2  72 244   18.1  244   18.1  244   18.1
371.applu331 144 129   47.0  129   47.1  129   47.1  144 128   47.3  129   47.2  128   47.2
372.smithwa 144 158   33.9  159   33.7  159   33.7  72 133   40.4  132   40.5  131   40.9
376.kdtree 144 237   19.0  237   19.0  237   19.0  144 235   19.1  237   19.0  237   19.0

Platform Notes

 Sysinfo program /panfs/projects/innl/aknyaze1/OMP2012/1.0/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on ehx07 Fri May 22 22:04:37 2015

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7-8890 v3 @ 2.50GHz
       4 "physical id"s (chips)
       144 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 18
       siblings  : 36
       physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 2: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 3: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
    cache size : 46080 KB

 From /proc/meminfo
    MemTotal:       529146648 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.5 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux ehx07 2.6.32-358.6.2.el6.x86_64.crt1 #4 SMP Fri May 17 15:33:33 MDT
    2013 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 May 22 05:08

 SPEC is set to: /panfs/projects/innl/aknyaze1/OMP2012/1.0
    Filesystem           Type   Size  Used Avail Use% Mounted on
    panfs://36.101.211.31/projects
                         panfs   32T   28T  4.1T  88% /panfs/projects

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes

 ========================================================================
 BIOS settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled

 ========================================================================
 General OMP Library Settings
   ENV_KMP_LIBRARY=turnaround
   ENV_KMP_STACKSIZE=190M
   ENV_KMP_BLOCKTIME=infinite
   ENV_OMP_DYNAMIC=FALSE
   ENV_OMP_NESTED=FALSE
   ENV_OMP_SCHEDULE=static

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,0

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,0

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=static,1

 ========================================================================
 357.bt331:peak:
   ENV_OMP_SCHEDULE=static,1

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=guided

 ========================================================================
 362.fma3d:peak:
   ENV_OMP_SCHEDULE=static,1

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 370.mgrid331:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 372.smithwa:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=static,1

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

C++ benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias

Fortran benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -align array64byte

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -opt-calloc   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -ansi-alias
358.botsalgn:  -O3   -openmp   -ipo    -xSSE4.2   -fno-alias   -ansi-alias
359.botsspar:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -ansi-alias
367.imagick:  -O3   -openmp   -ipo    -xCORE-AVX2   -ansi-alias
372.smithwa:  -O3   -openmp   -ipo    -xSSE4.2   -fno-alias   -opt-streaming-stores always   -opt-malloc-options=1   -ansi-alias

C++ benchmarks:

 -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -ansi-alias

Fortran benchmarks:

350.md:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -opt-malloc-options=1   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
351.bwaves:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
357.bt331:  Same as 351.bwaves
360.ilbdc:  -O3   -openmp   -ipo    -xCORE-AVX2   -opt-malloc-options=1   -align array64byte
362.fma3d:  -O3   -openmp   -ipo    -xCORE-AVX2   -fno-alias   -align array64byte
363.swim:  -O3   -openmp   -ipo    -xSSE4.2   -fno-alias   -opt-streaming-stores always   -opt-malloc-options=3   -align array64byte
370.mgrid331:  -O3   -openmp   -ipo    -xSSE4.2   -fno-alias   -opt-malloc-options=3   -align array64byte
371.applu331:  -O3   -openmp   -ipo    -xCORE-AVX2   -align array64byte

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20140219.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic13.0-linux64.20140219.xml.

SPEC is a registered trademark of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2012-2015 Standard Performance Evaluation Corporation
Tested with SPEC OMP2012 v1.0.
Report generated on Wed Jun 10 11:48:15 2015 by SPEC OMP2012 HTML formatter v541.
Originally published on 10 June 2015.
