SPEC® OMPG2012 Result

Copyright 2012-2014 Standard Performance Evaluation Corporation

Dell (Test Sponsor: Indiana University)

SPECompG_base2012 = 1.00

SPECompG_energy_base2012 = 1.03

Dell PowerEdge 2970

SPECompG_peak2012 = Not Run

SPECompG_energy_peak2012 = --

OMP2012 license: 3440A Test date: Apr-2014
Test sponsor: Indiana University Hardware Availability: Jun-2010
Tested by: Indiana University Software Availability: Mar-2014

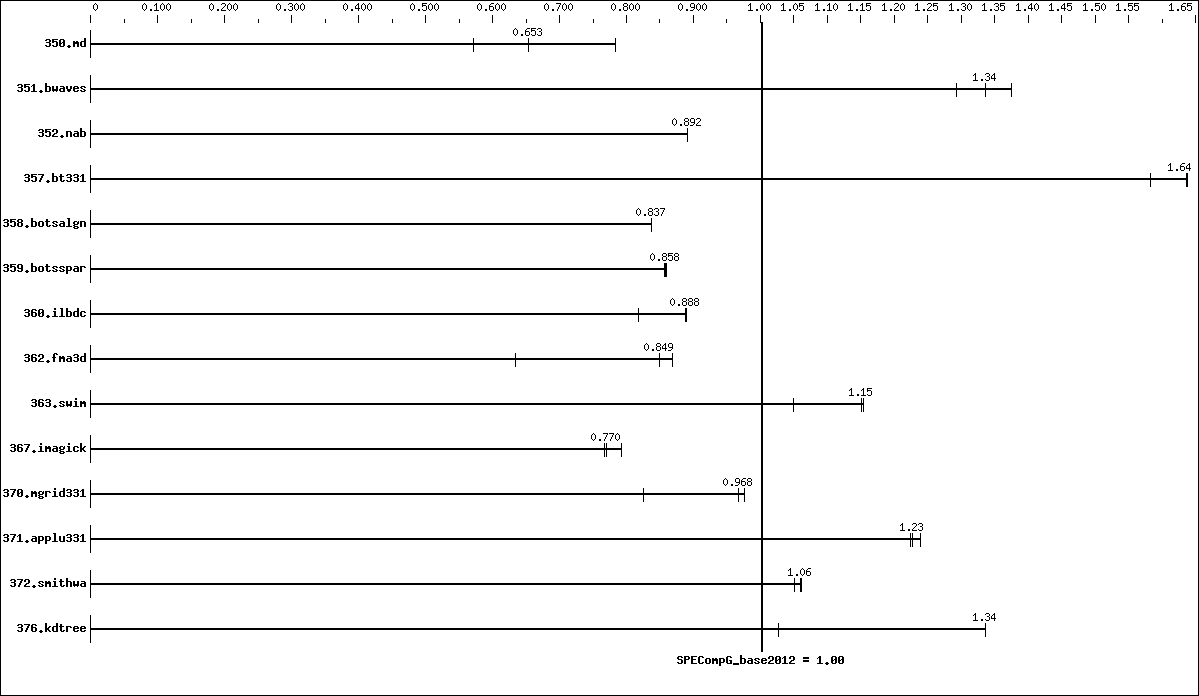

Benchmark results graph
Hardware
CPU Name: Quad-Core AMD Opteron 2374 HE
CPU Characteristics:
CPU MHz: 2200
CPU MHz Maximum: 2200
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8 x 4 GB 2Rx4 PC2-6400R-6, ECC)
Disk Subsystem: 704 GB (SATA 7200 RPM, RAID 5)
Other Hardware: None
Base Threads Run: 8
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: Red Hat Enterprise Linux Server release 6.5
(Santiago) Kernel 2.6.32-431.3.1.el6.x86_64
Compiler: C/C++/Fortran: Version 14.3 of the PGI Compilers
Auto Parallel: No
File System: ext4
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None
Power
Power Supply: 1 x 750 W
Power Supply Details: Dell Z750P-00
Max. Power (W): 346.44
Idle Power (W): 204.62
Min. Temperature (C): 24.69
Power Analyzer
Power Analyzer: Power Analyzer
Hardware Vendor: ZES Zimmer
Model: LMG450
Serial Number: 11911308
Input Connection: RS232 via USB-adapter
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Calibration By: ZES Zimmer
Calibration Label: 0431191001
Calibration Date: 08.26.2013
PTDaemon Version: 1.6.2 (372e138a; 2013-12-04)
Setup Description: --
Current Ranges Used: 2.5A, 5.0A
Voltage Range Used: 130V
Temperature Meter
Temperature Meter: Temperature Meter
Hardware Vendor: Digi
Model: Watchport/H
Serial Number: --
Input Connection: USB
PTDaemon Version: 1.6.2 (372e138a; 2013-12-04)
Setup Description: positioned in front of intake fan

Base Results Table

Benchmark Threads Seconds Ratio Energy
(kJ)
Maximum
Power
Average
Power
Energy
Ratio
Seconds Ratio Energy
(kJ)
Maximum
Power
Average
Power
Energy
Ratio
Seconds Ratio Energy
(kJ)
Maximum
Power
Average
Power
Energy
Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 8 5912 0.783  1550   277   261   0.812  8107 0.571  2130   280   263   0.588  7087 0.653  1840   278   260   0.680
351.bwaves 8 3504 1.29   1070   322   306   1.25   3295 1.37   1020   323   310   1.31   3389 1.34   1040   322   306   1.29
352.nab 8 4363 0.892  1180   281   270   0.915  4363 0.892  1170   277   268   0.922  4366 0.891  1170   277   267   0.925
357.bt331 8 2897 1.64   872   330   301   1.68   2896 1.64   877   330   303   1.67   2994 1.58   899   329   300   1.63
358.botsalgn 8 5195 0.837  1410   275   272   0.904  5195 0.837  1410   281   272   0.904  5196 0.837  1410   273   271   0.909
359.botsspar 8 6116 0.858  1740   297   285   0.905  6111 0.859  1730   299   284   0.908  6131 0.856  1740   293   284   0.904
360.ilbdc 8 4001 0.890  1190   307   299   0.924  4011 0.888  1210   314   302   0.911  4352 0.818  1270   305   293   0.866
362.fma3d 8 4377 0.868  1250   296   286   0.901  4475 0.849  1270   293   284   0.888  5998 0.634  1650   293   276   0.682
363.swim 8 3937 1.15   1230   317   312   1.13   3925 1.15   1210   318   309   1.14   4316 1.05   1330   319   309   1.04
367.imagick 8 8875 0.792  2510   295   283   0.857  9133 0.770  2570   295   281   0.837  9158 0.768  2580   295   281   0.835
370.mgrid331 8 5355 0.825  1630   320   304   0.839  4525 0.977  1400   326   308   0.979  4567 0.968  1410   324   309   0.968
371.applu331 8 4953 1.22   1540   324   312   1.21   4940 1.23   1540   324   312   1.21   4890 1.24   1520   323   311   1.23
372.smithwa 8 5056 1.06   1670   343   330   1.10   5098 1.05   1680   346   329   1.09   5053 1.06   1660   346   329   1.10
376.kdtree 8 3369 1.34   959   295   285   1.45   4383 1.03   1250   295   284   1.11   3367 1.34   965   294   287   1.44

Platform Notes

 Sysinfo program /usr/local/energy_measurement/OMP2012-home/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on energyvmhost.uits.iu.edu Sun Mar 23 17:02:25 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Quad-Core AMD Opteron(tm) Processor 2374 HE
       2 "physical id"s (chips)
       8 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 4
       siblings  : 4
       physical 0: cores 0 1 2 3
       physical 1: cores 0 1 2 3
    cache size : 512 KB

 From /proc/meminfo
    MemTotal:       32939928 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux energyvmhost.uits.iu.edu 2.6.32-431.3.1.el6.x86_64 #1 SMP Fri Dec 13
    06:58:20 EST 2013 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Mar 10 14:42

 SPEC is set to: /usr/local/energy_measurement/OMP2012-home
    Filesystem         Type  Size  Used Avail Use% Mounted on
    /dev/mapper/vg0-vm ext4  704G  443G  226G  67% /var/lib/libvirt

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes

 Environment:
      ENV_OMP_NESTED=FALSE
      OMP_NESTED=FALSE
      ENV_OMP_DYNAMIC=FALSE
      ENV_OMP_NUM_THREADS=8

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgCC

Fortran benchmarks:

 pgfortran

Base Portability Flags

350.md:  -Mfree
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium

Base Optimization Flags

C benchmarks:

 -fast   -mp   -Mipa=fast   -Mipa=inline   -Msmartalloc=huge   -Mfprelaxed

C++ benchmarks:

 -fast   -mp   -Mipa=fast   -Mipa=inline   -Msmartalloc=huge   -Mfprelaxed

Fortran benchmarks:

350.md:  -fast   -mp   -Mipa=fast   -Mipa=inline   -Msmartalloc=huge   -Mfprelaxed
351.bwaves:  Same as 350.md
357.bt331:  -fast   -mp   -Mipa=fast   -Mipa=inline   -Msmartalloc=huge   -Mfprelaxed   -Bdynamic(*)
360.ilbdc:  Same as 350.md
362.fma3d:  Same as 350.md
363.swim:  Same as 357.bt331
370.mgrid331:  Same as 350.md
371.applu331:  Same as 350.md

(*) Indicates an optimization flag that was found in a portability variable.


The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/pgi2013_linux_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/pgi2013_linux_flags.xml.
