SPEC® OMPG2012 Result

Copyright 2012-2014 Standard Performance Evaluation Corporation

SGI

SPECompG_base2012 = 61.9

SGI UV 2000(Intel Xeon E5-4627 v2, 3.30 GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 14 Test date: Feb-2014
Test sponsor: SGI Hardware Availability: Mar-2014
Tested by: SGI Software Availability: Oct-2013

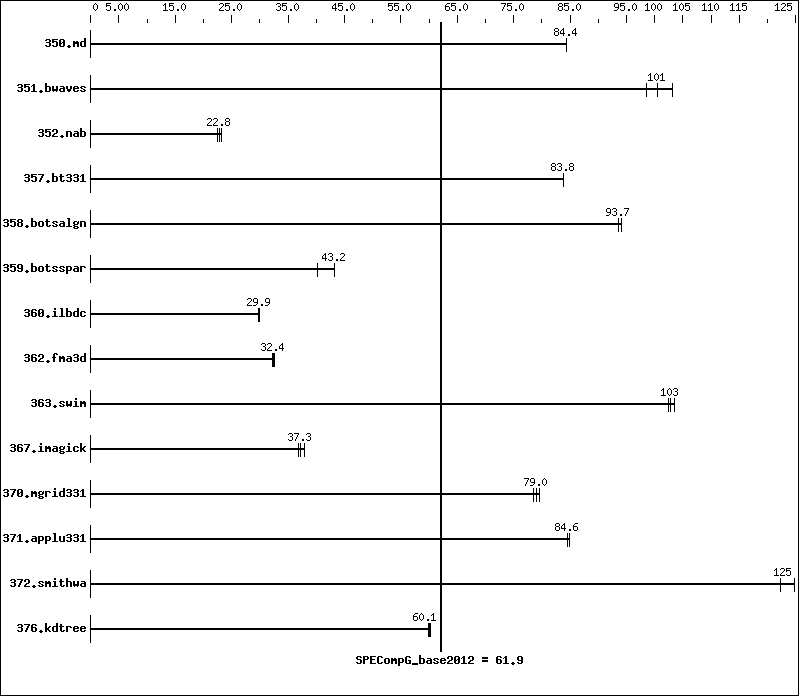

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-4627 v2
CPU Characteristics: Intel Turbo Boost Technology up to 3.6 GHz
CPU MHz: 3300
CPU MHz Maximum: 3600
FPU: Integrated
CPU(s) enabled: 512 cores, 64 chips, 8 cores/chip
CPU(s) orderable: 2-256 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory: 4 TB (256 x 16 GB 2Rx4 PC3-14900R-13, ECC)
Disk Subsystem: 14.4 TB RAID 6
48 x 300 GB SAS (HITACHI - ULTRASTAR C10K600
SAS-6GBITS 10000RPM)
Other Hardware: None
Base Threads Run: 512
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64) SP3
Kernel: 3.0.93-0.8-default
Compiler: C/C++/Fortran: Version 14.0.1.106 of Intel
Composer XE for Linux, Build 20131008
Auto Parallel: No
File System: xfs
System State: Run level 3 ( Multi-user )
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: SGI Performance Suite 1.7, Build
709r14.sles11sp3-1310092003

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 512 54.9  84.4  54.9  84.3  54.9  84.4
351.bwaves 512 43.9  103    46.0  98.6  45.1  101
352.nab 512 170    22.8  168    23.2  172    22.6
357.bt331 512 56.5  83.9  56.6  83.7  56.6  83.8
358.botsalgn 512 46.2  94.2  46.5  93.6  46.4  93.7
359.botsspar 512 121    43.3  122    43.2  131    40.2
360.ilbdc 512 119    29.9  120    29.7  119    29.9
362.fma3d 512 118    32.2  117    32.6  117    32.4
363.swim 512 43.8  103    44.2  102    44.1  103
367.imagick 512 191    36.8  189    37.3  185    38.0
370.mgrid331 512 55.6  79.5  56.4  78.4  55.9  79.0
371.applu331 512 71.4  84.9  71.7  84.5  71.7  84.6
372.smithwa 512 43.0  125    42.9  125    43.8  122
376.kdtree 512 75.1  59.9  74.8  60.1  74.8  60.2

Submit Notes

The config file option 'submit' was used.
For all benchmarks threads were bound to cores using
the following submit command:
    dplace -x2 $command
This binds threads in order of creation, beginning
with the master thread on logical cpu 0, the first slave
thread on logical cpu 1, and so on.  The -x2 flag instructs
dplace to skip placement of the lightweight OpenMP monitor
thread, which is created prior to the slave threads.

Operating System Notes

Transparent Hugepage :
    Transparent Hugepage is disabled by
    echo never > /sys/kernel/mm/transparent_hugepage/enabled

Software Environment:
    export KMP_AFFINITY=disabled
    export KMP_STACKSIZE=200M
    export KMP_SCHEDULE=static,balanced
    export OMP_DYNAMIC=FALSE
    limit -s unlimited

Platform Notes

 Sysinfo program /store/hfeng/omp2012/1.0/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on cy022-sys Tue Feb 25 12:20:43 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-4627 v2 @ 3.30GHz
       64 "physical id"s (chips)
       512 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 8
       siblings  : 8
       physical 0: cores 0 1 2 3 4 5 6 7
       physical 1: cores 0 1 2 3 4 5 6 7
       physical 2: cores 0 1 2 3 4 5 6 7
       physical 3: cores 0 1 2 3 4 5 6 7
       physical 4: cores 0 1 2 3 4 5 6 7
       physical 5: cores 0 1 2 3 4 5 6 7
       physical 6: cores 0 1 2 3 4 5 6 7
       physical 7: cores 0 1 2 3 4 5 6 7
       physical 8: cores 0 1 2 3 4 5 6 7
       physical 9: cores 0 1 2 3 4 5 6 7
       physical 10: cores 0 1 2 3 4 5 6 7
       physical 11: cores 0 1 2 3 4 5 6 7
       physical 12: cores 0 1 2 3 4 5 6 7
       physical 13: cores 0 1 2 3 4 5 6 7
       physical 14: cores 0 1 2 3 4 5 6 7
       physical 15: cores 0 1 2 3 4 5 6 7
       physical 16: cores 0 1 2 3 4 5 6 7
       physical 17: cores 0 1 2 3 4 5 6 7
       physical 18: cores 0 1 2 3 4 5 6 7
       physical 19: cores 0 1 2 3 4 5 6 7
       physical 20: cores 0 1 2 3 4 5 6 7
       physical 21: cores 0 1 2 3 4 5 6 7
       physical 22: cores 0 1 2 3 4 5 6 7
       physical 23: cores 0 1 2 3 4 5 6 7
       physical 24: cores 0 1 2 3 4 5 6 7
       physical 25: cores 0 1 2 3 4 5 6 7
       physical 26: cores 0 1 2 3 4 5 6 7
       physical 27: cores 0 1 2 3 4 5 6 7
       physical 28: cores 0 1 2 3 4 5 6 7
       physical 29: cores 0 1 2 3 4 5 6 7
       physical 30: cores 0 1 2 3 4 5 6 7
       physical 31: cores 0 1 2 3 4 5 6 7
       physical 32: cores 0 1 2 3 4 5 6 7
       physical 33: cores 0 1 2 3 4 5 6 7
       physical 34: cores 0 1 2 3 4 5 6 7
       physical 35: cores 0 1 2 3 4 5 6 7
       physical 36: cores 0 1 2 3 4 5 6 7
       physical 37: cores 0 1 2 3 4 5 6 7
       physical 38: cores 0 1 2 3 4 5 6 7
       physical 39: cores 0 1 2 3 4 5 6 7
       physical 40: cores 0 1 2 3 4 5 6 7
       physical 41: cores 0 1 2 3 4 5 6 7
       physical 42: cores 0 1 2 3 4 5 6 7
       physical 43: cores 0 1 2 3 4 5 6 7
       physical 44: cores 0 1 2 3 4 5 6 7
       physical 45: cores 0 1 2 3 4 5 6 7
       physical 46: cores 0 1 2 3 4 5 6 7
       physical 47: cores 0 1 2 3 4 5 6 7
       physical 48: cores 0 1 2 3 4 5 6 7
       physical 49: cores 0 1 2 3 4 5 6 7
       physical 50: cores 0 1 2 3 4 5 6 7
       physical 51: cores 0 1 2 3 4 5 6 7
       physical 52: cores 0 1 2 3 4 5 6 7
       physical 53: cores 0 1 2 3 4 5 6 7
       physical 54: cores 0 1 2 3 4 5 6 7
       physical 55: cores 0 1 2 3 4 5 6 7
       physical 56: cores 0 1 2 3 4 5 6 7
       physical 57: cores 0 1 2 3 4 5 6 7
       physical 58: cores 0 1 2 3 4 5 6 7
       physical 59: cores 0 1 2 3 4 5 6 7
       physical 60: cores 0 1 2 3 4 5 6 7
       physical 61: cores 0 1 2 3 4 5 6 7
       physical 62: cores 0 1 2 3 4 5 6 7
       physical 63: cores 0 1 2 3 4 5 6 7
    cache size : 16384 KB

 From /proc/meminfo
    MemTotal:       4102437676 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 11 (x86_64)

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 11 (x86_64)
       VERSION = 11
       PATCHLEVEL = 3
    sgi-accelerate-release: SGI Accelerate 1.7, Build 709r14.sles11sp3-1310092003
    sgi-foundation-release: SGI Foundation Software 2.9, Build
    709r14.sles11sp3-1310092003
    sgi-mpi-release: SGI MPI 1.7, Build 709r14.sles11sp3-1310092003
    sgi-propack-release: SGI ProPack 708 for Linux, Build
    708r16.sles11sp2-1304162204
    sgi-release: SGI Performance Suite 1.7, Build 709r14.sles11sp3-1310092003
    sgi-upc-release: SGI UPC 1.7, Build 709r14.sles11sp3-1310092003
    sgi-xvm-release: SGI XVM 7.1, Build 709b52.sles11sp3-1312202101

 uname -a:
    Linux cy022-sys 3.0.93-0.8-default #1 SMP Tue Aug 27 08:44:18 UTC 2013
    (70ed288) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Feb 22 01:34 last=S

 SPEC is set to: /store/hfeng/omp2012/1.0
    Filesystem            Type  Size  Used Avail Use% Mounted on
    /dev/lxvm/cy022-store xfs   9.9T  7.1T  2.8T  72% /store

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -free
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -xAVX   -ipo1   -openmp   -ansi-alias   -mcmodel=medium   -shared-intel

C++ benchmarks:

 -O3   -xAVX   -ipo1   -openmp   -ansi-alias   -mcmodel=medium   -shared-intel

Fortran benchmarks:

 -O3   -xAVX   -ipo1   -openmp   -mcmodel=medium   -shared-intel

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/SGI-OMP2012-ic14.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/SGI-OMP2012-ic14.xml.
