Intel |
SPECompG_base2012 = 6.24 |
Intel R2208GZ4GC (Intel Xeon E5-2697 v2) |
SPECompG_peak2012 = 6.68 |
OMP2012 license: | 13 | Test date: | Aug-2013 |
---|---|---|---|
Test sponsor: | Intel | Hardware Availability: | Sep-2013 |
Tested by: | Intel | Software Availability: | Jun-2013 |
Hardware | |
---|---|
CPU Name: | E5-2697 v2 |
CPU Characteristics: | Turbo Enabled |
CPU MHz: | 2700 |
CPU MHz Maximum: | 3500 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 Chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 30 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 64 GB (8 x 8 GB 2Rx4 PC3-14900R-13, ECC) |
Disk Subsystem: | Panasas ActiveStor 3050 Fileserver 64 disks, 250GB/disk, 16TB total, 4 Shelves connected via 1Gbps Ethernet |
Other Hardware: | -- |
Base Threads Run: | 48 |
Minimum Peak Threads: | 24 |
Maximum Peak Threads: | 48 |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.4 |
Compiler: | C/C++/Fortran: Version 13.1.3 of Intel Composer XE for Linux Build 20130607 |
Auto Parallel: | No |
File System: | Linux ext3 |
System State: | Default |
Base Pointers: | 64-bit |
Peak Pointers: | 64-bit |
Other Software: | None |

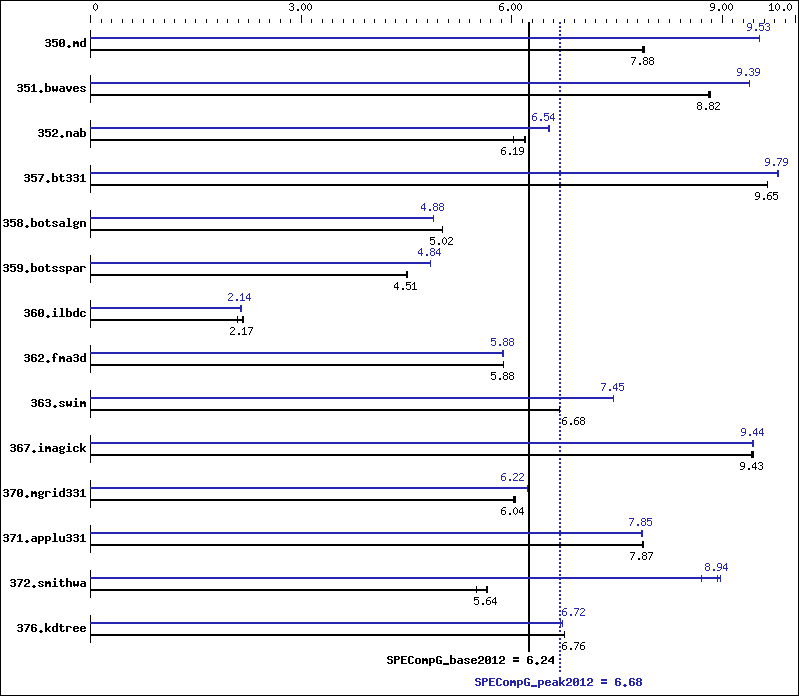

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Threads | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
350.md | 48 | 587 | 7.89 | 587 | 7.88 | 589 | 7.86 | 48 | 486 | 9.53 | 485 | 9.54 | 486 | 9.53 |
351.bwaves | 48 | 515 | 8.80 | 514 | 8.82 | 513 | 8.83 | 24 | 482 | 9.39 | 483 | 9.39 | 483 | 9.39 |
352.nab | 48 | 629 | 6.19 | 646 | 6.02 | 628 | 6.20 | 48 | 595 | 6.54 | 595 | 6.54 | 596 | 6.52 |
357.bt331 | 48 | 492 | 9.64 | 491 | 9.65 | 491 | 9.65 | 48 | 484 | 9.79 | 483 | 9.81 | 484 | 9.79 |
358.botsalgn | 48 | 867 | 5.02 | 867 | 5.02 | 867 | 5.02 | 48 | 891 | 4.88 | 891 | 4.88 | 891 | 4.88 |
359.botsspar | 48 | 1162 | 4.52 | 1165 | 4.51 | 1168 | 4.50 | 24 | 1085 | 4.84 | 1084 | 4.84 | 1084 | 4.84 |
360.ilbdc | 48 | 1642 | 2.17 | 1703 | 2.09 | 1638 | 2.17 | 48 | 1668 | 2.13 | 1662 | 2.14 | 1653 | 2.15 |
362.fma3d | 48 | 645 | 5.89 | 646 | 5.88 | 646 | 5.88 | 48 | 646 | 5.88 | 646 | 5.88 | 647 | 5.87 |
363.swim | 48 | 677 | 6.69 | 678 | 6.68 | 678 | 6.68 | 24 | 608 | 7.45 | 608 | 7.45 | 608 | 7.45 |
367.imagick | 48 | 744 | 9.45 | 745 | 9.43 | 746 | 9.43 | 48 | 744 | 9.45 | 746 | 9.43 | 745 | 9.44 |
370.mgrid331 | 48 | 731 | 6.05 | 732 | 6.04 | 733 | 6.03 | 24 | 709 | 6.23 | 710 | 6.22 | 710 | 6.22 |
371.applu331 | 48 | 770 | 7.87 | 770 | 7.87 | 769 | 7.88 | 48 | 772 | 7.85 | 772 | 7.85 | 771 | 7.86 |
372.smithwa | 48 | 950 | 5.64 | 975 | 5.50 | 947 | 5.66 | 24 | 616 | 8.70 | 597 | 8.98 | 600 | 8.94 |
376.kdtree | 48 | 666 | 6.75 | 666 | 6.76 | 666 | 6.76 | 48 | 670 | 6.72 | 670 | 6.72 | 673 | 6.69 |
Sysinfo program /panfs/panfs3/users1/aknyaze1/OMP2012/Docs/sysinfo $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647 running on esg007 Mon Aug 19 00:52:51 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/omp2012/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2697 v2 @ 2.70GHz 2 "physical id"s (chips) 48 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 12 siblings : 24 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 cache size : 30720 KB From /proc/meminfo MemTotal: 65865132 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.4 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux esg007 2.6.32-358.6.2.el6.x86_64.crt1 #4 SMP Fri May 17 15:33:33 MDT 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 16 15:51 SPEC is set to: /panfs/panfs3/users1/aknyaze1/OMP2012 Filesystem Type Size Used Avail Use% Mounted on panfs://36.101.211.1/users1 panfs 76T 11T 66T 14% /panfs/panfs3/users1 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode' (End of data from sysinfo program)
======================================================================== BIOS settings notes: Intel Turbo Boost Technology (Turbo) : Enabled ======================================================================== General OMP Library Settings ENV_KMP_LIBRARY=turnaround ENV_KMP_STACKSIZE=190M ENV_KMP_BLOCKTIME=infinite ENV_OMP_DYNAMIC=FALSE ENV_OMP_NESTED=FALSE ======================================================================== General base OMP Library Settings ENV_KMP_AFFINITY=compact,0 ======================================================================== General peak OMP Library Settings ENV_KMP_AFFINITY=compact,0 ======================================================================== Per benchmark peak OMP Library Settings ======================================================================== 351.bwaves:peak: ENV_KMP_AFFINITY=compact,1 ENV_OMP_SCHEDULE=static,1 ======================================================================== 362.fma3d:peak: ENV_KMP_AFFINITY=compact,1 ENV_OMP_SCHEDULE=guided ======================================================================== ENV_OMP_SCHEDULE=static,1 ======================================================================== 363.swim:peak: ENV_KMP_AFFINITY=compact,1 ======================================================================== 372.smithwa:peak: ENV_KMP_AFFINITY=compact,1
350.md: | -FR |
357.bt331: | -mcmodel=medium |
363.swim: | -mcmodel=medium |
367.imagick: | -std=c99 |
-O2 -openmp -ipo -xAVX -ansi-alias |
-O2 -openmp -ipo -xAVX -ansi-alias |
-O2 -openmp -ipo -xAVX -align array64byte |
350.md: | -FR |
357.bt331: | -mcmodel=medium |
363.swim: | -mcmodel=medium |
367.imagick: | -std=c99 |
352.nab: | -O3 -openmp -ipo -xAVX -fno-alias -opt-malloc-options=1 -opt-calloc -fp-model fast=2 -no-prec-div -no-prec-sqrt -ansi-alias |
358.botsalgn: | -O3 -openmp -ipo -xSSE4.2 -fno-alias -ansi-alias |
359.botsspar: | -O3 -openmp -ipo -xAVX -fno-alias -ansi-alias |
367.imagick: | -O2 -openmp -ipo -xAVX -ansi-alias |
372.smithwa: | -O2 -openmp -ipo -xSSE4.2 -fno-alias -opt-streaming-stores always -opt-malloc-options=1 -ansi-alias |
-O3 -openmp -ipo -xAVX -fno-alias -ansi-alias |
350.md: | -O2 -openmp -ipo -xAVX -fno-alias -opt-malloc-options=1 -fp-model fast=2 -no-prec-div -no-prec-sqrt -align array64byte |
351.bwaves: | -O3 -openmp -ipo -xAVX -fno-alias -fp-model fast=2 -no-prec-div -no-prec-sqrt -align array64byte |
357.bt331: | Same as 351.bwaves |
360.ilbdc: | -O3 -openmp -ipo -xAVX -opt-malloc-options=1 -align array64byte |
362.fma3d: | -O3 -openmp -ipo -xAVX -fno-alias -align array64byte |
363.swim: | -O3 -openmp -ipo -xSSE4.2 -fno-alias -opt-streaming-stores always -opt-malloc-options=3 -align array64byte |
370.mgrid331: | -O2 -openmp -ipo -xSSE4.2 -fno-alias -opt-malloc-options=3 -align array64byte |
371.applu331: | -O2 -openmp -ipo -xAVX -align array64byte |
