SPEC® OMPG2012 Result

Copyright 2012-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company (Test Sponsor: The Portland Group)

SPECompG_base2012 = 3.73

ProLiant SL250

SPECompG_peak2012 = 3.73

OMP2012 license: 019 Test date: Jan-2013
Test sponsor: The Portland Group Hardware Availability: Aug-2012
Tested by: The Portland Group Software Availability: Jan-2013

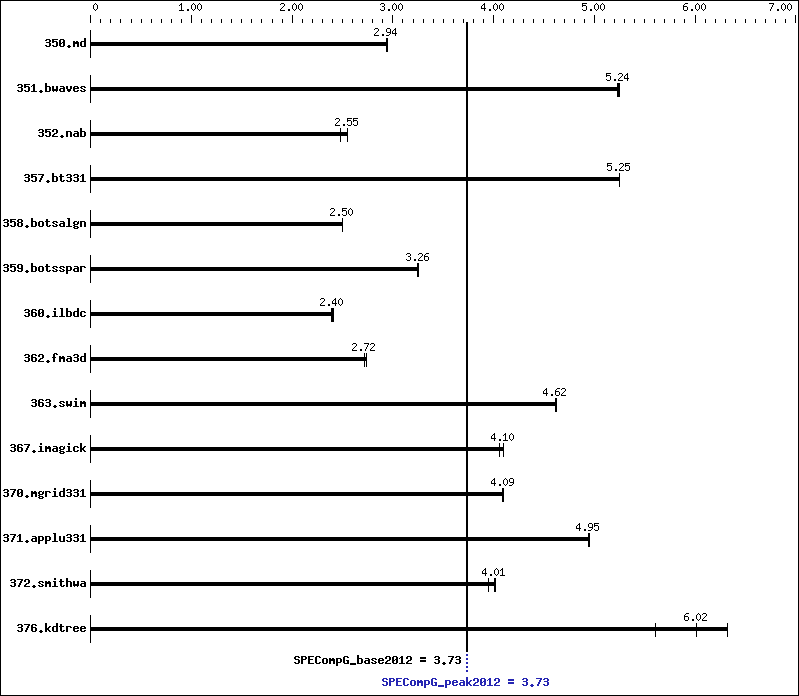

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2670
CPU Characteristics: Intel Xeon CPU E5-2670 0 @ 2.60 GHz
CPU MHz: 2600
CPU MHz Maximum: 3300
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 1-2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (8 x 8GB 2Rx4 PC3L-10600R-9, ECC)
Disk Subsystem: 10 x 144GB, RAID, 10000 RPM
Other Hardware: None
Base Threads Run: 16
Minimum Peak Threads: 16
Maximum Peak Threads: 16
Software
Operating System: Red Hat Enterprise Linux Server release 6.2
(Santiago)
2.6.32-220.el6.x86_64
Compiler: C/C++/Fortran: Version 13.1 of PGI Server Complete
Auto Parallel: No
File System: nfs
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 16 1575   2.94  1578   2.93  1573   2.94  16 1575   2.94  1578   2.93  1573   2.94
351.bwaves 16 866   5.23  865   5.24  863   5.25  16 866   5.23  865   5.24  863   5.25
352.nab 16 1524   2.55  1524   2.55  1569   2.48  16 1524   2.55  1524   2.55  1569   2.48
357.bt331 16 903   5.25  903   5.25  904   5.25  16 903   5.25  903   5.25  904   5.25
358.botsalgn 16 1741   2.50  1741   2.50  1741   2.50  16 1741   2.50  1741   2.50  1741   2.50
359.botsspar 16 1611   3.26  1613   3.26  1617   3.25  16 1611   3.26  1613   3.26  1617   3.25
360.ilbdc 16 1479   2.41  1487   2.39  1483   2.40  16 1479   2.41  1487   2.39  1483   2.40
362.fma3d 16 1400   2.71  1399   2.72  1390   2.73  16 1400   2.71  1399   2.72  1390   2.73
363.swim 16 980   4.62  983   4.61  981   4.62  16 980   4.62  983   4.61  981   4.62
367.imagick 16 1716   4.10  1716   4.10  1732   4.06  16 1716   4.10  1716   4.10  1732   4.06
370.mgrid331 16 1081   4.09  1080   4.09  1079   4.09  16 1081   4.09  1080   4.09  1079   4.09
371.applu331 16 1225   4.95  1227   4.94  1223   4.95  16 1225   4.95  1227   4.94  1223   4.95
372.smithwa 16 1357   3.95  1335   4.02  1335   4.01  16 1357   3.95  1335   4.02  1335   4.01
376.kdtree 16 748   6.02  712   6.32  802   5.61  16 748   6.02  712   6.32  802   5.61

Platform Notes

 Sysinfo program /scratch/cparrott/OMP2012_v1.0/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on node3 Sat Jan 26 09:47:08 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2670 0 @ 2.60GHz
       2 "physical id"s (chips)
       16 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 8
       siblings  : 8
       physical 0: cores 0 1 2 3 4 5 6 7
       physical 1: cores 0 1 2 3 4 5 6 7
    cache size : 20480 KB

 From /proc/meminfo
    MemTotal:       65932772 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.2 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux node3 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64
    x86_64 x86_64 GNU/Linux

 run-level 3 Jan 8 10:38

 SPEC is set to: /scratch/cparrott/OMP2012_v1.0
    Filesystem    Type    Size  Used Avail Use% Mounted on
    filer01.pgi.net:/vol/vol1/scratch
                   nfs    727G  125G  602G  18% /proj/scratch

 Additional information from dmidecode:

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
MP_BIND = "yes"
MP_SPIN = "1"


    Software Environment:
        export MP_BIND=yes
        export MP_SPIN=1
        ulimit -s unlimited

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgCC

Fortran benchmarks:

 pgfortran

Base Portability Flags

350.md:  -Mfree
351.bwaves:  -mcmodel=medium
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium

Base Optimization Flags

C benchmarks:

 -mp   -fast   -Mipa=fast   -Mipa=inline   -Msmartalloc   -Mfprelaxed

C++ benchmarks:

 -mp   -fast   -Mipa=fast   -Mipa=inline   -Msmartalloc   -Mfprelaxed

Fortran benchmarks:

 -mp   -fast   -Mipa=fast   -Mipa=inline   -Msmartalloc   -Mfprelaxed

Peak Optimization Flags

C benchmarks:

352.nab:  basepeak = yes
358.botsalgn:  basepeak = yes
359.botsspar:  basepeak = yes
367.imagick:  basepeak = yes
372.smithwa:  basepeak = yes

C++ benchmarks:

376.kdtree:  basepeak = yes

Fortran benchmarks:

350.md:  basepeak = yes
351.bwaves:  basepeak = yes
357.bt331:  basepeak = yes
360.ilbdc:  basepeak = yes
362.fma3d:  basepeak = yes
363.swim:  basepeak = yes
370.mgrid331:  basepeak = yes
371.applu331:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/pgi2013_linux_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/pgi2013_linux_flags.xml.
