SPEC® OMPG2012 Result

Copyright 2012-2014 Standard Performance Evaluation Corporation

Dell (Test Sponsor: Technische Universitaet Dresden)

SPECompG_base2012 = 4.48

SPECompG_energy_base2012 = 4.02

Dell PowerEdge R720

SPECompG_peak2012 = Not Run

SPECompG_energy_peak2012 = --

OMP2012 license: 37A Test date: Oct-2012
Test sponsor: Technische Universitaet Dresden Hardware Availability: May-2012
Tested by: Technische Universitaet Dresden Software Availability: Sep-2012

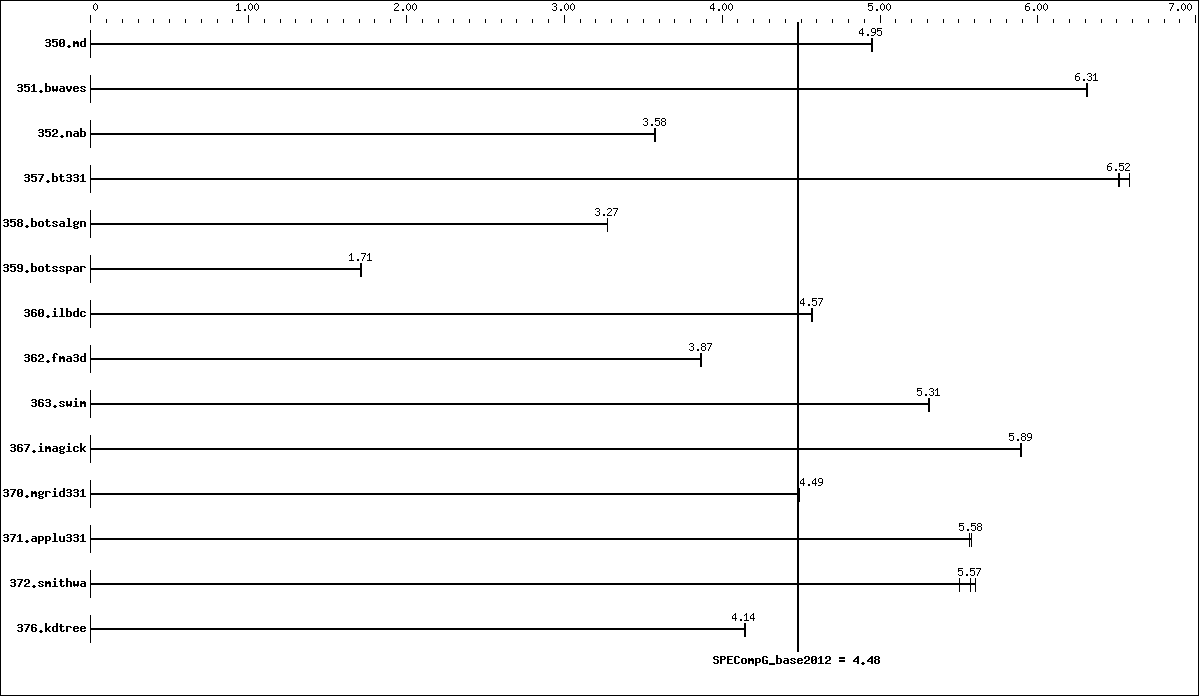

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2670
CPU Characteristics: Intel Turbo Boost Technology up to 3.30 GHz
CPU MHz: 2600
CPU MHz Maximum: 3300
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (8 x 8 GB PC3-12800R, ECC)
Disk Subsystem: 500 GB (1 x 500 GB SATA 7200 rpm)
Other Hardware: --
Base Threads Run: 32
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: Ubuntu 12.04.1 LTS
Kernel 3.2.0-30-generic
Compiler: C/C++/Fortran: Version 13.0.0 of Intel
Composer XE 2013 Build 20120731
Auto Parallel: No
File System: ext3
System State: run-level 2
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None
Power
Power Supply: 1 x 750 W
Power Supply Details: Dell D750E-S1
Max. Power (W): 396.79
Idle Power (W): 75.25
Min. Temperature (C): 21.75
Power Analyzer
Power Analyzer: Power Analyzer
Hardware Vendor: ZES Zimmer
Model: LMG450
Serial Number: 09261111
Input Connection: RS232 via USB-adapter
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Calibration By: ZES Zimmer
Calibration Label: 0430926005
Calibration Date: 11.29.2011
PTDaemon Version: 1.4.2 (313157da; 2012-04-17)
Setup Description: connected to the single power supply that powers
the system
Current Ranges Used: 1.2A, 2.5A
Voltage Range Used: 250V
Temperature Meter
Temperature Meter: Temperature Meter
Hardware Vendor: Digi
Model: Watchport/H
Serial Number: --
Input Connection: USB
PTDaemon Version: 1.4.2 (313157da; 2012-04-17)
Setup Description: positioned in front of intake fan

Base Results Table

Benchmark Threads Seconds Ratio Energy
(kJ)
Maximum
Power
Average
Power
Energy
Ratio
Seconds Ratio Energy
(kJ)
Maximum
Power
Average
Power
Energy
Ratio
Seconds Ratio Energy
(kJ)
Maximum
Power
Average
Power
Energy
Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 32 936   4.95  275   299   294   4.56  937   4.94  276   301   294   4.55  935   4.95  275   298   294   4.56
351.bwaves 32 718   6.31  266   390   370   5.04  717   6.32  265   391   370   5.05  718   6.31  266   391   370   5.05
352.nab 32 1088   3.57  325   321   298   3.32  1087   3.58  322   319   297   3.34  1088   3.58  324   321   298   3.33
357.bt331 32 720   6.58  264   397   367   5.54  727   6.52  259   390   356   5.65  728   6.51  259   391   356   5.66
358.botsalgn 32 1329   3.27  403   312   303   3.17  1330   3.27  404   311   304   3.17  1329   3.27  404   312   304   3.16
359.botsspar 32 3058   1.72  964   322   315   1.63  3063   1.71  966   322   315   1.63  3068   1.71  968   321   316   1.63
360.ilbdc 32 778   4.57  257   334   331   4.29  780   4.57  258   335   332   4.27  778   4.57  257   334   331   4.29
362.fma3d 32 983   3.87  318   342   323   3.55  982   3.87  318   346   324   3.55  983   3.87  319   348   324   3.54
363.swim 32 852   5.32  311   369   365   4.45  853   5.31  311   369   364   4.44  853   5.31  311   367   365   4.44
367.imagick 32 1193   5.89  371   355   311   5.80  1193   5.89  371   345   311   5.80  1192   5.90  370   348   310   5.81
370.mgrid331 32 984   4.49  370   383   376   3.69  985   4.49  370   383   376   3.69  986   4.48  371   383   377   3.68
371.applu331 32 1088   5.57  394   393   362   4.73  1086   5.58  393   392   362   4.74  1087   5.58  393   391   362   4.73
372.smithwa 32 974   5.50  361   389   371   5.08  957   5.60  359   391   375   5.11  962   5.57  360   389   374   5.10
376.kdtree 32 1087   4.14  379   354   349   3.66  1087   4.14  379   356   349   3.65  1086   4.15  379   355   349   3.66

Operating System Notes

 initial version: Ubuntu-Server 12.04 LTS, Release amd64 (20120424.1)
 continuously upgraded via Ubuntu update manager

Platform Notes

 One of the two redundant power supplies has been removed
 Sysinfo program /fastfs/molka/OMP2012-021/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on ayres Mon Oct  1 10:14:46 2012

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2670 0 @ 2.60GHz
       2 "physical id"s (chips)
       32 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 8
       siblings  : 16
       physical 0: cores 0 1 2 3 4 5 6 7
       physical 1: cores 0 1 2 3 4 5 6 7
    cache size : 20480 KB

 From /proc/meminfo
    MemTotal:       65898972 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Ubuntu 12.04.1 LTS

 From /etc/*release* /etc/*version*
    debian_version: wheezy/sid

 uname -a:
    Linux ayres 3.2.0-30-generic #48-Ubuntu SMP Fri Aug 24 16:52:48 UTC 2012
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 2 Sep 17 16:47

 SPEC is set to: /fastfs/molka/OMP2012-021
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda1      ext3  459G   26G  429G   6% /

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes

 Environment:
   OMP_NESTED=FALSE
   OMP_DYNAMIC=FALSE
   OMP_STACKSIZE=64M
   KMP_AFFINITY=granularity=fine,compact

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -free
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -openmp   -O3   -xAVX   -mcmodel=medium   -shared-intel

C++ benchmarks:

 -openmp   -O3   -xAVX   -mcmodel=medium   -shared-intel

Fortran benchmarks:

 -openmp   -O3   -xAVX   -mcmodel=medium   -shared-intel

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/intel130_linux_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/intel130_linux_flags.xml.
