SPEC® MPIM2007 Result

Lenovo Global Technology

ThinkSystem SR860 V2
(Intel Xeon Platinum 8380H CPU, 2.90 GHz)

SPECmpiM_peak2007 = 101

SPECmpiM_base2007 = 99.3

MPI2007 license:	28	Test date:	Oct-2020
Test sponsor:	Lenovo Global Technology	Hardware Availability:	Oct-2020
Tested by:	Lenovo Global Technology	Software Availability:	Oct-2020

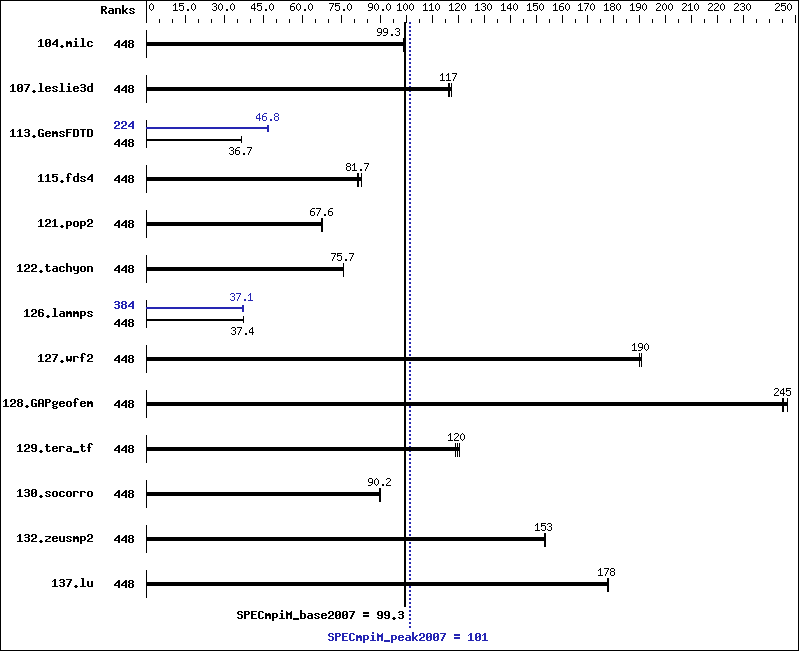

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	448	15.8	98.9	15.8	99.3	15.7	99.5	448	15.8	98.9	15.8	99.3	15.7	99.5
107.leslie3d	448	44.9	116	44.7	117	44.5	117	448	44.9	116	44.7	117	44.5	117
113.GemsFDTD	448	172	36.8	172	36.7	172	36.7	224	135	46.8	135	46.8	135	46.8
115.fds4	448	23.9	81.7	24.1	81.1	23.6	82.7	448	23.9	81.7	24.1	81.1	23.6	82.7
121.pop2	448	60.9	67.8	61.1	67.6	61.1	67.5	448	60.9	67.8	61.1	67.6	61.1	67.5
122.tachyon	448	37.0	75.7	37.0	75.7	36.9	75.7	448	37.0	75.7	37.0	75.7	36.9	75.7
126.lammps	448	78.0	37.4	78.1	37.3	77.8	37.5	384	78.5	37.1	78.6	37.1	77.9	37.4
127.wrf2	448	41.0	190	40.9	190	40.9	190	448	41.0	190	40.9	190	40.9	190
128.GAPgeofem	448	8.43	245	8.36	247	8.42	245	448	8.43	245	8.36	247	8.42	245
129.tera_tf	448	23.3	119	23.1	120	23.0	121	448	23.3	119	23.1	120	23.0	121
130.socorro	448	42.3	90.3	42.5	89.8	42.3	90.2	448	42.3	90.3	42.5	89.8	42.3	90.2
132.zeusmp2	448	20.2	154	20.3	153	20.2	153	448	20.2	154	20.3	153	20.2	153
137.lu	448	20.7	177	20.7	178	20.7	178	448	20.7	177	20.7	178	20.7	178

Hardware Summary
Type of System:	Homogeneous
Compute Node:	ThinkSystem SR860 V2
Interconnect:	Nvidia Mellanox ConnectX-6 HDR Infiniband
File Server Node:	NFS
Total Compute Nodes:	4
Total Chips:	16
Total Cores:	448
Total Threads:	448
Total Memory:	6 TB
Base Ranks Run:	448
Minimum Peak Ranks:	224
Maximum Peak Ranks:	448

Software Summary
C Compiler:	Intel Parallel Studio C Compiler 20 Update 2 for Linux Version 19.1.2.254 Build 20200623
C++ Compiler:	Intel Parallel Studio C++ Compiler 20 Update 2 for Linux Version 19.1.2.254 Build 20200623
Fortran Compiler:	Intel Parallel Studio Fortran Compiler 20 Update 2 for Linux Version 19.1.2.254 Build 20200623
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
MPI Library:	Intel Parallel Studio MPI Library for Linux* OS Version 2020 Update 2 Build 20200624
Other MPI Info:	None
Pre-processors:	No
Other Software:	None

Node Description: ThinkSystem SR860 V2

Hardware
Number of nodes:	4
Uses of the node:	compute
Vendor:	Lenovo Global Technology
Model:	ThinkSystem SR860 V2
CPU Name:	Intel Xeon Platinum 8380H
CPU(s) orderable:	2,4 chips
Chips enabled:	4
Cores enabled:	112
Cores per chip:	28
Threads per core:	1
CPU Characteristics:	Intel Turbo Boost Technology up to 4.3 GHz
CPU MHz:	2900
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory:	1536 GB (48 x 32 GB 2Rx8 PC4-3200AA-R)
Disk Subsystem:	1 x 1 TB SATA 2.5" SSD
Other Hardware:	N/A
Adapter:	Nvidia Mellanox ConnectX-6 HDR Infiniband
Number of Adapters:	1
Slot Type:	PCI-Express 3.0 x16
Data Rate:	200 Gb/s
Ports Used:	1
Interconnect Type:	Nvidia Mellanox ConnectX-6 HDR Infiniband

Software
Adapter:	Nvidia Mellanox ConnectX-6 HDR Infiniband
Adapter Driver:	5.1-0.6.6
Adapter Firmware:	20.25.2006
Operating System:	SUSE Linux Enterprise Server 15 SP2 5.3.18-22-default
Local File System:	xfs
Shared File System:	None
System State:	Multi-user, run level 3
Other Software:	None

Node Description: NFS

Hardware
Number of nodes:	1
Uses of the node:	Fileserver
Vendor:	Lenovo Global Technology
Model:	ThinkSystem SR860 V2
CPU Name:	Intel Xeon Platinum 8380H
CPU(s) orderable:	2,4 chips
Chips enabled:	4
Cores enabled:	112
Cores per chip:	28
Threads per core:	1
CPU Characteristics:	Intel Turbo Boost Technology up to 4.3 GHz
CPU MHz:	2900
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory:	1536 GB (48 x 32 GB 2Rx8 PC4-3200AA-R)
Disk Subsystem:	1 x 1 TB SATA 2.5" SSD
Other Hardware:	None
Adapter:	Nvidia Mellanox ConnectX-6 HDR Infiniband
Number of Adapters:	1
Slot Type:	PCI-Express 3.0 x16
Data Rate:	200 Gb/s
Ports Used:	1
Interconnect Type:	Nvidia Mellanox ConnectX-6 HDR Infiniband

Software
Adapter:	Nvidia Mellanox ConnectX-6 HDR Infiniband
Adapter Driver:	5.1-0.6.6
Adapter Firmware:	20.25.2006
Operating System:	SUSE Linux Enterprise Server 15 SP2
Local File System:	None
Shared File System:	NFS
System State:	Multi-User, run level 3
Other Software:	None

Interconnect Description: Nvidia Mellanox ConnectX-6 HDR Infiniband

Hardware
Vendor:	Nvidia
Model:	Nvidia Mellanox ConnectX-6 HDR Infiniband
Switch Model:	Nvidia Mellanox QM8700
Number of Switches:	1
Number of Ports:	40
Data Rate:	200 Gb/s
Firmware:	3.9.0606
Topology:	Mesh
Primary Use:	MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.

 RAM configuration:
   Compute nodes have 2 x 32 GB RDIMM on each memory channel.

 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Intel Hyper-Threading Technology (SMT): Disabled
   SNC (Sub-NUMA Cluster): Enable


 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
