| MPI2007 license: | 28 | Test date: | Jan-2020 |
|---|---|---|---|
| Test sponsor: | Lenovo Global Technology | Hardware Availability: | Jun-2020 |
| Tested by: | Lenovo Global Technology | Software Availability: | Jun-2020 |

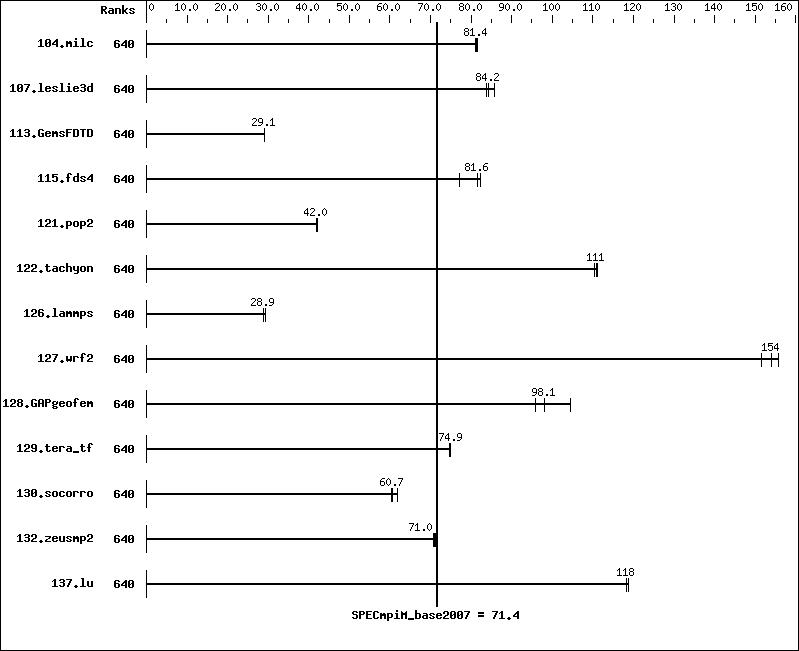

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 104.milc | 640 | 19.2 | 81.4 | 19.2 | 81.6 | 19.3 | 81.1 | |||||||
| 107.leslie3d | 640 | 60.8 | 85.8 | 62.0 | 84.2 | 62.3 | 83.8 | |||||||
| 113.GemsFDTD | 640 | 217 | 29.0 | 216 | 29.2 | 217 | 29.1 | |||||||
| 115.fds4 | 640 | 25.3 | 77.1 | 23.7 | 82.2 | 23.9 | 81.6 | |||||||
| 121.pop2 | 640 | 98.2 | 42.0 | 98.4 | 42.0 | 98.5 | 41.9 | |||||||
| 122.tachyon | 640 | 25.2 | 111 | 25.4 | 110 | 25.1 | 111 | |||||||
| 126.lammps | 640 | 101 | 28.9 | 101 | 28.9 | 99.3 | 29.4 | |||||||
| 127.wrf2 | 640 | 50.6 | 154 | 51.4 | 152 | 50.0 | 156 | |||||||
| 128.GAPgeofem | 640 | 21.1 | 98.1 | 21.5 | 95.9 | 19.7 | 105 | |||||||
| 129.tera_tf | 640 | 36.9 | 74.9 | 37.0 | 74.9 | 37.0 | 74.7 | |||||||
| 130.socorro | 640 | 62.9 | 60.7 | 61.6 | 61.9 | 63.2 | 60.4 | |||||||
| 132.zeusmp2 | 640 | 43.6 | 71.2 | 43.7 | 71.0 | 43.8 | 70.8 | |||||||
| 137.lu | 640 | 31.0 | 119 | 31.1 | 118 | 31.1 | 118 | |||||||
| Hardware Summary | |
|---|---|
| Type of System: | Homogeneous |
| Compute Node: | ThinkSystem SR665 |
| Interconnect: | Mellanox ConnectX-6 HDR |
| File Server Node: | NFS |
| Total Compute Nodes: | 5 |
| Total Chips: | 10 |
| Total Cores: | 640 |
| Total Threads: | 640 |
| Total Memory: | 5 TB |
| Base Ranks Run: | 640 |
| Minimum Peak Ranks: | -- |
| Maximum Peak Ranks: | -- |
| Software Summary | |
|---|---|
| C Compiler: | AMD Optimizing C Compiler for Linux Version 2.1 Build 1030.2019_11_12 |
| C++ Compiler: | AMD Optimizing C++ Compiler for Linux Version 2.1 Build 1030.2019_11_12 |
| Fortran Compiler: | AMD Optimizing Fortran Compiler for Linux Version 2.1 Build 1030.2019_11_12 |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| MPI Library: | OpenMPI MPI Library Version 4.0.2 |
| Other MPI Info: | None |
| Pre-processors: | No |
| Other Software: | None |
Node Description: ThinkSystem SR665
| Hardware | |
|---|---|
| Number of nodes: | 5 |
| Uses of the node: | compute |
| Vendor: | Lenovo Global Technology |
| Model: | SR665 |
| CPU Name: | AMD EPYC 7H12 |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 128 |
| Cores per chip: | 64 |
| Threads per core: | 1 |
| CPU Characteristics: | None |
| CPU MHz: | 2600 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| L3 Cache: | 256 MB I+D on chip per chip 16 MB shared / 4 cores |
| Other Cache: | None |
| Memory: | 1 TB (16 x 64 GB 2Rx4 PC4-3200AA-R) |
| Disk Subsystem: | 1 x 480 GB SATA 2.5" SSD |
| Other Hardware: | None |
| Adapter: | Mellanox ConnectX-6 HDR Infiniband |
| Number of Adapters: | 1 |
| Slot Type: | PCI-Express 4.0 x16 |
| Data Rate: | 200 Gbs/s |
| Ports Used: | 1 |
| Interconnect Type: | Mellanox ConnectX-6 HDR Infiniband Adapter |
| Software | |
|---|---|
| Adapter: | Mellanox ConnectX-6 HDR Infiniband |
| Adapter Driver: | 4.7-1.0.0.1.2 |
| Adapter Firmware: | 20.25.2006 |
| Operating System: | Red Hat Enterprise Linux Server release 8.1, 4.18.0-147.el8.x86_64 |
| Local File System: | xfs |
| Shared File System: | None |
| System State: | Multi-user, run level 3 |
| Other Software: | None |
Node Description: NFS
| Hardware | |
|---|---|
| Number of nodes: | 1 |
| Uses of the node: | Fileserver |
| Vendor: | Lenovo Global Technology |
| Model: | ThinkSystem SR665 |
| CPU Name: | AMD EPYC 7H12 CPU |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 128 |
| Cores per chip: | 64 |
| Threads per core: | 1 |
| CPU Characteristics: | None |
| CPU MHz: | 2600 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| L3 Cache: | 256 MB I+D on chip per chip 16 MB shared / 4 cores |
| Other Cache: | None |
| Memory: | 1 TB (16 x 64 GB 2Rx4 PC4-3200AA-R) |
| Disk Subsystem: | 1 x 480 GB SATA 2.5" SSD |
| Other Hardware: | None |
| Adapter: | Mellanox ConnectX-6 HDR Infiniband |
| Number of Adapters: | 1 |
| Slot Type: | PCI-Express 4.0 x16 |
| Data Rate: | 200 Gb/s |
| Ports Used: | 1 |
| Interconnect Type: | Mellanox ConnectX-6 HDR Infiniband |
| Software | |
|---|---|
| Adapter: | Mellanox ConnectX-6 HDR Infiniband |
| Adapter Driver: | 4.7-1.0.0.1.2 |
| Adapter Firmware: | 20.25.2006 |
| Operating System: | Red Hat Enterprise Linux Server release 8.1 |
| Local File System: | None |
| Shared File System: | NFS |
| System State: | Multi-User, run level 3 |
| Other Software: | None |
Interconnect Description: Mellanox ConnectX-6 HDR
| Hardware | |
|---|---|
| Vendor: | Mellanox |
| Model: | Infiniband EDR 100Gb/s Switch |
| Switch Model: | SB7800 Series |
| Number of Switches: | 1 |
| Number of Ports: | 36 |
| Data Rate: | 100 Gb/s |
| Firmware: | 3.9.0300 |
| Topology: | Mesh |
| Primary Use: | MPI Traffic |
Submit Notes
The config file option 'submit' was used.
General Notes
MPI startup command: mpiexec command was used to start MPI jobs. RAM configuration: Compute nodes have 1 x 32 GB RDIMM on each memory channel. Add "idle=poll" into grub BIOS settings: Operating Mode : Maximum Performance Mode Hyper-Threading Technology (SMT): Enabled NPS4 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Base Compiler Invocation
C benchmarks:
| /opt/openmpi/O402_A21_H47_RH81/bin/mpicc |
C++ benchmarks:
| 126.lammps: | /opt/openmpi/O402_A21_H47_RH81/bin/mpicxx |
Fortran benchmarks:
| /opt/openmpi/O402_A21_H47_RH81/bin/mp ifort |
Benchmarks using both Fortran and C:
| /opt/openmpi/O402_A21_H47_RH81/bin/mpicc /opt/openmpi/O402_A21_H47_RH81/bin/mp ifort |
Base Portability Flags
| 121.pop2: | -DSPEC_MPI_CASE_FLAG |
| 126.lammps: | -DMPICH_IGNORE_CXX_SEEK |
| 127.wrf2: | -DSPEC_MPI_CASE_FLAG -DSPEC_MPI_LINUX -Wno-return-type |
Base Optimization Flags
C benchmarks:
| -Ofast -flto -ffast-math -march=znver2 -mavx2 -L/home/AMD_libm/amd-libm/lib -lamdlibm |
C++ benchmarks:
| 126.lammps: | -Ofast -flto -ffast-math -march=znver2 -mavx2 -L/home/AMD_libm/amd-libm/lib -lamdlibm |
Fortran benchmarks:
| -Ofast -flto -ffast-math -march=znver2 -funroll-loops -mavx2 -L/home/AMD_libm/amd-libm/lib -lamdlibm |
Benchmarks using both Fortran and C:
| -Ofast -flto -ffast-math -march=znver2 -mavx2 -funroll-loops -L/home/AMD_libm/amd-libm/lib -lamdlibm |
