SPEC® MPIL2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Intel Corporation

Intel Server System S9248WK1HLC (Intel Xeon 9242 Platinum, 2.30 GHz,
DDR4-2993 MHz, Turbo on)

SPECmpiL_peak2007 = Not Run

MPI2007 license: 13 Test date: Jun-2019
Test sponsor: Intel Corporation Hardware Availability: Jul-2019
Tested by: Intel Corporation Software Availability: May-2019

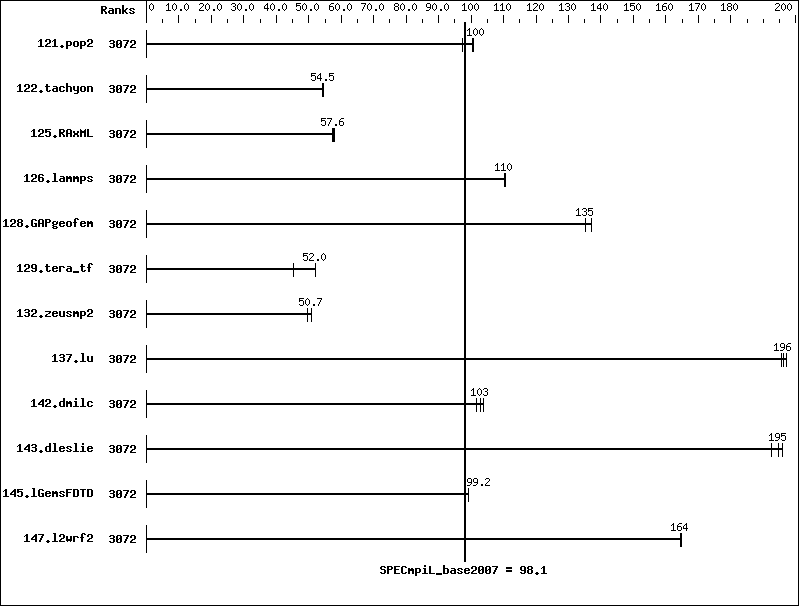

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2 3072 39.9 97.4 38.8 100   38.6 101
122.tachyon 3072 35.7 54.5 35.6 54.6 36.0 54.1
125.RAxML 3072 50.5 57.8 50.7 57.6 50.8 57.4
126.lammps 3072 22.3 110   22.2 111   22.3 110
128.GAPgeofem 3072 43.9 135   43.9 135   43.3 137
129.tera_tf 3072 21.2 52.0 24.2 45.3 21.1 52.1
132.zeusmp2 3072 41.7 50.8 41.8 50.7 42.7 49.6
137.lu 3072 21.3 197   21.4 196   21.5 196
142.dmilc 3072 36.2 102   35.8 103   35.5 104
143.dleslie 3072 16.1 193   15.9 195   15.8 196
145.lGemsFDTD 3072 44.4 99.3 44.4 99.2 44.9 98.3
147.l2wrf2 3072 49.8 165   49.9 164   49.9 164
Hardware Summary
Type of System: Homogeneous
Compute Node: Intel Server System S9248WK1HLC
Interconnect: Intel Omni-Path 100 series
File Server Node: Lustre FS 2.10.4
Total Compute Nodes: 32
Total Chips: 64
Total Cores: 3072
Total Threads: 6144
Total Memory: 12 TB
Base Ranks Run: 3072
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Composer XE 2019 Update 3 for Linux
Version 19.0.3.199 20190206
C++ Compiler: Intel C++ Composer XE 2019 Update 3 for Linux
Version 19.0.3.199 20190206
Fortran Compiler: Intel Fortran Composer 2019 Update 3 for Linux
Version 19.0.3.199 20190206
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library 2018 Update 4 Build 20180823
Other MPI Info: libfabric-1.7.0
Pre-processors: No
Other Software: None

Node Description: Intel Server System S9248WK1HLC

Hardware
Number of nodes: 32
Uses of the node: Compute
Vendor: Intel
Model: Intel Server System S9248WK1HLC
(2 x Intel Xeon 9242 Platinum,
Turbo ON)
CPU Name: Intel Xeon Platinum 9242
CPU(s) orderable: 1,2 chips
Chips enabled: 2
Cores enabled: 96
Cores per chip: 48
Threads per core: 2
CPU Characteristics: Intel Turbo Boost Technology up to 3.8 GHz
CPU MHz: 2200
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 71.5 MB I+D on chip per chip,
35.75 MB shared / 24 cores
Other Cache: None
Memory: 384 GB (24 x 16 GB 2Rx8 DDR4-2993Y-R)
Disk Subsystem: N/A
Other Hardware: None
Adapter: Intel Omni-Path Edge Switch 100 series
Number of Adapters: 2
Slot Type: PCI-Express x16
Data Rate: 2 x 12.5 GB/s
Ports Used: 1
Interconnect Type: Intel Omni-Path Fabric 100 series
Software
Adapter: Intel Omni-Path Edge Switch 100 series
Adapter Driver: IFS 10.9.0.0.210
Adapter Firmware: 1.27.0
Operating System: Oracle Linux Server release 7.6
Local File System: Linux/xfs
Shared File System: Lustre FS 2.10.4
System State: Multi-User
Other Software: IBM Platform LSF Standard 9.1.1.1

Node Description: Lustre FS 2.10.4

Hardware
Number of nodes: 11
Uses of the node: Fileserver
Vendor: Intel
Model: Intel Server System R2208GZ4GC4
CPU Name: Intel Xeon E5-2680
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 16
Cores per chip: 8
Threads per core: 2
CPU Characteristics: Intel Turbo Boost Technology up to 3.5 GHz
CPU MHz: 2700
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
L3 Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB per node (8*8GB 1600MHz Reg ECC DDR3)
Disk Subsystem: 136 TB 3 RAID with 8 SAS/SATA
Other Hardware: None
Adapter: Intel Omni-Path Fabric Adapter 100 series
Number of Adapters: 1
Slot Type: PCI-Express x16
Data Rate: 12.5 GB/s
Ports Used: 1
Interconnect Type: Intel Omni-Path Fabric 100 series
Software
Adapter: Intel Omni-Path Fabric Adapter 100 series
Adapter Driver: IFS 10.9.0.0.210
Adapter Firmware: 1.27.0
Operating System: Redhat Enterprise Linux Server Release 7.6
Local File System: None
Shared File System: Lustre FS 2.10.4 2.10.4
System State: Multi-User
Other Software: None

Interconnect Description: Intel Omni-Path 100 series

Hardware
Vendor: Intel
Model: Intel Omni-Path Fabric 100 series
Switch Model: Intel Omni-Path Edge Switch 100 series
Number of Switches: 8
Number of Ports: 48
Data Rate: 2 x 12.5 GB/s
Firmware: 1.27.0
Topology: Fat tree
Primary Use: MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

Platform Notes

 The system used pre-release CPUs running at 2200 MHz instead of the nominal base frequency (2300 MHz).

General Notes

 130.socorro (base): "nullify_ptrs" src.alt was used.
 129.tera_tf (base): "add_rank_support" src.alt was used.
 143.dleslie (base): "integer_overflow" src.alt was used.

 MPI startup command:
    mpiexec.hydra command was used to start MPI jobs.
    export I_MPI_FABRICS=shm:ofi
    export I_MPI_PIN_DOMAIN=core
    export I_MPI_PIN_ORDER=bunch
    export I_MPI_COMPATIBILITY=3
 Spectre and Meltdown:
    Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
    is mitigated in the system as tested and documented.
    Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
    is mitigated in the system as tested and documented.
    Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
    is mitigated in the system as tested and documented.

 Kernel & Microcode:
    Kernel: 3.10.0-957.12.2.el7.crt1.x86_64
    Microcode: 0x4000024
 BIOS settings:
    Version: SE5C620.86B.0D.01.0505.050820190224
    Intel Hyper-Threading Technology (SMT) = Enabled (default is Enabled)
    Intel Turbo Boost Technology (Turbo)   = Enabled (default is Enabled)
  Job placement:
    Each MPI job was assigned to a topologically compact set of nodes.
  IBM Platform LSF was used for job submission. It has no impact on performance.
    Information can be found at: http://www.ibm.com

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK

Base Optimization Flags

C benchmarks:

 -O3   -xCORE-AVX512   -no-prec-div   -ipo

C++ benchmarks:

126.lammps:  -O3   -xCORE-AVX512   -no-prec-div   -ipo

Fortran benchmarks:

 -O3   -xCORE-AVX512   -no-prec-div   -ipo

Benchmarks using both Fortran and C:

 -O3   -xCORE-AVX512   -no-prec-div   -ipo

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel140_flags.20190110.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel140_flags.20190110.xml.
