| MPI2007 license: | 13 | Test date: | Jun-2019 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jul-2019 |
| Tested by: | Intel Corporation | Software Availability: | May-2019 |

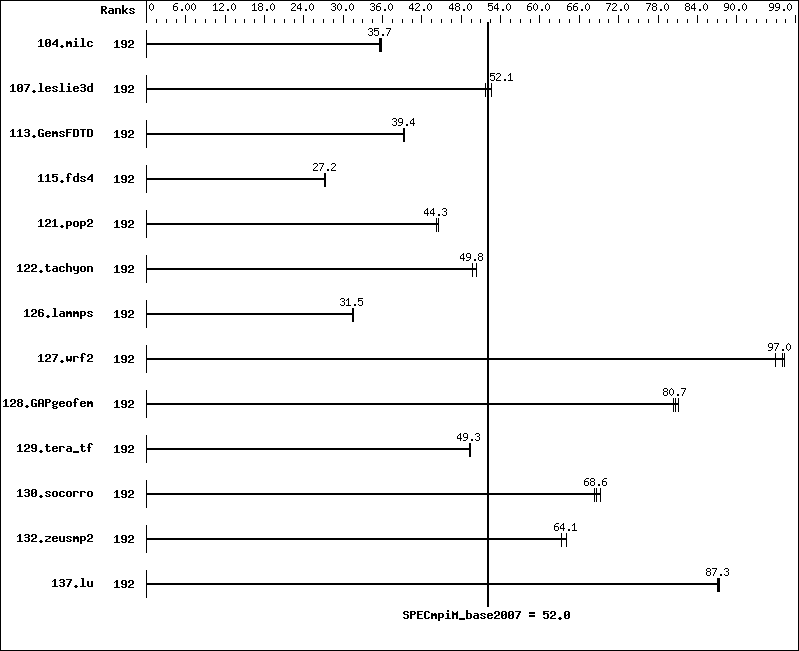

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 104.milc | 192 | 43.8 | 35.8 | 43.9 | 35.7 | 44.1 | 35.5 | |||||||
| 107.leslie3d | 192 | 101 | 51.7 | 99.3 | 52.6 | 100 | 52.1 | |||||||
| 113.GemsFDTD | 192 | 160 | 39.4 | 160 | 39.4 | 161 | 39.3 | |||||||
| 115.fds4 | 192 | 71.8 | 27.2 | 71.7 | 27.2 | 71.6 | 27.3 | |||||||
| 121.pop2 | 192 | 93.4 | 44.2 | 92.8 | 44.5 | 93.2 | 44.3 | |||||||
| 122.tachyon | 192 | 56.2 | 49.7 | 55.7 | 50.3 | 56.2 | 49.8 | |||||||
| 126.lammps | 192 | 92.7 | 31.5 | 92.8 | 31.4 | 92.6 | 31.5 | |||||||
| 127.wrf2 | 192 | 80.4 | 97.0 | 80.1 | 97.3 | 81.3 | 95.9 | |||||||
| 128.GAPgeofem | 192 | 25.6 | 80.7 | 25.4 | 81.2 | 25.7 | 80.3 | |||||||
| 129.tera_tf | 192 | 56.2 | 49.2 | 56.2 | 49.3 | 56.0 | 49.5 | |||||||
| 130.socorro | 192 | 55.1 | 69.3 | 55.9 | 68.3 | 55.7 | 68.6 | |||||||
| 132.zeusmp2 | 192 | 48.4 | 64.1 | 48.4 | 64.1 | 49.0 | 63.3 | |||||||
| 137.lu | 192 | 42.1 | 87.3 | 42.1 | 87.4 | 42.2 | 87.0 | |||||||
| Hardware Summary | |
|---|---|
| Type of System: | Homogeneous |
| Compute Node: | Intel Server System S9248WK1HLC |
| Interconnect: | Intel Omni-Path 100 series |
| File Server Node: | Lustre FS 2.10.4 |
| Total Compute Nodes: | 2 |
| Total Chips: | 4 |
| Total Cores: | 192 |
| Total Threads: | 384 |
| Total Memory: | 768 GB |
| Base Ranks Run: | 192 |
| Minimum Peak Ranks: | -- |
| Maximum Peak Ranks: | -- |
| Software Summary | |
|---|---|
| C Compiler: | Intel C++ Composer XE 2019 Update 3 for Linux Version 19.0.3.199 20190206 |
| C++ Compiler: | Intel C++ Composer XE 2019 Update 3 for Linux Version 19.0.3.199 20190206 |
| Fortran Compiler: | Intel Fortran Composer 2019 Update 3 for Linux Version 19.0.3.199 20190206 |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| MPI Library: | Intel MPI Library 2018 Update 4 Build 20180823 |
| Other MPI Info: | libfabric-1.7.0 |
| Pre-processors: | No |
| Other Software: | None |
Node Description: Intel Server System S9248WK1HLC
| Hardware | |
|---|---|
| Number of nodes: | 2 |
| Uses of the node: | Compute |
| Vendor: | Intel |
| Model: | Intel Server System S9248WK1HLC (2 x Intel Xeon 9242 Platinum, Turbo ON) |
| CPU Name: | Intel Xeon Platinum 9242 |
| CPU(s) orderable: | 1,2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 96 |
| Cores per chip: | 48 |
| Threads per core: | 2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.8 GHz |
| CPU MHz: | 2200 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 71.5 MB I+D on chip per chip, 35.75 MB shared / 24 cores |
| Other Cache: | None |
| Memory: | 384 GB (24 x 16 GB 2Rx8 DDR4-2993Y-R) |
| Disk Subsystem: | N/A |
| Other Hardware: | None |
| Adapter: | Intel Omni-Path Edge Switch 100 series |
| Number of Adapters: | 2 |
| Slot Type: | PCI-Express x16 |
| Data Rate: | 2 x 12.5 GB/s |
| Ports Used: | 1 |
| Interconnect Type: | Intel Omni-Path Fabric 100 series |
| Software | |
|---|---|
| Adapter: | Intel Omni-Path Edge Switch 100 series |
| Adapter Driver: | IFS 10.9.0.0.210 |
| Adapter Firmware: | 1.27.0 |
| Operating System: | Oracle Linux Server release 7.6 |
| Local File System: | Linux/xfs |
| Shared File System: | Lustre FS 2.10.4 |
| System State: | Multi-User |
| Other Software: | IBM Platform LSF Standard 9.1.1.1 |
Node Description: Lustre FS 2.10.4
| Hardware | |
|---|---|
| Number of nodes: | 11 |
| Uses of the node: | Fileserver |
| Vendor: | Intel |
| Model: | Intel Server System R2208GZ4GC4 |
| CPU Name: | Intel Xeon E5-2680 |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 16 |
| Cores per chip: | 8 |
| Threads per core: | 2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.5 GHz |
| CPU MHz: | 2700 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 2 MB I+D on chip per chip |
| L3 Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 64 GB per node (8*8GB 1600MHz Reg ECC DDR3) |
| Disk Subsystem: | 136 TB 3 RAID with 8 SAS/SATA |
| Other Hardware: | None |
| Adapter: | Intel Omni-Path Fabric Adapter 100 series |
| Number of Adapters: | 1 |
| Slot Type: | PCI-Express x16 |
| Data Rate: | 12.5 GB/s |
| Ports Used: | 1 |
| Interconnect Type: | Intel Omni-Path Fabric 100 series |
| Software | |
|---|---|
| Adapter: | Intel Omni-Path Fabric Adapter 100 series |
| Adapter Driver: | IFS 10.9.0.0.210 |
| Adapter Firmware: | 1.27.0 |
| Operating System: | Redhat Enterprise Linux Server Release 7.6 |
| Local File System: | None |
| Shared File System: | Lustre FS 2.10.4 2.10.4 |
| System State: | Multi-User |
| Other Software: | None |
Interconnect Description: Intel Omni-Path 100 series
| Hardware | |
|---|---|
| Vendor: | Intel |
| Model: | Intel Omni-Path Fabric 100 series |
| Switch Model: | Intel Omni-Path Edge Switch 100 series |
| Number of Switches: | 8 |
| Number of Ports: | 48 |
| Data Rate: | 2 x 12.5 GB/s |
| Firmware: | 1.27.0 |
| Topology: | Fat tree |
| Primary Use: | MPI and I/O traffic |
Submit Notes
The config file option 'submit' was used.
Platform Notes
The system used pre-release CPUs running at 2200 MHz instead of the nominal base frequency (2300 MHz).
General Notes
130.socorro (base): "nullify_ptrs" src.alt was used.
129.tera_tf (base): "add_rank_support" src.alt was used.
143.dleslie (base): "integer_overflow" src.alt was used.
MPI startup command:
mpiexec.hydra command was used to start MPI jobs.
export I_MPI_FABRICS=shm:ofi
export I_MPI_PIN_DOMAIN=core
export I_MPI_PIN_ORDER=bunch
export I_MPI_COMPATIBILITY=3
HFI driver parameters:
rcvhdrcnt = 4096
Spectre and Meltdown:
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
is mitigated in the system as tested and documented.
Kernel & Microcode:
Kernel: 3.10.0-957.12.2.el7.crt1.x86_64
Microcode: 0x4000024
BIOS settings:
Version: SE5C620.86B.0D.01.0505.050820190224
Intel Hyper-Threading Technology (SMT) = Enabled (default is Enabled)
Intel Turbo Boost Technology (Turbo) = Enabled (default is Enabled)
Job placement:
Each MPI job was assigned to a topologically compact set of nodes.
IBM Platform LSF was used for job submission. It has no impact on performance.
Information can be found at: http://www.ibm.com
Base Compiler Invocation
C benchmarks:
| mpiicc |
C++ benchmarks:
| 126.lammps: | mpiicpc |
Fortran benchmarks:
| mpiifort |
Benchmarks using both Fortran and C:
| mpiicc mpiifort |
Base Portability Flags
| 121.pop2: | -DSPEC_MPI_CASE_FLAG |
| 126.lammps: | -DMPICH_IGNORE_CXX_SEEK |
| 127.wrf2: | -DSPEC_MPI_CASE_FLAG -DSPEC_MPI_LINUX |
| 130.socorro: | -assume nostd_intent_in |
