SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Lenovo Global Technology

ThinkSystem SR650
(Intel Xeon Platinum 8280 CPU, 2.70 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 28 Test date: Apr-2019
Test sponsor: Lenovo Global Technology Hardware Availability: Apr-2019
Tested by: Lenovo Global Technology Software Availability: Apr-2019

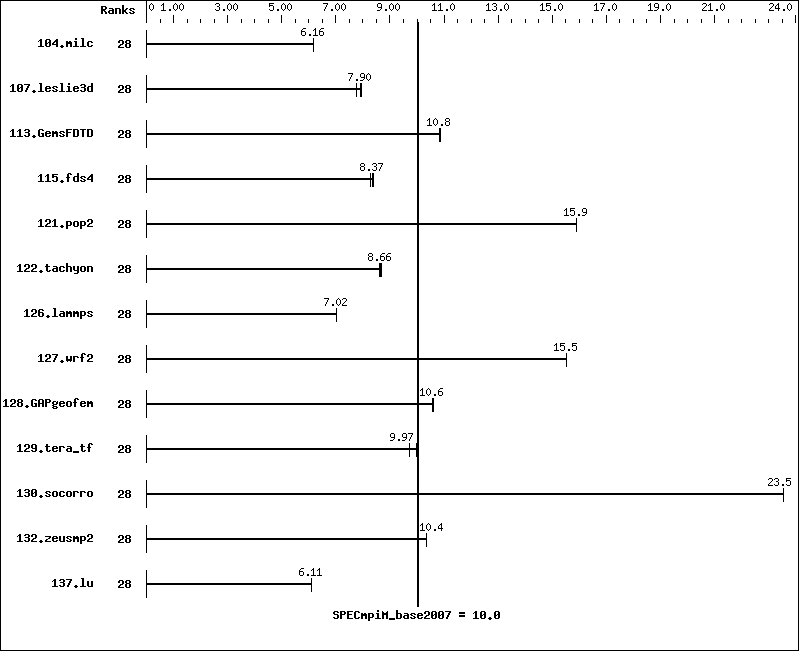

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 28 254 6.16 254 6.17 254 6.16
107.leslie3d 28 657 7.95 661 7.90 672 7.77
113.GemsFDTD 28 582 10.8  581 10.9  583 10.8
115.fds4 28 233 8.37 233 8.38 235 8.29
121.pop2 28 260 15.9  260 15.9  260 15.9
122.tachyon 28 325 8.61 323 8.66 322 8.69
126.lammps 28 415 7.03 415 7.02 415 7.02
127.wrf2 28 502 15.5  502 15.5  502 15.5
128.GAPgeofem 28 196 10.6  194 10.6  195 10.6
129.tera_tf 28 285 9.70 278 9.97 276 10.0
130.socorro 28 162 23.5  162 23.5  162 23.5
132.zeusmp2 28 300 10.4  300 10.4  299 10.4
137.lu 28 602 6.11 603 6.09 602 6.11
Hardware Summary
Type of System: Homogeneous
Compute Node: ThinkSystem SR650
Interconnect: N/A
Total Compute Nodes: 1
Total Chips: 1
Total Cores: 28
Total Threads: 28
Total Memory: 384 GB
Base Ranks Run: 28
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 17.0 Update 7 for Linux
Version 17.0.7 Build 20180403
C++ Compiler: Intel C++ Compiler 17.0 Update 7 for Linux
Version 17.0.7 Build 20180403
Fortran Compiler: Intel Fortran Compiler 17.0 Update 7 for Linux
Version 17.0.7 Build 20180403
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: Intel MPI Library for Linux* OS
Version 2018 Update 3 Build 20180411
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: ThinkSystem SR650

Hardware
Number of nodes: 1
Uses of the node: compute
Vendor: Lenovo Global Technology
Model: SR650
CPU Name: Intel Xeon Platinum 8280
CPU(s) orderable: 1-2 chips
Chips enabled: 1
Cores enabled: 28
Cores per chip: 28
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2700
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 38.5 MB I+D on chip per chip
shared / 28 cores
Other Cache: None
Memory: 384 GB (12 x 32 GB 2Rx4 PC4-2933Y-R)
Disk Subsystem: 1 x 1 TB 12 Gbps SAS 2.5" SSD (JBOD)
Other Hardware: ThinkSystem RAID 930-8i 2GB Flash
Adapter: N/A
Number of Adapters: 0
Slot Type: N/A
Data Rate: N/A
Ports Used: 0
Interconnect Type: None
Software
Adapter: N/A
Adapter Driver: N/A
Adapter Firmware: N/A
Operating System: SUSE Linux Enterprise Server 12 SP4
4.12.14-94.41-default
Local File System: xfs
Shared File System: None
System State: Multi-user, run level 3
Other Software: None

Interconnect Description: N/A

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.

 RAM configuration:
   Compute nodes have 2 x 32 GB RDIMM on each memory channel.

 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Intel Hyper-Threading Technology (SMT): Disabled
   SNC (Sub-NUMA Cluster): Enable


 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -assume nostd_intent_in

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -ipo   -xCORE-AVX512   -no-prec-div

Fortran benchmarks:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -ipo   -xCORE-AVX512   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20170711.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel121_flags.20170711.xml.
