SPEC® MPIL2007 Result

Intel Corporation

Endeavor (Intel Xeon Gold 6148, 2.40 GHz,
DDR4-2666 MHz, SMT on, Turbo on)

SPECmpiL_peak2007 = Not Run

SPECmpiL_base2007 = 65.3

MPI2007 license:	13	Test date:	Aug-2018
Test sponsor:	Intel Corporation	Hardware Availability:	Aug-2018
Tested by:	Intel Corporation	Software Availability:	Nov-2018

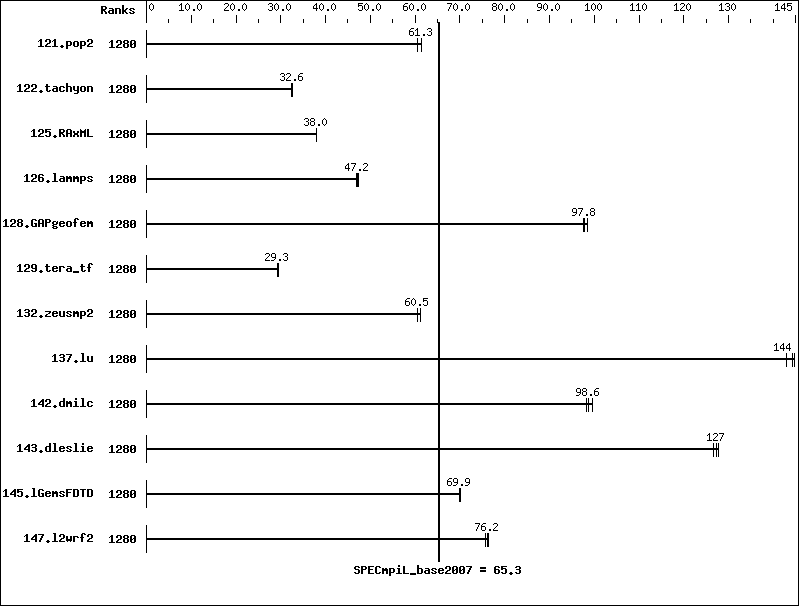

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2	1280	64.3	60.5	63.5	61.3	63.4	61.4
122.tachyon	1280	59.6	32.6	59.6	32.6	59.9	32.4
125.RAxML	1280	76.7	38.0	76.9	38.0	76.9	37.9
126.lammps	1280	52.3	47.0	51.9	47.4	52.1	47.2
128.GAPgeofem	1280	60.3	98.4	60.7	97.8	60.8	97.6
129.tera_tf	1280	37.5	29.3	37.7	29.2	37.4	29.4
132.zeusmp2	1280	34.7	61.1	35.0	60.5	35.0	60.5
137.lu	1280	29.1	144	29.0	145	29.4	143
142.dmilc	1280	37.0	99.5	37.5	98.2	37.4	98.6
143.dleslie	1280	24.5	127	24.4	127	24.3	128
145.lGemsFDTD	1280	63.1	69.9	63.2	69.8	62.9	70.1
147.l2wrf2	1280	107	76.5	108	75.8	108	76.2

Hardware Summary
Type of System:	Homogeneous
Compute Node:	Intel Server System R2208WFTZS
Interconnect:	Intel Omni-Path 100 series
File Server Node:	Lustre FS
Total Compute Nodes:	32
Total Chips:	64
Total Cores:	1280
Total Threads:	2560
Total Memory:	6 TB
Base Ranks Run:	1280
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Composer XE 2018 for Linux Version 18.0.0 Build 20170811
C++ Compiler:	Intel C++ Composer XE 2018 for Linux Version 18.0.0 Build 20170811
Fortran Compiler:	Intel Fortran Composer XE 2018 for Linux Version 18.0.0 Build 20170811
Base Pointers:	64-bit
Peak Pointers:	64-bit
MPI Library:	Intel MPI Library 2019 Build 20180829
Other MPI Info:	libfabric-1.6.1
Pre-processors:	No
Other Software:	None

Node Description: Intel Server System R2208WFTZS

Hardware
Number of nodes:	32
Uses of the node:	Compute
Vendor:	Intel
Model:	Intel Server System R2208WFTZS
CPU Name:	Intel Xeon Gold 6148
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	40
Cores per chip:	20
Threads per core:	2
CPU Characteristics:	Intel Turbo Boost Technology up to 3.7 GHz
CPU MHz:	2400
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	27.5 MB I+D on chip per chip
Other Cache:	None
Memory:	192 GB (16 x 12 GB 2Rx4 DDR4-2666)
Disk Subsystem:	ATA INTEL SSDSC2BA80
Other Hardware:	None
Adapter:	Intel Omni-Path Edge Switch 100 series
Number of Adapters:	1
Slot Type:	PCI-Express x16
Data Rate:	12.5 GB/s
Ports Used:	1
Interconnect Type:	Intel Omni-Path Fabric 100 series

Software
Adapter:	Intel Omni-Path Edge Switch 100 series
Adapter Driver:	IFS 10.7
Adapter Firmware:	1.26.1
Operating System:	Oracle Linux Server release 7.4
Local File System:	Linux/xfs
Shared File System:	Lustre FS
System State:	Multi-User
Other Software:	IBM Platform LSF Standard 9.1.1.1

Node Description: Lustre FS

Hardware
Number of nodes:	11
Uses of the node:	Fileserver
Vendor:	Intel
Model:	Intel Server System R2208GZ4GC4
CPU Name:	Intel Xeon E5-2680
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	16
Cores per chip:	8
Threads per core:	2
CPU Characteristics:	Intel Turbo Boost Technology up to 3.5 GHz
CPU MHz:	2700
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	64 GB per node (8 x 8 GB 1600MHz Reg ECC DDR3)
Disk Subsystem:	136 TB 3 RAID with 8 SAS/SATA
Other Hardware:	None
Adapter:	Intel Omni-Path Fabric Adapter 100 series
Number of Adapters:	1
Slot Type:	PCI-Express x16
Data Rate:	12.5 GB/s
Ports Used:	1
Interconnect Type:	Intel Omni-Path Fabric 100 series

Software
Adapter:	Intel Omni-Path Fabric Adapter 100 series
Adapter Driver:	IFS 10.7
Adapter Firmware:	1.26.1
Operating System:	Redhat Enterprise Linux Server Release 7.4
Local File System:	None
Shared File System:	Lustre FS
System State:	Multi-User
Other Software:	None

Interconnect Description: Intel Omni-Path 100 series

Hardware
Vendor:	Intel
Model:	Intel Omni-Path Fabric 100 series
Switch Model:	Intel Omni-Path Edge Switch 100 series
Number of Switches:	24
Number of Ports:	48
Data Rate:	12.5 GB/s
Firmware:	1.26.1
Topology:	Fat tree
Primary Use:	MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 130.socorro (base): "nullify_ptrs" src.alt was used.
 129.tera_tf (base): "add_rank_support" src.alt was used.
 143.dleslie (base): "integer_overflow" src.alt was used.

 MPI startup command:
    mpiexec.hydra command was used to start MPI jobs.
    export I_MPI_FABRICS=shm:ofi
    export FI_PSM2_INJECT_SIZE=8192
    export I_MPI_PIN_DOMAIN=core
    export I_MPI_PIN_ORDER=bunch
    export FI_PSM2_DELAY=0
    export FI_PSM2_LAZY_CONN=1
    export I_MPI_COMPATIBILITY=3
 Spectre & Meltdown:
    Kernel: 3.10.0-862.11.6.el7.crt1.x86_64
    Microcode: 0x200004d
    l1tf: Mitigation: PTE Inversion
    meltdown: Mitigation: PTI
    spec_store_bypass: Mitigation: Speculative Store Bypass disabled via prctl and seccomp
    spectre_v1: Mitigation: Load fences, __user pointer sanitization
    spectre_v2: Mitigation: IBRS (kernel)
 BIOS settings:
    Intel Hyper-Threading Technology (SMT) = Enabled (default is Enabled)
    Intel Turbo Boost Technology (Turbo)   = Enabled (default is Enabled)
  RAM configuration:
    Compute nodes have 2x16-GB RDIMM on each memory channel.
  Network:
    Endeavour Omni-Path Fabric consists of 48-port switches = 24 core switches
    connected to each leaf of the rack switch.
  HFI driver parameters:
    cache_size = 1024
    rcvhdrcnt = 4096
  Job placement:
    Each MPI job was assigned to a topologically compact set of nodes, i.e.
    the minimal needed number of leaf switches was used for each job = 1 switch
    for 40/80/160/320/640 ranks, 2 switches for 1280 and 1980 ranks.
  IBM Platform LSF was used for job submission. It has no impact on performance.
    Information can be found at: http://www.ibm.com
