| MPI2007 license: | 055A | Test date: | Sep-2017 |
|---|---|---|---|
| Test sponsor: | RWTH University Aachen | Hardware Availability: | Oct-2016 |
| Tested by: | Bo Wang | Software Availability: | Oct-2016 |

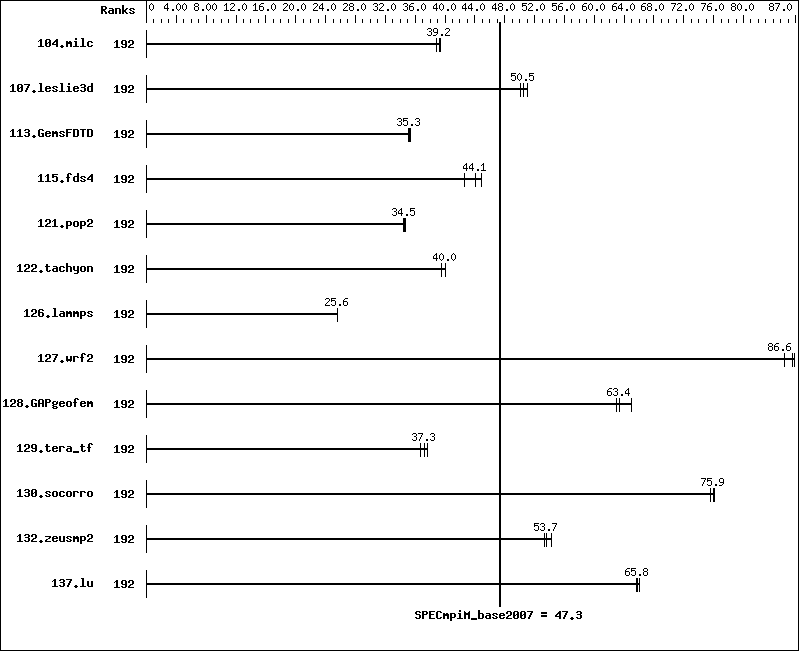

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 104.milc | 192 | 39.9 | 39.2 | 40.2 | 38.9 | 39.8 | 39.4 | |||||||
| 107.leslie3d | 192 | 104 | 50.1 | 103 | 50.5 | 102 | 51.0 | |||||||
| 113.GemsFDTD | 192 | 178 | 35.4 | 180 | 35.1 | 179 | 35.3 | |||||||
| 115.fds4 | 192 | 45.9 | 42.5 | 44.2 | 44.1 | 43.5 | 44.9 | |||||||
| 121.pop2 | 192 | 120 | 34.4 | 119 | 34.7 | 120 | 34.5 | |||||||
| 122.tachyon | 192 | 69.9 | 40.0 | 69.7 | 40.1 | 70.8 | 39.5 | |||||||
| 126.lammps | 192 | 114 | 25.6 | 114 | 25.6 | 114 | 25.7 | |||||||
| 127.wrf2 | 192 | 91.2 | 85.5 | 90.1 | 86.6 | 89.8 | 86.9 | |||||||
| 128.GAPgeofem | 192 | 32.8 | 63.0 | 31.8 | 65.0 | 32.6 | 63.4 | |||||||
| 129.tera_tf | 192 | 75.3 | 36.7 | 74.2 | 37.3 | 73.6 | 37.6 | |||||||
| 130.socorro | 192 | 50.5 | 75.5 | 50.1 | 76.1 | 50.3 | 75.9 | |||||||
| 132.zeusmp2 | 192 | 57.8 | 53.7 | 57.1 | 54.3 | 58.2 | 53.3 | |||||||
| 137.lu | 192 | 55.9 | 65.8 | 55.7 | 66.0 | 56.0 | 65.6 | |||||||
| Hardware Summary | |
|---|---|
| Type of System: | Homogeneous |
| Compute Node: | NEC HPC |
| Interconnects: | Omni-Path Architecture(MPI) Gigabit Ethernet(I/O) |
| File Server Node: | NFSv3 |
| Total Compute Nodes: | 8 |
| Total Chips: | 16 |
| Total Cores: | 192 |
| Total Threads: | 384 |
| Total Memory: | 1 TB |
| Base Ranks Run: | 192 |
| Minimum Peak Ranks: | -- |
| Maximum Peak Ranks: | -- |
| Software Summary | |
|---|---|
| C Compiler: | Intel C++ Composer XE 2017 for Linux, Version 17.0.2.174 |
| C++ Compiler: | Intel C++ Composer XE 2017 for Linux, Version 17.0.2.174 |
| Fortran Compiler: | Intel Fortran Composer XE 2017 for Linux, Version 17.0.2.174 |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| MPI Library: | Intel MPI Library 2017 for Linux, Version 2017.1.132 |
| Other MPI Info: | None |
| Pre-processors: | No |
| Other Software: | None |
Node Description: NEC HPC
| Hardware | |
|---|---|
| Number of nodes: | 8 |
| Uses of the node: | compute |
| Vendor: | Intel |
| Model: | NEC HPC 1812Rg |
| CPU Name: | Intel Xeon E5-2650 v4 |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 24 |
| Cores per chip: | 12 |
| Threads per core: | 2 |
| CPU Characteristics: | 12 core, 2.2 GHz, 9.6 GT/s QPI Intel Turbo Boost Technology up to 2.9 GHz Hyper-Threading Technology enabled |
| CPU MHz: | 2200 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip shared / 12 cores |
| Other Cache: | None |
| Memory: | 128 GB (8 x 16 GB 2Rx8 PC4-2400T-R) |
| Disk Subsystem: | SATA, Samsung SM863, 120GB, SSD |
| Other Hardware: | None |
| Adapter: | Intel Omni-Path Host Fabric Interface Adapter 100 Series 1 Port PCIe x8 |
| Number of Adapters: | 1 |
| Slot Type: | PCI-E x8 |
| Data Rate: | 58Gb/s |
| Ports Used: | 1 |
| Interconnect Type: | Omni-Path |
| Software | |
|---|---|
| Adapter: | Intel Omni-Path Host Fabric Interface Adapter 100 Series 1 Port PCIe x8 |
| Adapter Driver: | Intel Omni-Path Host Fabric Interface |
| Adapter Firmware: | 2.33.5100 |
| Operating System: | CentOS Linux release 7.3.1611 (Core) Kernel 3.10.0-514.26.1.el7.x86_64 |
| Local File System: | Linux/xfs |
| Shared File System: | NFSv3 |
| System State: | Multi-User, run level 3 |
| Other Software: | None |
Node Description: NFSv3
| Hardware | |
|---|---|
| Number of nodes: | 1 |
| Uses of the node: | fileserver |
| Vendor: | NETAPP |
| Model: | FAS6240 |
| CPU Name: | Intel Xeon CPU X5670 |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 12 |
| Cores per chip: | 6 |
| Threads per core: | 2 |
| CPU Characteristics: | None |
| CPU MHz: | 2930 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB |
| Disk Subsystem: | 216 disks, 2 TB/disk, 432TB total |
| Other Hardware: | None |
| Adapter: | 10 Gigabit Ethernet Controller IX1-SFP+ |
| Number of Adapters: | 2 |
| Slot Type: | PCI-Express x8 |
| Data Rate: | 10Gbps Ethernet |
| Ports Used: | 2 |
| Interconnect Type: | Ethernet |
| Software | |
|---|---|
| Adapter: | 10 Gigabit Ethernet Controller IX1-SFP+ |
| Adapter Driver: | N/A |
| Adapter Firmware: | 1.8-0 |
| Operating System: | NetApp Release 8.2.3P2 7-Mode |
| Local File System: | None |
| Shared File System: | NFSv3 |
| System State: | Multi-User, run level 3 |
| Other Software: | None |
Interconnect Description: Omni-Path Architecture(MPI)
| Hardware | |
|---|---|
| Vendor: | Intel |
| Model: | Intel Omni-Path 100 Series |
| Switch Model: | Intel Omni-Path 100 Series |
| Number of Switches: | 25 |
| Number of Ports: | 48 |
| Data Rate: | 100Gbps |
| Firmware: | 10.3.0.0.81 |
| Topology: | 2:1 Blocking Fat tree |
| Primary Use: | MPI traffic |
Interconnect Description: Gigabit Ethernet(I/O)
| Hardware | |
|---|---|
| Vendor: | Cisco |
| Model: | Ethernet 40 Gbps |
| Switch Model: | Cisco Nexus5020, N5K-C5020P-BF |
| Number of Switches: | 1 |
| Number of Ports: | 96 |
| Data Rate: | 40Gbps |
| Firmware: | 5.2(1)N1(9a) |
| Topology: | Star |
| Primary Use: | Cluster File System |
Submit Notes
The config file option 'submit' was used.
General Notes
130.socorro (base): "nullify_ptrs" src.alt was used.
Base Compiler Invocation
C benchmarks:
| mpiicc |
C++ benchmarks:
| 126.lammps: | mpiicpc |
Fortran benchmarks:
| mpiifort |
Benchmarks using both Fortran and C:
| mpiicc mpiifort |
Base Portability Flags
| 121.pop2: | -DSPEC_MPI_CASE_FLAG |
| 126.lammps: | -DMPICH_IGNORE_CXX_SEEK |
| 127.wrf2: | -DSPEC_MPI_CASE_FLAG -DSPEC_MPI_LINUX |
| 130.socorro: | -assume nostd_intent_in |
