SPEC® MPIM2007 Result

Colfax International

Intel Xeon Phi 7210, 1.30 GHz,
SMT on, Turbo off, MCDRAM Cache

SPECmpiM_peak2007 = Not Run

SPECmpiM_base2007 = 7.26

MPI2007 license:	3440	Test date:	Sep-2016
Test sponsor:	Indiana University	Hardware Availability:	Aug-2016
Tested by:	Junjie Li	Software Availability:	Apr-2016

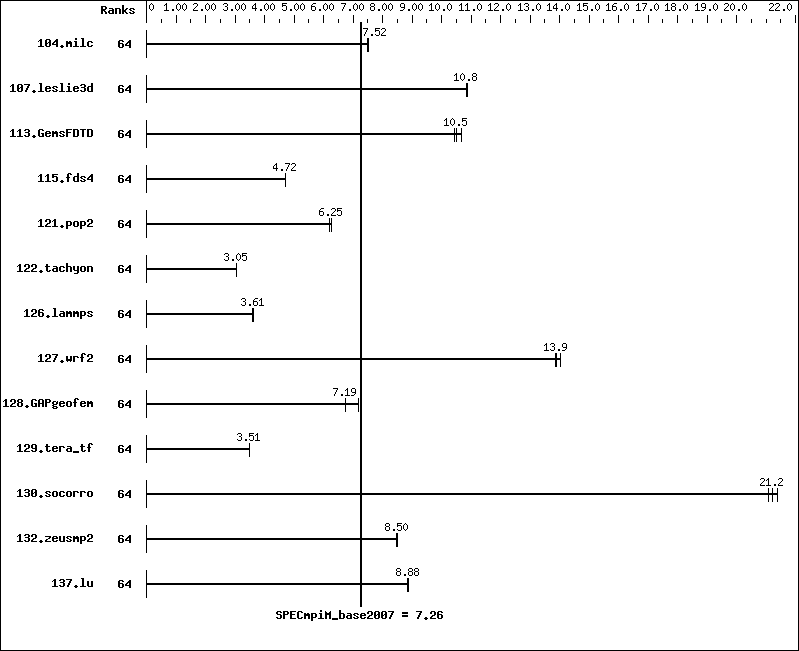

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	64	209	7.48	208	7.53	208	7.52
107.leslie3d	64	480	10.9	482	10.8	482	10.8
113.GemsFDTD	64	601	10.5	592	10.7	605	10.4
115.fds4	64	414	4.72	413	4.72	413	4.72
121.pop2	64	657	6.28	660	6.25	665	6.20
122.tachyon	64	916	3.05	917	3.05	917	3.05
126.lammps	64	806	3.62	807	3.61	812	3.59
127.wrf2	64	563	13.8	555	14.0	561	13.9
128.GAPgeofem	64	287	7.19	287	7.19	307	6.73
129.tera_tf	64	789	3.51	791	3.50	789	3.51
130.socorro	64	179	21.4	180	21.2	181	21.1
132.zeusmp2	64	367	8.46	365	8.50	365	8.50
137.lu	64	414	8.88	414	8.88	416	8.84

Hardware Summary
Type of System:	Homogeneous
Compute Node:	KNL
File Server Node:	KNL
Head Node:	KNL
Total Compute Nodes:	1
Total Chips:	1
Total Cores:	64
Total Threads:	256
Total Memory:	96 GB
Base Ranks Run:	64
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Composer XE 2016 for Linux, Version 16.0.3.210 Build 20160415
C++ Compiler:	Intel C++ Composer XE 2016 for Linux, Version 16.0.3.210 Build 20160415
Fortran Compiler:	Intel Fortran Composer XE 2016 for Linux, Version 16.0.3.210 Build 20160415
Base Pointers:	64-bit
Peak Pointers:	64-bit
MPI Library:	Intel MPI Library for Linux 5.1.3 Build 20160120
Other MPI Info:	None
Pre-processors:	No
Other Software:	None

Node Description: KNL

Hardware
Number of nodes:	1
Uses of the node:	head, compute, fileserver
Vendor:	Colfax International
Model:	None
CPU Name:	Intel Xeon Phi 7210
CPU(s) orderable:	1 chip
Chips enabled:	1
Cores enabled:	64
Cores per chip:	64
Threads per core:	4
CPU Characteristics:	Intel Turbo Boost Technology off, Simultaneous Multithreading (SMT) on
CPU MHz:	1300
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per two cores
L3 Cache:	None
Other Cache:	None
Memory:	96 GB (6 x 16 GB 2Rx8 PC4-2400T-REB-11, ECC)
Disk Subsystem:	Intel S3510 SSD 800GB, SATA3
Other Hardware:	None
Adapter:	0
Number of Adapters:	0
Slot Type:	0
Data Rate:	0
Ports Used:	0
Interconnect Type:	0

Software
Adapter:	0
Adapter Driver:	0
Adapter Firmware:	--
Operating System:	CentOS Linux Release 7.2.1511
Local File System:	Linux/ext4
Shared File System:	None
System State:	Multi-User
Other Software:	None

Submit Notes

The config file option 'submit' was used.

General Notes

130.socorro (base): "nullify_ptrs" src.alt was used.

 MPI startup command:
   mpirun command was used to start MPI jobs.

 BIOS settings:
   Intel Simultaneous Multithreading (SMT): on
   Intel Turbo Boost Technology (Turbo)  : off
   Cluster Mode: quadrant
   Memory Mode: cache

Submitted_by: "Li, Junjie" <lijunj@iu.edu>
Submitted: Thu Oct 20 18:09:55 EDT 2016
Submission: mpi2007-20161014-00528.sub
