SPEC® MPIL2007 Result

SGI

SGI ICE XA
(Intel Xeon E5-2690 v4, 2.6 GHz)

SPECmpiL_peak2007 = Not Run

SPECmpiL_base2007 = NC

MPI2007 license:	14	Test date:	Mar-2016
Test sponsor:	SGI	Hardware Availability:	Mar-2016
Tested by:	SGI	Software Availability:	May-2016

SPEC has determined that this result was not in compliance with the SPEC
MPI2007 run and reporting rules. Specifically, the submitter reported
that the result used an unsupported version of the Operating System.

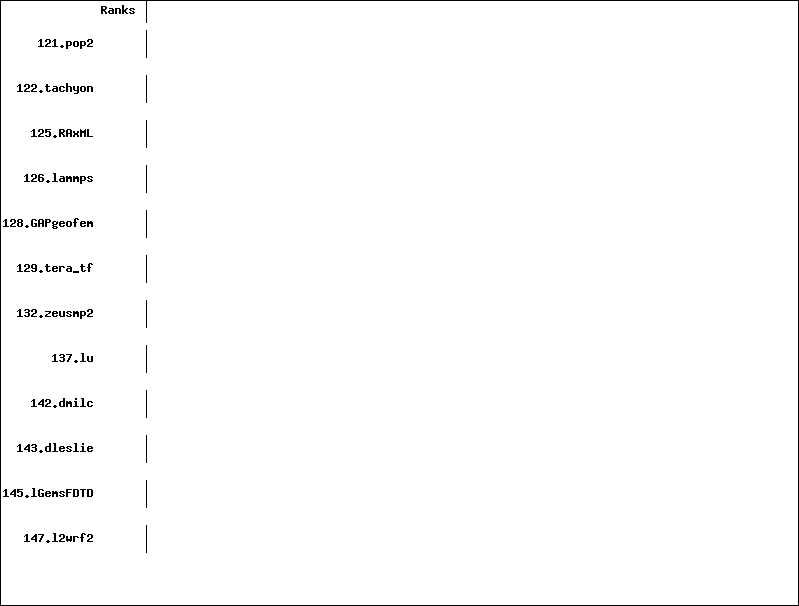

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2	NC	NC	NC	NC	NC	NC	NC
122.tachyon	NC	NC	NC	NC	NC	NC	NC
125.RAxML	NC	NC	NC	NC	NC	NC	NC
126.lammps	NC	NC	NC	NC	NC	NC	NC
128.GAPgeofem	NC	NC	NC	NC	NC	NC	NC
129.tera_tf	NC	NC	NC	NC	NC	NC	NC
132.zeusmp2	NC	NC	NC	NC	NC	NC	NC
137.lu	NC	NC	NC	NC	NC	NC	NC
142.dmilc	NC	NC	NC	NC	NC	NC	NC
143.dleslie	NC	NC	NC	NC	NC	NC	NC
145.lGemsFDTD	NC	NC	NC	NC	NC	NC	NC
147.l2wrf2	NC	NC	NC	NC	NC	NC	NC

Hardware Summary
Type of System:	Homogeneous
Compute Node:	SGI ICE XA IP-125 Compute Node
Interconnect:	InfiniBand (MPI and I/O)
File Server Node:	SGI MIS Server
Total Compute Nodes:	32
Total Chips:	64
Total Cores:	896
Total Threads:	896
Total Memory:	4 TB
Base Ranks Run:	896
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Composer XE 2013 for Linux, Version 14.0.3.174 Build 20140422
C++ Compiler:	Intel C++ Composer XE 2013 for Linux, Version 14.0.3.174 Build 20140422
Fortran Compiler:	Intel Fortran Composer XE 2013 for Linux, Version 14.0.3.174 Build 20140422
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
MPI Library:	SGI MPT 2.14
Other MPI Info:	MLNX_OFED_LINUX-3.0-1.0.1
Pre-processors:	None
Other Software:	None

Node Description: SGI ICE XA IP-125 Compute Node

Hardware
Number of nodes:	32
Uses of the node:	compute
Vendor:	SGI
Model:	SGI ICE XA (Intel Xeon E6-2690 v4, 2.6 GHz)
CPU Name:	Intel Xeon E5-2690 v4
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	28
Cores per chip:	14
Threads per core:	1
CPU Characteristics:	14 Core, 2.60 GHz, 9.6 GT/s QPI Intel Turbo Boost Technology up to 3.50 GHz Hyper-Threading Technology disabled
CPU MHz:	2600
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	35 MB I+D on chip per chip
Other Cache:	None
Memory:	128 GB (8 x 16 GB 2Rx4 PC4-2400T-R)
Disk Subsystem:	None
Other Hardware:	None
Adapter:	Mellanox MT27500 with ConnectX-3 ASIC (PCIe x8 Gen3 8 GT/s)
Number of Adapters:	1
Slot Type:	PCIe x8 Gen3
Data Rate:	InfiniBand 4x FDR
Ports Used:	2
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT27500 with ConnectX-3 ASIC (PCIe x8 Gen3 8 GT/s)
Adapter Driver:	OFED-3.0-1.0.1
Adapter Firmware:	10.10.5054
Operating System:	SUSE Linux Enterprise Server 11 SP3 (x86_64), Kernel 3.0.101-0.47.52.1.8418.0.PTF-default
Local File System:	NFSv3
Shared File System:	NFSv3 IPoIB
System State:	Multi-user, run level 3
Other Software:	SGI Tempo Service Node 3.1.1, Build 712r32.sles11sp3-1505082100

Node Description: SGI MIS Server

Hardware
Number of nodes:	1
Uses of the node:	fileserver
Vendor:	SGI
Model:	SGI MIS Server
CPU Name:	Intel Xeon E5-2670
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	16
Cores per chip:	8
Threads per core:	1
CPU Characteristics:	Intel Turbo Boost Technology up to 3.30 GHz Hyper-Threading Technology disabled
CPU MHz:	2600
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory:	128 GB (12 * 8 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	45 TB RAID 6
Other Hardware:	None
Adapter:	Mellanox MT27500 with ConnectX-3 ASIC
Number of Adapters:	2
Slot Type:	PCIe x8 Gen3
Data Rate:	InfiniBand 4x FDR
Ports Used:	2
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT27500 with ConnectX-3 ASIC
Adapter Driver:	OFED-1.5.4.1
Adapter Firmware:	2.30.3000
Operating System:	SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 3.0.101-0.46-default
Local File System:	xfs
Shared File System:	--
System State:	Multi-user, run level` 3
Other Software:	SGI Foundation Software 2.9, Build 709r19.sles11sp3-1310222002

Interconnect Description: InfiniBand (MPI and I/O)

Hardware
Vendor:	Mellanox Technologies and SGI
Model:	None
Switch Model:	LCE-FDR-SWITCH-STD
Number of Switches:	4
Number of Ports:	36
Data Rate:	InfiniBand 4x FDR
Firmware:	9.3.4000
Topology:	Enhanced Hypercube
Primary Use:	MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes


 143.dleslie (base): "integer_overflow" src.alt was used.

 Software environment:
   export MPI_REQUEST_MAX=65536
   export MPI_TYPE_MAX=32768
   export MPI_IB_RAILS=2
   export MPI_CONNECTIONS_THRESHOLD=0
   export MPI_IB_UPGRADE_SENDS=50
   export MPI_IB_IMM_UPGRADE=false
   export MPI_IB_HYPER_LAZY=false
   ulimit -s unlimited

 BIOS settings:
   AMI BIOS version HAAE6125
   Hyper-Threading Technology disabled
   Transparent HugePages enabled
   Intel Turbo Boost Technology enabled (default)
   Intel Turbo Boost Technology activated with
     modprobe acpi_cpufreq
     cpupower frequency-set -u 2601MHz -d 2601MHz -g performance

 Job Placement:
   There were 4 switches used with a topologically compact
   configuration.

 Additional notes regarding interconnect:
   The Infiniband network consists of two independent planes,
   with half the switches in the system allocated to each plane.
   I/O traffic is restricted to one plane, while MPI traffic
   can use both planes.
