SPEC® MPIL2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Indiana University

Mason (Intel Xeon L7555, base frequency 1.87 GHz,
PC3-10600R, ECC, running at 1066 MHz and CL9,
Turbo on,
Max Turbo Frequency 2.53 GHz)

SPECmpiL_peak2007 = Not Run

MPI2007 license: 3440 Test date: Dec-2011
Test sponsor: Indiana University Hardware Availability: Jun-2010
Tested by: Huian Li Software Availability: Jan-2011

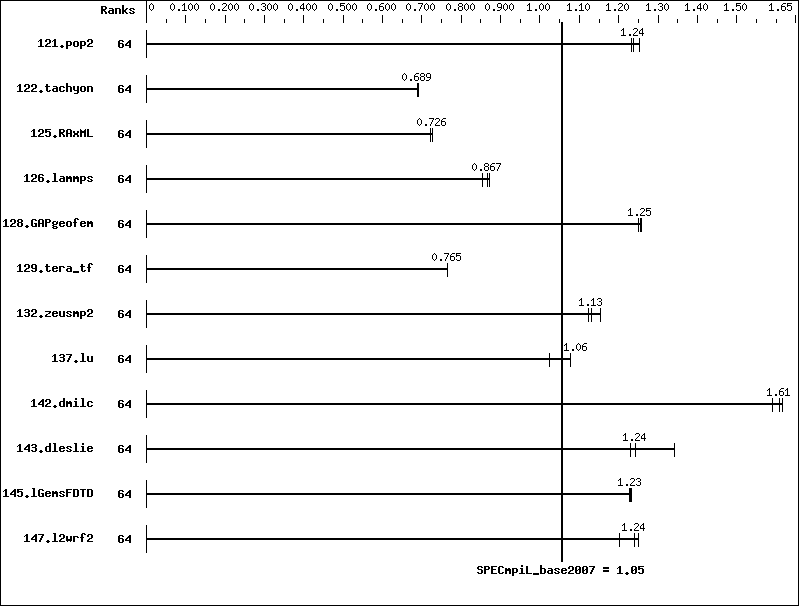

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2 64 3103 1.25  3156 1.23  3143 1.24
122.tachyon 64 2825 0.688 2820 0.689 2815 0.690
125.RAxML 64 4014 0.727 4038 0.723 4021 0.726
126.lammps 64 2821 0.872 2837 0.867 2881 0.854
128.GAPgeofem 64 4741 1.25  4731 1.25  4714 1.26
129.tera_tf 64 1435 0.766 1436 0.765 1436 0.765
132.zeusmp2 64 1885 1.12  1877 1.13  1839 1.15
137.lu 64 3900 1.08  4102 1.02  3977 1.06
142.dmilc 64 2288 1.61  2316 1.59  2278 1.62
143.dleslie 64 2495 1.24  2520 1.23  2310 1.34
145.lGemsFDTD 64 3587 1.23  3592 1.23  3580 1.23
147.l2wrf2 64 6610 1.24  6830 1.20  6566 1.25
Hardware Summary
Type of System: Homogeneous
Compute Node: Mason Node
Interconnects: 10Gigabit Ethernet
Gigabit Ethernet
File Server Node: HOME
Total Compute Nodes: 2
Total Chips: 8
Total Cores: 64
Total Threads: 64
Total Memory: 1 TB
Base Ranks Run: 64
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C Composer XE 2011 for Linux
Version 12.0, Build 20110112
C++ Compiler: Intel C++ Composer XE 2011 for Linux
Version 12.0, Build 20110112
Fortran Compiler: Intel Fortran Composer XE 2011 for Linux
Version 12.0, Build 20110112
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: OpenMPI-1.4.3
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: Mason Node

Hardware
Number of nodes: 2
Uses of the node: compute
Vendor: HP
Model: Proliant DL580 G7 Server Series
CPU Name: Intel Xeon L7555
CPU(s) orderable: 1-4 chips
Chips enabled: 4
Cores enabled: 32
Cores per chip: 8
Threads per core: 1
CPU Characteristics: Intel Turbo Boost Technology enabled,
5.86 GT/s QPI
CPU MHz: 1866
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 24 MB I+D on chip per chip, 24 MB shared / 8 cores
Other Cache: None
Memory: 512 GB (64 x 8 GB 2Rx4 PC3-10600R, ECC
running at 1066 MHz and CL9)
Disk Subsystem: Two 500 GB 7200 RPM 2.5" SAS hard drives,in RAID
1 mirror
Other Hardware: None
Adapter: HP NC375i 1G w/NC524SFP 10G Module
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: 10Gbps
Ports Used: 1
Interconnect Type: 10 Gigabit Ethernet
Adapter: HP NC375i 1G
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: 1Gbps
Ports Used: 1
Interconnect Type: 1 Gigabit Ethernet
Software
Adapter: HP NC375i 1G w/NC524SFP 10G Module
Adapter Driver: netxen_nic v 4.0.75
Adapter Firmware: 4.0.544
Adapter: HP NC375i 1G
Adapter Driver: netxen_nic v 4.0.75
Adapter Firmware: 4.0.544
Operating System: RHEL6.0 (x86_64) 2.6.32-71.14.1.el6
Kernel 2.6.32-71.14.1.el6
Local File System: Linux/ext2
Shared File System: NFS
System State: Multi-User
Other Software: TORQUE-2.5.7

Node Description: HOME

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: IBM
Model: IBM N5500 NAS
CPU Name: Intel Xeon CPU
CPU(s) orderable: 1-4 chips
Chips enabled: 4
Cores enabled: 32
Cores per chip: 8
Threads per core: 1
CPU Characteristics: --
CPU MHz: 1866
Primary Cache: 32 KB I + 32 KB D on chip per chip
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 6 GB
Disk Subsystem: 10 disks, 320GB/disk, 2.6TB total
Other Hardware: None
Adapter: Intel 82546GB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Software
Adapter: Intel 82546GB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000
Adapter Firmware: N/A
Operating System: RedHat EL 4 Update 4
Local File System: None
Shared File System: NFS
System State: Multi-User
Other Software: None

Interconnect Description: 10Gigabit Ethernet

Hardware
Vendor: HP
Model: HP NC375i 1G w/NC524SFP 10G Module
Switch Model: Cisco 7018 (Line card module: N7K-M132XP-12)
Number of Switches: 1
Number of Ports: 16
Data Rate: 10 Gbps Ethernet
Firmware: EPLD 5.0.2
Topology: switched
Primary Use: MPI traffic and NFS traffic

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: HP
Model: Cisco SGE2010
Switch Model: Cisco SGE2010
Number of Switches: 1
Number of Ports: 48
Data Rate: 1 Gbps Ethernet
Firmware: 3.0.0.18
Topology: switched
Primary Use: Network management

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpirun command was used to start MPI jobs.
   eth0 (10 GigE) was specified at the mpirun command line for MPI message passing
   eth3 (1 GigE) was specified for non-MPI communication.
 BIOS settings:
   Intel Turbo Boost Technology (Turbo)  : Enabled (the default)
 RAM configuration:
   Each compute node has 64x8-GB RDIMMs.
 Network:
   Four compute nodes connect to one Cisco Nexus 7018 switch
   via 10 GigE port.
 Job placement:
   Each MPI job was assigned to a topologically compact set of nodes, i.e.
   the minimal needed number of compute nodes was used for each job:
   2 compute nodes for 64 ranks, 4 compute nodes for 128 ranks.

 PBS Pro was used for job submission. It has no impact on performance.
   Can be found at: http://www.altair.com

Base Compiler Invocation

C benchmarks:

 mpicc

C++ benchmarks:

126.lammps:  mpicxx

Fortran benchmarks:

 mpif90

Benchmarks using both Fortran and C:

 mpicc   mpif90

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK

Base Optimization Flags

C benchmarks:

 -O3   -xSSE4.1   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xSSE4.1   -no-prec-div

Fortran benchmarks:

 -O3   -xSSE4.1   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xSSE4.1   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel111_flags.20120720.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel111_flags.20120720.xml.
