SPEC® MPIL2007 Result

SGI

SGI Altix ICE 8400EX
(AMD Opteron 6180 SE, 2.5GHz)

SPECmpiL_peak2007 = 39.0

SPECmpiL_base2007 = 28.9

MPI2007 license:	4	Test date:	Jun-2011
Test sponsor:	SGI	Hardware Availability:	Mar-2011
Tested by:	SGI	Software Availability:	Aug-2011

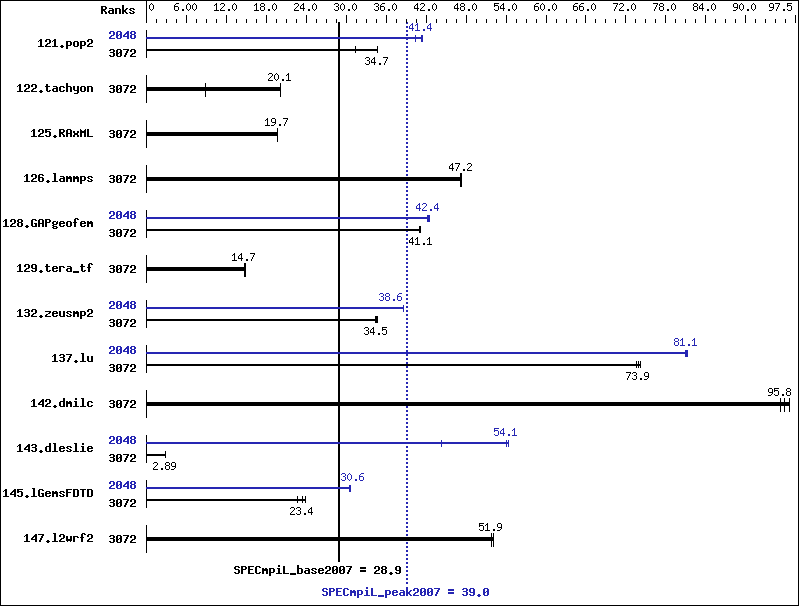

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2	3072	124	31.4	112	34.7	112	34.7	2048	93.9	41.4	94.1	41.4	96.4	40.4
122.tachyon	3072	218	8.92	96.9	20.1	96.4	20.2	3072	218	8.92	96.9	20.1	96.4	20.2
125.RAxML	3072	148	19.7	148	19.7	148	19.7	3072	148	19.7	148	19.7	148	19.7
126.lammps	3072	52.0	47.3	52.1	47.2	52.0	47.2	3072	52.0	47.3	52.1	47.2	52.0	47.2
128.GAPgeofem	3072	144	41.1	144	41.1	145	41.0	2048	140	42.3	140	42.5	140	42.4
129.tera_tf	3072	74.5	14.7	74.5	14.7	74.2	14.8	3072	74.5	14.7	74.5	14.7	74.2	14.8
132.zeusmp2	3072	61.2	34.7	61.4	34.5	61.5	34.4	2048	54.9	38.6	54.9	38.6	55.0	38.5
137.lu	3072	57.1	73.6	56.9	73.9	56.7	74.2	2048	51.9	81.0	51.8	81.1	51.8	81.2
142.dmilc	3072	38.2	96.6	38.7	95.2	38.4	95.8	3072	38.2	96.6	38.7	95.2	38.4	95.8
143.dleslie	3072	1069	2.90	1072	2.89	1072	2.89	2048	57.3	54.1	70.1	44.2	57.0	54.4
145.lGemsFDTD	3072	189	23.4	195	22.7	185	23.8	2048	145	30.5	144	30.6	144	30.6
147.l2wrf2	3072	158	51.8	158	52.1	158	51.9	3072	158	51.8	158	52.1	158	51.9

Hardware Summary
Type of System:	Homogeneous
Compute Node:	SGI Altix ICE 8400EX Compute Node
Interconnect:	InfiniBand (MPI and I/O)
File Server Node:	SGI InfiniteStorage 4000
Total Compute Nodes:	128
Total Chips:	256
Total Cores:	3072
Total Threads:	3072
Total Memory:	8 TB
Base Ranks Run:	3072
Minimum Peak Ranks:	2048
Maximum Peak Ranks:	3072

Software Summary
C Compiler:	Intel C++ Composer XE 2011 for Linux, Version 12.0.3.174 Build 20110309
C++ Compiler:	Intel C++ Composer XE 2011 for Linux, Version 12.0.3.174 Build 20110309
Fortran Compiler:	Intel Fortran Composer XE 2011 for Linux, Version 12.0.3.174 Build 20110309
Base Pointers:	64-bit
Peak Pointers:	64-bit
MPI Library:	SGI MPT 2.04 Patch 10789
Other MPI Info:	OFED 1.4.2
Pre-processors:	None
Other Software:	None

Node Description: SGI Altix ICE 8400EX Compute Node

Hardware
Number of nodes:	128
Uses of the node:	compute
Vendor:	SGI
Model:	SGI Altix ICE 8400EX (AMD Opteron 6180 SE, 2.5GHz)
CPU Name:	AMD Opteron 6180 SE
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	24
Cores per chip:	12
Threads per core:	1
CPU Characteristics:	12 Cores/chip, 2.5 GHz
CPU MHz:	2500
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache:	None
Memory:	64 GB (16 x 4 GB, 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	None
Other Hardware:	None
Adapter:	Mellanox MT26428 ConnectX IB QDR (PCIe x8 Gen2 5 GT/s)
Number of Adapters:	1
Slot Type:	PCIe x8 Gen2
Data Rate:	InfiniBand 4x QDR
Ports Used:	2
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT26428 ConnectX IB QDR (PCIe x8 Gen2 5 GT/s)
Adapter Driver:	OFED-1.4.2
Adapter Firmware:	2.7.0
Operating System:	SUSE Linux Enterprise Server 11 SP1 (x86_64) Kernel 2.6.32.27-0.2-default
Local File System:	NFSv3
Shared File System:	NFSv3 IPoIB
System State:	Run Level 3 (Multi-User)
Other Software:	SGI Performance Suite 1.0, Build 702r19.sles11-1010072114 SGI Tempo Compute Node 2.2, Build 702r19.sles11-1010072114

Node Description: SGI InfiniteStorage 4000

Hardware
Number of nodes:	1
Uses of the node:	fileserver
Vendor:	SGI
Model:	SGI Altix 450 (Intel Itanium 2, 1.6GHz)
CPU Name:	Intel Itanium 2 9030
CPU(s) orderable:	2-38 chips
Chips enabled:	2
Cores enabled:	4
Cores per chip:	2
Threads per core:	1
CPU Characteristics:	1.6GHz/8MB, 533MHz FSB
CPU MHz:	1600
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	4 MB I+D on chip per core
Other Cache:	None
Memory:	24 GB (12 x 2 GB, 2Rx4 PC2-3200-3, ECC)
Disk Subsystem:	16 TB RAID 5 32 x 500 GB SATA (Seagate Barracuda 7.2K)
Other Hardware:	None
Adapter:	Mellanox MT25208 InfiniHost III Ex (PCIe x8 Gen1 2.5 GT/s)
Number of Adapters:	2
Slot Type:	PCIe x8 Gen1
Data Rate:	InfiniBand 4x DDR
Ports Used:	2
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT25208 InfiniHost III Ex (PCIe x8 Gen1 2.5 GT/s)
Adapter Driver:	OFED-1.4.2
Adapter Firmware:	5.3.0
Operating System:	SUSE Linux Enterprise Server 11 SP1 (ia64) Kernel 2.6.32.12-0.7-default
Local File System:	xfs
Shared File System:	--
System State:	Run Level 3 (Multi-User)
Other Software:	SGI ProPack 7SP1 for Linux, Build 701r2.sles11-1005242307

Interconnect Description: InfiniBand (MPI and I/O)

Hardware
Vendor:	Mellanox Technologies
Model:	None
Switch Model:	Mellanox Infiniscale-IV
Number of Switches:	16
Number of Ports:	36
Data Rate:	InfiniBand 4x QDR
Firmware:	5040005
Topology:	Enhanced HyperCube
Primary Use:	MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.
For peak benchmarks that used 2048 MPI ranks, four ranks were assigned
to each CPU die, leaving two cores per die idle.

General Notes

 Software environment:
   export MPI_REQUEST_MAX=65536
   export MPI_TYPE_MAX=32768
   export MPI_BUFS_THRESHOLD=1
   ulimit -s unlimited

 BIOS settings:
   AMI BIOS version 1.0a

 Job Placement:
   In the base run, each MPI job is assigned to a topologically compact
   set of nodes, i.e. the minimal needed number of switches was
   used for each job: 1 switch for up to 192 ranks, 2 switches
   for 384 ranks, 4 switches for 768 ranks, 8 switches for
   1536 ranks and 16 switches for 3072 ranks.
