SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Intel Corporation

Discovery (Intel Xeon E7-8837, 2.67 GHz,
DDR3-1066 MHz, Turbo off)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 13 Test date: Mar-2011
Test sponsor: Intel Corporation Hardware Availability: Apr-2011
Tested by: Pavel Shelepugin Software Availability: Nov-2010

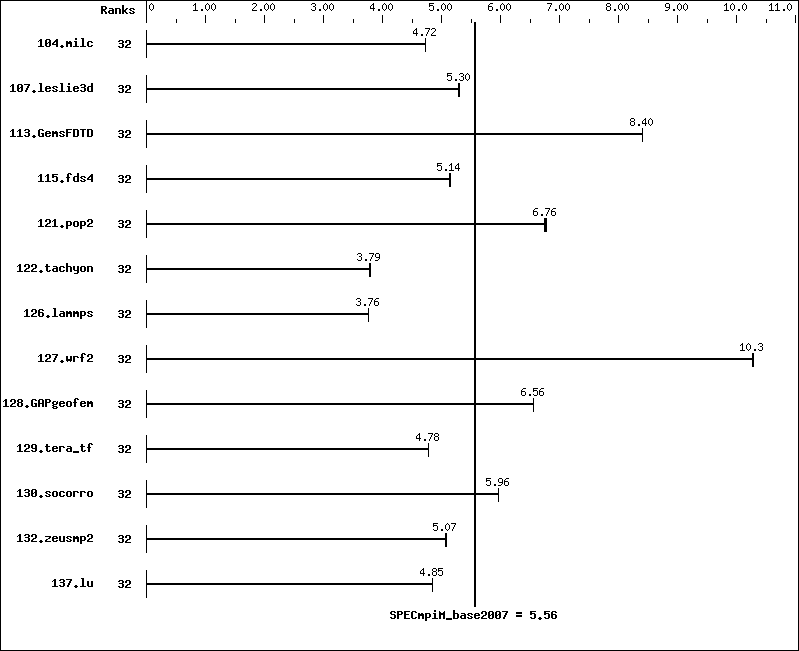

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 32 331 4.72 332 4.72 331 4.72
107.leslie3d 32 985 5.30 986 5.29 986 5.30
113.GemsFDTD 32 750 8.41 751 8.40 751 8.40
115.fds4 32 379 5.14 380 5.14 380 5.13
121.pop2 32 611 6.75 609 6.78 610 6.76
122.tachyon 32 739 3.78 739 3.79 738 3.79
126.lammps 32 775 3.76 776 3.76 776 3.76
127.wrf2 32 759 10.3  759 10.3  759 10.3
128.GAPgeofem 32 315 6.56 315 6.55 315 6.56
129.tera_tf 32 580 4.77 579 4.78 580 4.78
130.socorro 32 640 5.96 640 5.97 640 5.96
132.zeusmp2 32 612 5.07 611 5.08 612 5.07
137.lu 32 759 4.84 759 4.85 758 4.85
Hardware Summary
Type of System: Homogeneous
Compute Node: Discovery Node
Interconnects: IB Switch
Gigabit Ethernet
File Server Node: HOME
Total Compute Nodes: 1
Total Chips: 4
Total Cores: 32
Total Threads: 32
Total Memory: 256 GB
Base Ranks Run: 32
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 12.0.1.107 for Linux
C++ Compiler: Intel C++ Compiler 12.0.1.107 for Linux
Fortran Compiler: Intel Fortran Compiler 12.0.1.107 for Linux
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library 4.0.1.007 for Linux
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: Discovery Node

Hardware
Number of nodes: 1
Uses of the node: compute
Vendor: Quanta
Model: QSSC-S4R
CPU Name: Intel Xeon E7-8837
CPU(s) orderable: 1-4 chips
Chips enabled: 4
Cores enabled: 32
Cores per chip: 8
Threads per core: 1
CPU Characteristics: Intel Turbo Boost Technology disabled,
6.4 GT/s QPI
CPU MHz: 2660
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 24 MB I+D on chip per chip, 24 MB shared / 8 cores
Other Cache: None
Memory: 256 GB (dual-rank RDIMM 32x8-GB DDR3-1066 MHz)
Disk Subsystem: Seagate 400 GB ST3400755SS
Other Hardware: None
Adapter: Intel (ESB2) 82575EB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 2
Interconnect Type: Ethernet
Adapter: Mellanox MHQH29-XTC
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: InfiniBand 4x QDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel (ESB2) 82575EB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000
Adapter Firmware: None
Adapter: Mellanox MHQH29-XTC
Adapter Driver: OFED 1.4.2
Adapter Firmware: 2.7.000
Operating System: Red Hat EL 5.4, kernel 2.6.18-164
Local File System: Linux/ext2
Shared File System: NFS
System State: Multi-User
Other Software: PBS Pro 10.1

Node Description: HOME

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: Intel
Model: SSR212CC
CPU Name: Intel Xeon CPU
CPU(s) orderable: 2 chips
Chips enabled: 2
Cores enabled: 2
Cores per chip: 1
Threads per core: 1
CPU Characteristics: --
CPU MHz: 2800
Primary Cache: 12 KB I + 16 KB D on chip per chip
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 6 GB
Disk Subsystem: 10 disks, 320GB/disk, 2.6TB total
Other Hardware: None
Adapter: Intel 82546GB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Software
Adapter: Intel 82546GB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000
Adapter Firmware: N/A
Operating System: RedHat EL 4 Update 4
Local File System: None
Shared File System: NFS
System State: Multi-User
Other Software: None

Interconnect Description: IB Switch

Hardware
Vendor: Mellanox
Model: Mellanox MTS3600Q-1UNC
Switch Model: Mellanox MTS3600Q-1UNC
Number of Switches: 46
Number of Ports: 36
Data Rate: InfiniBand 4x QDR
Firmware: 7.1.000
Topology: Fat tree
Primary Use: MPI traffic

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: Force10 Networks
Model: Force10 S50, Force10 C300
Switch Model: Force10 S50, Force10 C300
Number of Switches: 15
Number of Ports: 48
Data Rate: 1Gbps Ethernet, 10Gbps Ethernet
Firmware: 8.2.1.0
Topology: Fat tree
Primary Use: Cluster File System

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec.hydra command was used to start MPI jobs.

 BIOS settings:
   Intel Turbo Boost Technology (Turbo)  : Disabled (default is Enabled)

 RAM configuration:
   Compute nodes have 2x8-GB RDIMM on each memory channel.

 Network:
   Forty six 36-port switches: 18 core switches and 28 leaf switches.
   Each leaf has one link to each core. Remaining 18 ports on 25 of 28 leafs
   are used for compute nodes. On the remaining 3 leafs the ports are used
   for FS nodes and other peripherals.

 Job placement:
   Each MPI job was assigned to a topologically compact set of nodes, i.e.
   the minimal needed number of leaf switches was used for each job: 1 switch
   for 32/64/96/128 ranks.

 PBS Pro was used for job submission. It has no impact on performance.
   Can be found at: http://www.altair.com

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX

Base Optimization Flags

C benchmarks:

 -O3   -xSSE4.1   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xSSE4.1   -no-prec-div

Fortran benchmarks:

 -O3   -xSSE4.1   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xSSE4.1   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel111_flags.20120720.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel111_flags.20120720.xml.
