SPEC® MPIL2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Intel Corporation

Endeavor (Intel Xeon X5670, 2.93 GHz,
DDR3-1333 MHz, SMT on, Turbo off)

SPECmpiL_peak2007 = Not Run

MPI2007 license: 13 Test date: Sep-2010
Test sponsor: Intel Corporation Hardware Availability: Mar-2010
Tested by: Pavel Shelepugin Software Availability: Nov-2010

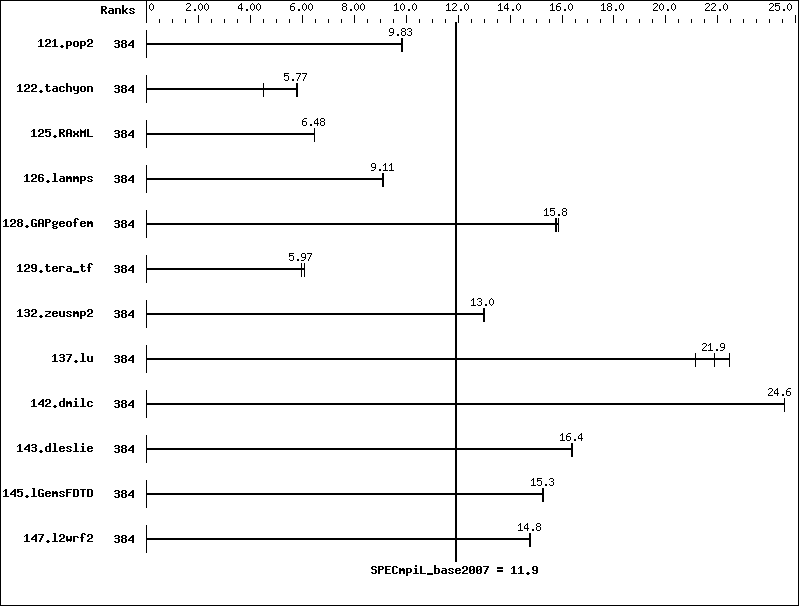

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2 384 397 9.80 396 9.83 395 9.84
122.tachyon 384 431 4.51 335 5.80 337 5.77
125.RAxML 384 451 6.47 451 6.48 450 6.48
126.lammps 384 270 9.11 269 9.13 270 9.11
128.GAPgeofem 384 376 15.8  374 15.9  376 15.8
129.tera_tf 384 184 5.97 185 5.95 181 6.07
132.zeusmp2 384 163 13.0  163 13.0  163 13.0
137.lu 384 199 21.1  192 21.9  187 22.4
142.dmilc 384 150 24.6  150 24.6  150 24.6
143.dleslie 384 189 16.4  190 16.3  189 16.4
145.lGemsFDTD 384 289 15.3  289 15.3  289 15.3
147.l2wrf2 384 555 14.8  555 14.8  556 14.8
Hardware Summary
Type of System: Homogeneous
Compute Node: Endeavor Node
Interconnects: IB Switch
Gigabit Ethernet
File Server Node: NFS
Total Compute Nodes: 32
Total Chips: 64
Total Cores: 384
Total Threads: 768
Total Memory: 768 GB
Base Ranks Run: 384
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 12.0.0.072 for Linux
C++ Compiler: Intel C++ Compiler 12.0.0.072 for Linux
Fortran Compiler: Intel Fortran Compiler 12.0.0.072 for Linux
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library 4.0.1.005 for Linux
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: Endeavor Node

Hardware
Number of nodes: 32
Uses of the node: compute
Vendor: Intel
Model: SR1600UR
CPU Name: Intel Xeon X5670
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 12
Cores per chip: 6
Threads per core: 2
CPU Characteristics: Intel Turbo Boost Technology disabled,
6.4 GT/s QPI, Hyper-Threading enabled
CPU MHz: 2934
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip, 12 MB shared / 6 cores
Other Cache: None
Memory: 24 GB (RDIMM 6x4-GB DDR3-1333 MHz)
Disk Subsystem: Seagate 400 GB ST3400755SS
Other Hardware: None
Adapter: Intel (ESB2) 82575EB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 2
Interconnect Type: Ethernet
Adapter: Mellanox MHQH29-XTC
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: InfiniBand 4x QDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel (ESB2) 82575EB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000
Adapter Firmware: None
Adapter: Mellanox MHQH29-XTC
Adapter Driver: OFED 1.4.2
Adapter Firmware: 2.7.000
Operating System: Red Hat EL 5.4, kernel 2.6.18-164
Local File System: Linux/ext2
Shared File System: NFS
System State: Multi-User
Other Software: PBS Pro 10.1

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: Intel
Model: S7000FC4UR
CPU Name: Intel Xeon CPU
CPU(s) orderable: 1-4 chips
Chips enabled: 4
Cores enabled: 16
Cores per chip: 4
Threads per core: 2
CPU Characteristics: --
CPU MHz: 2926
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 64 GB
Disk Subsystem: 8 disks, 500GB/disk, 2.7TB total
Other Hardware: None
Adapter: Intel 82563GB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Software
Adapter: Intel 82563GB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000e
Adapter Firmware: N/A
Operating System: RedHat EL 5 Update 4
Local File System: None
Shared File System: NFS
System State: Multi-User
Other Software: None

Interconnect Description: IB Switch

Hardware
Vendor: Mellanox
Model: Mellanox MTS3600Q-1UNC
Switch Model: Mellanox MTS3600Q-1UNC
Number of Switches: 46
Number of Ports: 36
Data Rate: InfiniBand 4x QDR
Firmware: 7.1.000
Topology: Fat tree
Primary Use: MPI traffic

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: Force10 Networks
Model: Force10 S50, Force10 C300
Switch Model: Force10 S50, Force10 C300
Number of Switches: 15
Number of Ports: 48
Data Rate: 1Gbps Ethernet
Firmware: 8.2.1.0
Topology: Fat tree
Primary Use: Cluster File System

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec.hydra command was used to start MPI jobs. To start a job by
   this command, the daemons are not required to be run beforehand.

 BIOS settings:
   Intel Hyper-Threading Technology (SMT): Enabled (default is Enabled)
   Intel Turbo Boost Technology (Turbo)  : Disabled (default is Enabled)

 RAM configuration:
   Compute nodes have 1x4-GB RDIMM on each memory channel.

 Network:
   Forty six 36-port switches: 18 core switches and 28 leaf switches.
   Each leaf has one link to each core. Remaining 18 ports on 25 of 28 leafs
   are used for compute nodes. On the remaining 3 leafs the ports are used
   for FS nodes and other peripherals.

 Job placement:
   Each MPI job was assigned to a topologically compact set of nodes, i.e.
   the minimal needed number of leaf switches was used for each job: 1 switch
   for 96/192 ranks, 2 switches for 384 ranks, 4 switches for 768 ranks,
   8 switches for 1536 ranks.

 PBS Pro was used for job submission. It has no impact on performance.
   Can be found at: http://www.altair.com

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK

Base Optimization Flags

C benchmarks:

 -O3   -xSSE4.2   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xSSE4.2   -no-prec-div

Fortran benchmarks:

 -O3   -xSSE4.2   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xSSE4.2   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/results/flags/EM64T_Intel111_flags.20100413.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/results/flags/EM64T_Intel111_flags.20100413.xml.
