SPEC® MPIL2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Intel Corporation

Endeavor (Intel Xeon X5670, 2.93 GHz,
DDR3-1333 MHz, SMT off, Turbo off)

SPECmpiL_peak2007 = Not Run

MPI2007 license: 13 Test date: Mar-2010
Test sponsor: Intel Corporation Hardware Availability: Mar-2010
Tested by: Pavel Shelepugin Software Availability: Feb-2010

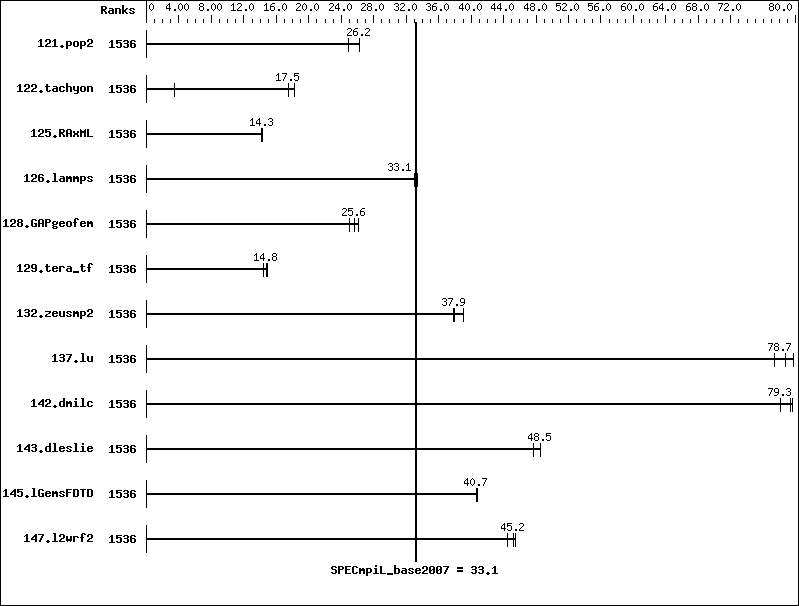

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2 1536 156   24.9  148   26.2 148   26.3
122.tachyon 1536 557   3.49 107   18.2 111   17.5
125.RAxML 1536 206   14.2  204   14.3 205   14.3
126.lammps 1536 74.3 33.1  74.4 33.0 73.7 33.3
128.GAPgeofem 1536 231   25.6  237   25.0 227   26.1
129.tera_tf 1536 73.7 14.9  76.3 14.4 74.4 14.8
132.zeusmp2 1536 54.2 39.1  56.0 37.8 55.9 37.9
137.lu 1536 54.3 77.4  52.7 79.7 53.4 78.7
142.dmilc 1536 46.3 79.6  46.5 79.3 47.1 78.1
143.dleslie 1536 63.8 48.6  64.9 47.7 63.9 48.5
145.lGemsFDTD 1536 108   40.7  109   40.6 108   40.8
147.l2wrf2 1536 180   45.5  181   45.2 184   44.5
Hardware Summary
Type of System: Homogeneous
Compute Node: Endeavor Node
Interconnects: IB Switch
Gigabit Ethernet
File Server Node: HOME
Total Compute Nodes: 128
Total Chips: 256
Total Cores: 1536
Total Threads: 1536
Total Memory: 3 TB
Base Ranks Run: 1536
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 11.1.064 for Linux
C++ Compiler: Intel C++ Compiler 11.1.064 for Linux
Fortran Compiler: Intel Fortran Compiler 11.1.064 for Linux
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: MVAPICH 1.1
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: Endeavor Node

Hardware
Number of nodes: 128
Uses of the node: compute
Vendor: Intel
Model: SR1600UR
CPU Name: Intel Xeon X5670
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 12
Cores per chip: 6
Threads per core: 1
CPU Characteristics: Intel Turbo Boost Technology disabled,
6.4 GT/s QPI, Hyper-Threading disabled
CPU MHz: 2934
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip, 12 MB shared / 6 cores
Other Cache: None
Memory: 24 GB (RDIMM 6x4-GB DDR3-1333 MHz)
Disk Subsystem: Seagate 400 GB ST3400755SS
Other Hardware: None
Adapter: Intel (ESB2) 82575EB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 2
Interconnect Type: Ethernet
Adapter: Mellanox MHQH29-XTC
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: InfiniBand 4x QDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel (ESB2) 82575EB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000
Adapter Firmware: None
Adapter: Mellanox MHQH29-XTC
Adapter Driver: OFED 1.4.2
Adapter Firmware: 2.7.000
Operating System: Red Hat EL 5.4, kernel 2.6.18-164
Local File System: Linux/ext2
Shared File System: NFS
System State: Multi-User
Other Software: PBS Pro 10.1

Node Description: HOME

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: Intel
Model: SSR212CC
CPU Name: Intel Xeon CPU
CPU(s) orderable: 2 chips
Chips enabled: 2
Cores enabled: 2
Cores per chip: 1
Threads per core: 1
CPU Characteristics: --
CPU MHz: 2800
Primary Cache: 12 KB I + 16 KB D on chip per chip
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 6 GB
Disk Subsystem: 10 disks, 320GB/disk, 2.6TB total
Other Hardware: None
Adapter: Intel 82546GB Dual-Port Gigabit
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Software
Adapter: Intel 82546GB Dual-Port Gigabit
Ethernet Controller
Adapter Driver: e1000
Adapter Firmware: N/A
Operating System: RedHat EL 4 Update 4
Local File System: None
Shared File System: NFS
System State: Multi-User
Other Software: None

Interconnect Description: IB Switch

Hardware
Vendor: Mellanox
Model: Mellanox MTS3600Q-1UNC
Switch Model: Mellanox MTS3600Q-1UNC
Number of Switches: 46
Number of Ports: 36
Data Rate: InfiniBand 4x QDR
Firmware: 7.1.000
Topology: Fat tree
Primary Use: MPI traffic

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: Force10 Networks
Model: Force10 S50, Force10 C300
Switch Model: Force10 S50, Force10 C300
Number of Switches: 15
Number of Ports: 48
Data Rate: 1Gbps Ethernet, 10Gbps Ethernet
Firmware: 8.2.1.0
Topology: Fat tree
Primary Use: Cluster File System

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpirun command was used to start MPI jobs.

 BIOS settings:
   Intel Hyper-Threading Technology (SMT): Disabled (default is Enabled)
   Intel Turbo Boost Technology (Turbo)  : Disabled (default is Enabled)

 RAM configuration:
   Compute nodes have 1x4-GB RDIMM on each memory channel.

 Network:
   Forty six 36-port switches: 18 core switches and 28 leaf switches.
   Each leaf has one link to each core. Remaining 18 ports on 25 of 28 leafs
   are used for compute nodes. On the remaining 3 leafs the ports are used
   for FS nodes and other peripherals.

 Job placement:
   Each MPI job was assigned to a topologically compact set of nodes, i.e.
   the minimal needed number of leaf switches was used for each job: 1 switch
   for 96/192 ranks, 2 switches for 384 ranks, 4 switches for 768 ranks,
   8 switches for 1536 ranks.

 PBS Pro was used for job submission. It has no impact on performance.
   Can be found at: http://www.altair.com

Base Compiler Invocation

C benchmarks:

 mpicc

C++ benchmarks:

126.lammps:  mpicxx

Fortran benchmarks:

 mpif90

Benchmarks using both Fortran and C:

 mpicc   mpif90

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK

Base Optimization Flags

C benchmarks:

 -O3   -xSSE4.2   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xSSE4.2   -no-prec-div

Fortran benchmarks:

 -O3   -xSSE4.2   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xSSE4.2   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel111_flags.20120720.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel111_flags.20120720.xml.
