| MPI2007 license: | 3440 | Test date: | Apr-2009 |
|---|---|---|---|
| Test sponsor: | Indiana university | Hardware Availability: | Sep-2008 |
| Tested by: | Scott Teige | Software Availability: | Jan-2009 |

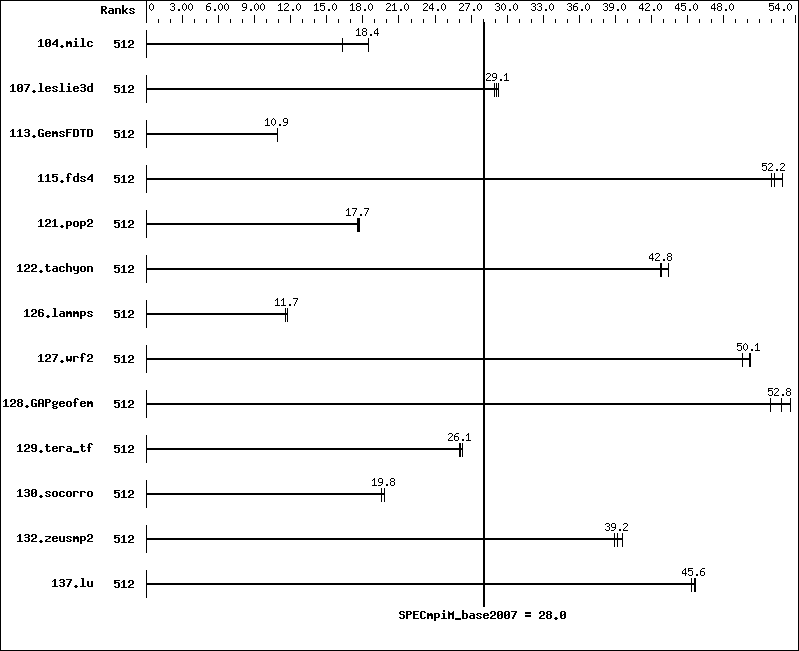

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Ranks | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 104.milc | 512 | 96.1 | 16.3 | 84.8 | 18.4 | 84.9 | 18.4 | |||||||
| 107.leslie3d | 512 | 178 | 29.3 | 180 | 28.9 | 180 | 29.1 | |||||||
| 113.GemsFDTD | 512 | 579 | 10.9 | 578 | 10.9 | 579 | 10.9 | |||||||
| 115.fds4 | 512 | 37.4 | 52.2 | 36.9 | 52.9 | 37.5 | 52.0 | |||||||
| 121.pop2 | 512 | 233 | 17.7 | 234 | 17.7 | 235 | 17.6 | |||||||
| 122.tachyon | 512 | 64.4 | 43.4 | 65.4 | 42.8 | 65.3 | 42.8 | |||||||
| 126.lammps | 512 | 248 | 11.7 | 248 | 11.7 | 251 | 11.6 | |||||||
| 127.wrf2 | 512 | 156 | 50.1 | 155 | 50.3 | 157 | 49.6 | |||||||
| 128.GAPgeofem | 512 | 38.5 | 53.6 | 39.1 | 52.8 | 39.8 | 51.9 | |||||||
| 129.tera_tf | 512 | 106 | 26.1 | 106 | 26.1 | 105 | 26.3 | |||||||
| 130.socorro | 512 | 193 | 19.8 | 193 | 19.8 | 195 | 19.6 | |||||||
| 132.zeusmp2 | 512 | 78.4 | 39.6 | 79.8 | 38.9 | 79.2 | 39.2 | |||||||
| 137.lu | 512 | 80.5 | 45.7 | 81.1 | 45.3 | 80.6 | 45.6 | |||||||
| Hardware Summary | |
|---|---|
| Type of System: | Homogeneous |
| Compute Node: | iDP node |
| Interconnects: | Gigabit Ethernet IB Switch |
| Total Compute Nodes: | 64 |
| Total Chips: | 128 |
| Total Cores: | 512 |
| Total Threads: | 512 |
| Total Memory: | 2 TB |
| Base Ranks Run: | 512 |
| Minimum Peak Ranks: | -- |
| Maximum Peak Ranks: | -- |
| Software Summary | |
|---|---|
| C Compiler: | Intel C++ Compiler 10.1 for Linux (10.1.013) |
| C++ Compiler: | Intel C++ Compiler 10.1 for Linux (10.1.013) |
| Fortran Compiler: | Intel Fortran Compiler 10.1 for Linux (10.1.013) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| MPI Library: | Intel MPI 3.1 |
| Other MPI Info: | None |
| Pre-processors: | No |
| Other Software: | OFED 1.4 compat-dapl-1.2.13 Intel MPI Library 3.1 for Linux Multi-Purpose Daemon (MPD) |
Node Description: iDP node
| Hardware | |
|---|---|
| Number of nodes: | 64 |
| Uses of the node: | compute |
| Vendor: | IBM |
| Model: | System x iDataPlex dx340 |
| CPU Name: | Intel Xeon L5420 |
| CPU(s) orderable: | 1-2 chips |
| Chips enabled: | 2 |
| Cores enabled: | 8 |
| Cores per chip: | 4 |
| Threads per core: | 1 |
| CPU Characteristics: | 1333 MHz FSB |
| CPU MHz: | 2500 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (FBDIMM 8x4-GB 667 MHz) |
| Disk Subsystem: | Western Digital 160 GB SATA WD160YS-23SHBO |
| Other Hardware: | None |
| Adapter: | Intel Corporation 80003ES2LAN Gigabit Ethernet Controller (Copper) (rev 01) |
| Number of Adapters: | 2 |
| Slot Type: | -- |
| Data Rate: | Gigabit Ethernet |
| Ports Used: | 1 |
| Interconnect Type: | Ethernet |
| Adapter: | Mellanox Technologies MT26418 [ConnectX IB DDR, PCIe 2.0 5GT/s] (rev a0) |
| Number of Adapters: | 1 |
| Slot Type: | PCIe x8 Gen2 |
| Data Rate: | InfiniBand 4x DDR |
| Ports Used: | 1 |
| Interconnect Type: | InfiniBand |
| Software | |
|---|---|
| Adapter: | Intel Corporation 80003ES2LAN Gigabit Ethernet Controller (Copper) (rev 01) |
| Adapter Driver: | OS default (e1000, v7.3.20-k2-NAPI) |
| Adapter Firmware: | 2.4-0 |
| Adapter: | Mellanox Technologies MT26418 [ConnectX IB DDR, PCIe 2.0 5GT/s] (rev a0) |
| Adapter Driver: | OFED 1.3.1 |
| Adapter Firmware: | 2.5.0 |
| Operating System: | Red Hat EL v4.7 2.6.9-67.0.22.EL_lustre.1.6.7custom |
| Local File System: | Linux/ext3 |
| Shared File System: | IBM N5500 NAS via NFSv3 |
| System State: | Multi-User |
| Other Software: | lustre 1.6.7 kernel patches |
Interconnect Description: Gigabit Ethernet
| Hardware | |
|---|---|
| Vendor: | ProCurve Networking |
| Model: | HP ProCurve Switch 5406zl Intelligent Edge J8697A |
| Switch Model: | HP ProCurve Switch 5406zl Intelligent Edge J8697A |
| Number of Switches: | 1 |
| Number of Ports: | 144 |
| Data Rate: | 1Gbps Ethernet |
| Firmware: | -- |
| Topology: | Single switch |
| Primary Use: | I/O traffic |
Interconnect Description: IB Switch
| Hardware | |
|---|---|
| Vendor: | Cisco |
| Model: | Cisco SFS 7024D |
| Switch Model: | Cisco SFS 7024D |
| Number of Switches: | 1 |
| Number of Ports: | 288 |
| Data Rate: | InfiniBand 4x DDR |
| Firmware: | 4.1.1.1.11 |
| Topology: | Single switch |
| Primary Use: | MPI traffic |
Submit Notes
The config file option 'submit' was used.
Base Compiler Invocation
C benchmarks:
| mpiicc |
C++ benchmarks:
| 126.lammps: | mpiicpc |
Fortran benchmarks:
| mpiifort |
Benchmarks using both Fortran and C:
| mpiicc mpiifort |
Base Portability Flags
| 121.pop2: | -DSPEC_MPI_CASE_FLAG |
| 126.lammps: | -DMPICH_IGNORE_CXX_SEEK |
| 127.wrf2: | -DSPEC_MPI_LINUX -DSPEC_MPI_CASE_FLAG |
