SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

IBM

iDP (Intel Xeon L5420, 2.50 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 3440 Test date: Apr-2009
Test sponsor: Indiana university Hardware Availability: Sep-2008
Tested by: Scott Teige Software Availability: Jan-2009

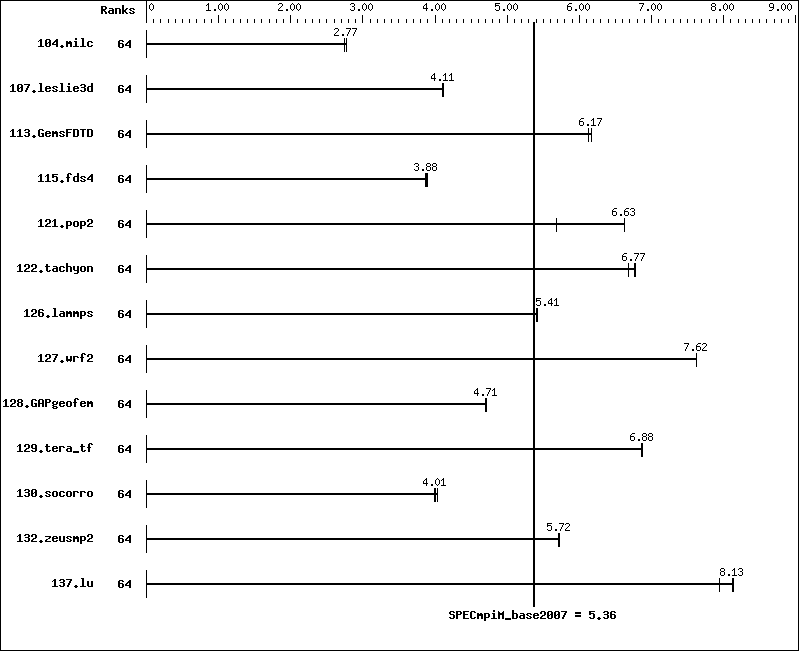

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 64 571 2.74 565 2.77 565 2.77
107.leslie3d 64 1270 4.11 1269 4.11 1271 4.11
113.GemsFDTD 64 1030 6.12 1022 6.17 1023 6.17
115.fds4 64 503 3.88 504 3.87 501 3.89
121.pop2 64 726 5.69 623 6.63 623 6.63
122.tachyon 64 418 6.68 413 6.77 413 6.77
126.lammps 64 538 5.41 539 5.41 539 5.41
127.wrf2 64 1022 7.63 1023 7.62 1023 7.62
128.GAPgeofem 64 439 4.70 438 4.71 438 4.71
129.tera_tf 64 402 6.88 402 6.88 403 6.86
130.socorro 64 945 4.04 955 4.00 953 4.01
132.zeusmp2 64 542 5.72 544 5.71 542 5.73
137.lu 64 452 8.13 463 7.95 452 8.13
Hardware Summary
Type of System: Homogeneous
Compute Node: iDP node
Interconnects: Gigabit Ethernet
IB Switch
Total Compute Nodes: 8
Total Chips: 16
Total Cores: 64
Total Threads: 64
Total Memory: 256 GB
Base Ranks Run: 64
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 10.1 for Linux (10.1.013)
C++ Compiler: Intel C++ Compiler 10.1 for Linux (10.1.013)
Fortran Compiler: Intel Fortran Compiler 10.1 for Linux (10.1.013)
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI 3.1
Other MPI Info: None
Pre-processors: No
Other Software: OFED 1.4 compat-dapl-1.2.13
Intel MPI Library 3.1 for Linux Multi-Purpose
Daemon (MPD)

Node Description: iDP node

Hardware
Number of nodes: 8
Uses of the node: compute
Vendor: IBM
Model: System x iDataPlex dx340
CPU Name: Intel Xeon L5420
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: 1333 MHz FSB
CPU MHz: 2500
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 32 GB (FBDIMM 8x4-GB 667 MHz)
Disk Subsystem: Western Digital 160 GB SATA WD160YS-23SHBO
Other Hardware: None
Adapter: Intel Corporation 80003ES2LAN Gigabit Ethernet
Controller (Copper) (rev 01)
Number of Adapters: 2
Slot Type: --
Data Rate: Gigabit Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Adapter: Mellanox Technologies MT26418 [ConnectX IB DDR,
PCIe 2.0 5GT/s] (rev a0)
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel Corporation 80003ES2LAN Gigabit Ethernet
Controller (Copper) (rev 01)
Adapter Driver: OS default (e1000, v7.3.20-k2-NAPI)
Adapter Firmware: 2.4-0
Adapter: Mellanox Technologies MT26418 [ConnectX IB DDR,
PCIe 2.0 5GT/s] (rev a0)
Adapter Driver: OFED 1.3.1
Adapter Firmware: 2.5.0
Operating System: Red Hat EL v4.7
2.6.9-67.0.22.EL_lustre.1.6.7custom
Local File System: Linux/ext3
Shared File System: IBM N5500 NAS via NFSv3
System State: Multi-User
Other Software: lustre 1.6.7 kernel patches

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: ProCurve Networking
Model: HP ProCurve Switch 5406zl Intelligent Edge J8697A
Switch Model: HP ProCurve Switch 5406zl Intelligent Edge J8697A
Number of Switches: 1
Number of Ports: 144
Data Rate: 1Gbps Ethernet
Firmware: --
Topology: Single switch
Primary Use: I/O traffic

Interconnect Description: IB Switch

Hardware
Vendor: Cisco
Model: Cisco SFS 7024D
Switch Model: Cisco SFS 7024D
Number of Switches: 1
Number of Ports: 288
Data Rate: InfiniBand 4x DDR
Firmware: 4.1.1.1.11
Topology: Single switch
Primary Use: MPI traffic

Submit Notes

The config file option 'submit' was used.

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_LINUX   -DSPEC_MPI_CASE_FLAG

Base Optimization Flags

C benchmarks:

 -O3   -xT   -ipo   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xT   -ipo   -no-prec-div

Fortran benchmarks:

 -O3   -xT   -ipo   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xT   -ipo   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.xml.
