SPEC® MPIM2007 Result

Hewlett-Packard Company

HP ProLiant DL160 G5

SPECmpiM_peak2007 = Not Run

SPECmpiM_base2007 = 6.28

MPI2007 license:	1	Test date:	Nov-2008
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Jun-2008
Tested by:	HP Richardson	Software Availability:	Jan-2009

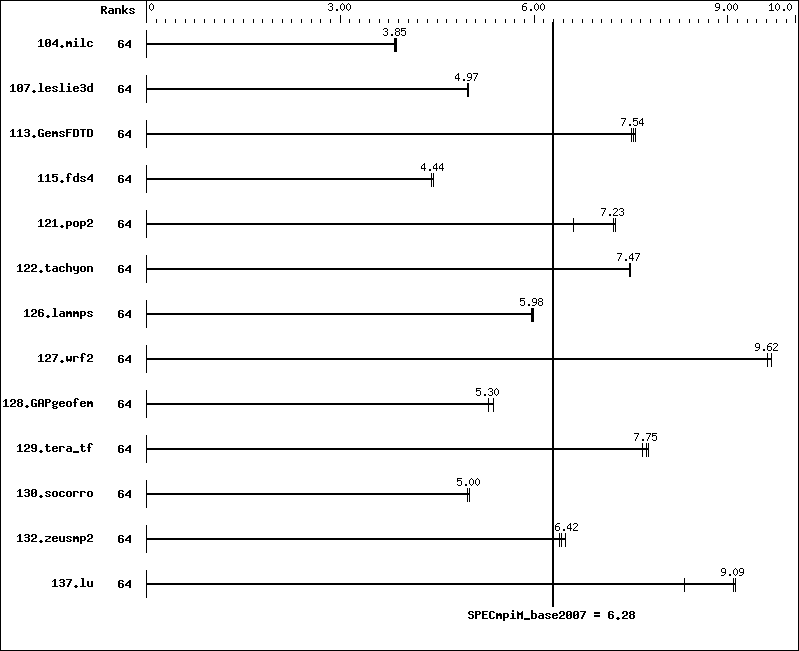

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	64	405	3.87	407	3.84	407	3.85
107.leslie3d	64	1049	4.97	1046	4.99	1049	4.97
113.GemsFDTD	64	840	7.51	833	7.57	837	7.54
115.fds4	64	440	4.44	439	4.44	443	4.41
121.pop2	64	571	7.23	624	6.62	568	7.26
122.tachyon	64	374	7.47	374	7.47	373	7.49
126.lammps	64	486	6.00	489	5.96	487	5.98
127.wrf2	64	806	9.67	810	9.62	811	9.61
128.GAPgeofem	64	391	5.29	390	5.30	385	5.37
129.tera_tf	64	360	7.68	356	7.77	357	7.75
130.socorro	64	767	4.97	763	5.00	763	5.00
132.zeusmp2	64	486	6.39	479	6.48	483	6.42
137.lu	64	404	9.09	441	8.33	403	9.12

Hardware Summary
Type of System:	Homogeneous
Compute Nodes:	DL160 G5 Compute Node DL160 G5 Head Node
Interconnects:	Gigabit Ethernet Switch InfiniBand Switch
File Server Node:	DL160 G5 Head Node
Head Node:	DL160 G5 Head Node
Total Compute Nodes:	8
Total Chips:	16
Total Cores:	64
Total Threads:	64
Total Memory:	128 GB
Base Ranks Run:	64
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Compiler 10.1 for Linux (10.1.018)
C++ Compiler:	Intel C++ Compiler 10.1 for Linux (10.1.018)
Fortran Compiler:	Intel Fortran Compiler 10.1 for Linux (10.1.018)
Base Pointers:	64-bit
Peak Pointers:	64-bit
MPI Library:	HP-MPI v2.3
Other MPI Info:	--
Pre-processors:	No
Other Software:	--

Node Description: DL160 G5 Compute Node

Hardware
Number of nodes:	7
Uses of the node:	compute
Vendor:	Hewlett-Packard Company
Model:	DL160 G5
CPU Name:	Intel Xeon CPU E5462
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	8
Cores per chip:	4
Threads per core:	1
CPU Characteristics:	1600 MHz FSB
CPU MHz:	2800
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (FBDIMM 8x2-GB 667 Mtf/s)
Disk Subsystem:	2x146GB 15k RPM SAS (RAID 0 mode)
Other Hardware:	HP Smart Array E200 Raid Controller
Adapter:	NetXtreme BCM5722 Gigabit Ethernet
Number of Adapters:	1
Slot Type:	Builtin PCI-Express
Data Rate:	1 Gb/s Ethernet
Ports Used:	1
Interconnect Type:	Ethernet
Adapter:	HP 448397-B21 (4x DDR)
Number of Adapters:	1
Slot Type:	PCIe x16 Gen2
Data Rate:	InfiniBand 4x DDR
Ports Used:	1
Interconnect Type:	InfiniBand

Software
Adapter:	NetXtreme BCM5722 Gigabit Ethernet
Adapter Driver:	tg3 version 3.86b
Adapter Firmware:	5722-v3.07, ASFIPMI v6.02
Adapter:	HP 448397-B21 (4x DDR)
Adapter Driver:	OFED 1.3
Adapter Firmware:	2.5.0
Operating System:	SLES 10 update 1
Local File System:	Linux/ext3
Shared File System:	NFS
System State:	Multi-User
Other Software:	none

Node Description: DL160 G5 Head Node

Hardware
Number of nodes:	1
Uses of the node:	head, fileserver, compute
Vendor:	Hewlett-Packard Company
Model:	DL160 G5
CPU Name:	Intel Xeon CPU E5462
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	8
Cores per chip:	4
Threads per core:	1
CPU Characteristics:	1600 MHz FSB
CPU MHz:	2800
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (FBDIMM 8x2-GB 667 Mtf/s)
Disk Subsystem:	2x146GB 15k RPM SAS (RAID 0 mode)
Other Hardware:	HP Smart Array E200 Raid Controller
Adapter:	NetXtreme BCM5722 Gigabit Ethernet
Number of Adapters:	1
Slot Type:	Builtin PCI-Express
Data Rate:	1 Gb/s Ethernet
Ports Used:	1
Interconnect Type:	Ethernet
Adapter:	HP 448397-B21 (4x DDR)
Number of Adapters:	1
Slot Type:	PCIe x16 Gen2
Data Rate:	InfiniBand 4x DDR
Ports Used:	1
Interconnect Type:	InfiniBand

Software
Adapter:	NetXtreme BCM5722 Gigabit Ethernet
Adapter Driver:	tg3 version 3.86b
Adapter Firmware:	5722-v3.07, ASFIPMI v6.02
Adapter:	HP 448397-B21 (4x DDR)
Adapter Driver:	OFED 1.3
Adapter Firmware:	2.5.0
Operating System:	SLES 10 update 1
Local File System:	Linux/ext3
Shared File System:	NFS
System State:	Multi-User
Other Software:	none

Interconnect Description: Gigabit Ethernet Switch

Hardware
Vendor:	Hewlett-Packard Company
Model:	ProCurve J8693A Switch 3500yl-48G
Switch Model:	ProCurve J8693A Switch 3500yl-48G
Number of Switches:	1
Number of Ports:	48
Data Rate:	1Gbps Ethernet
Firmware:	K.12.16
Topology:	single switch
Primary Use:	Cluster File System

Interconnect Description: InfiniBand Switch

Hardware
Vendor:	Hewlett-Packard Company
Model:	HP 445825-B21 (4x DDR)
Switch Model:	HP 445825-B21
Number of Switches:	1
Number of Ports:	144
Data Rate:	InfiniBand 4x DDR
Firmware:	4.1.1.1.11
Topology:	single switch
Primary Use:	MPI traffic

General Notes

Required alternate sources:
   129.tera_tf: fixbuffer
Optional alternate sources:
   104.milc: calloc
   113.GemsFDTD: maxprocandstop

% cat submit.sh
#!/bin/bash
ulimit -s 326780
exec $*
%

BASE PORTABILITY FLAG NOTICE:
	130.socorro: Discontinue use of -DSPEC_EIGHT_BYTE_LONG because it
                 doesn't appear in the source code.
